CRANKSHAFT & PISTON

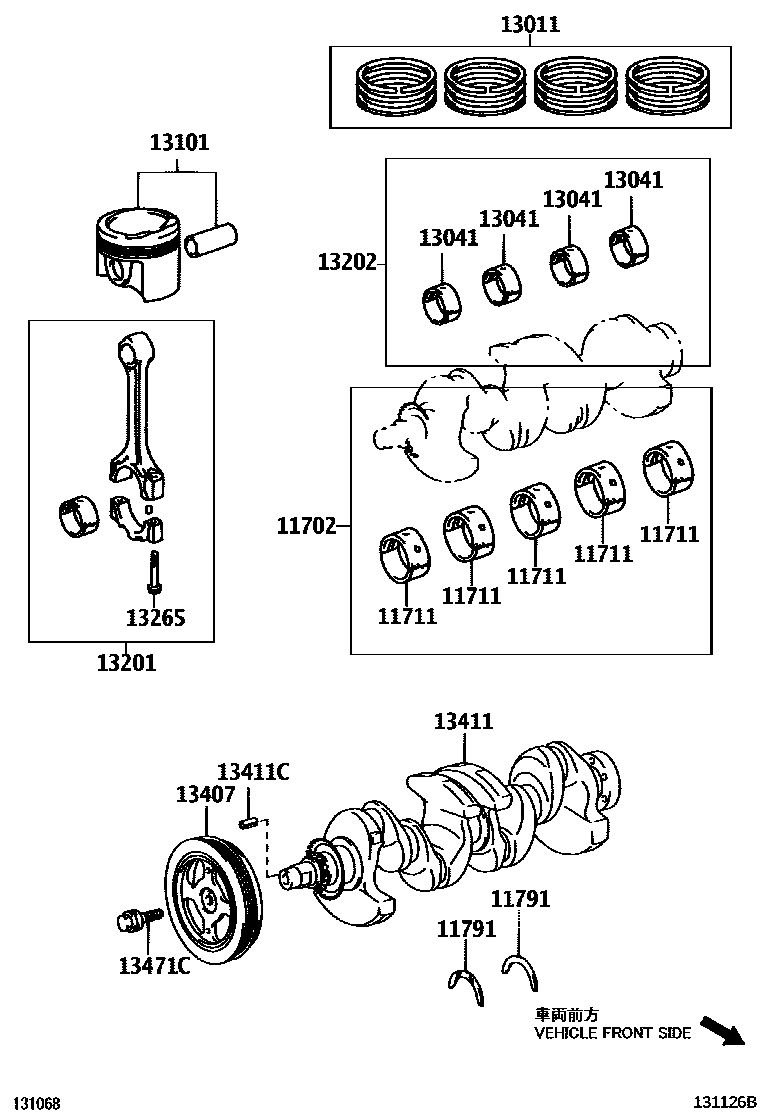

Parts diagram

11702BEARING SET, CRANKSHAFT

main11704-21031i200910

11711BEARING, CRANKSHAFT

main11701-21031-01×5i200812-200910

main11701-21031-02×5i200812-200910

main11701-21031-03×5i200812-200910

main11701-21031-04×5i200812-200910

main11701-37010-01×5i200610-200702

main11701-37010-02×5i200610-200702

main11701-37010-03×5i200610-200702

main11701-37010-04×5i200610-200702

main11701-37020-01×5i200910-201208

main11701-37020-02×5i200702-200812

main11701-37020-03×5i200702-200812

main11701-37020-04×5i200702-200812

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-22020×2i200812-200910

main11792-22020×2i200910-201208

main11793-22020×2i200910-201208

13011RING SET, PISTON

main13011-21090i200610-200806

main13011-21091i200910-201208

main13011-37090i200812-200910

13041BEARING, CONNECTING ROD

main13041-21022-01×4i200812-200910

main13041-21022-02×4i200812-200910

main13041-21022-03×4i200610-200812

main13041-37010-01×4i200910

main13041-37010-02×4i200910

main13041-37010-03×4i200610-200812

13101PISTON SUB-ASSY, W/PIN

main13101-21120×4i200610-200812

main13101-37071×4i200812-200910

main13101-37100×4i200910

13201ROD SUB-ASSY, CONNECTING

main13201-09A30×4i201101-201208

main13201-29735×4i200610-200812

main13201-39185×4i200812-200910

13202BEARING SET, CONNECTING ROD

main13204-21022i200812-200910

13265BOLT, CONNECTING ROD

main13265-21020×8i200610-200812

main13265-22020×8i200610-200812

13407DAMPER SUB-ASSY, CRANKSHAFT

main13407-21031i200812-200910

main13407-21032i201205-201208

13411CRANKSHAFT

main13401-0T060i201101-201208

main13401-21020i200610-200812

main13401-37020i200910-201101

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90254-03025i200610-200812

13471PULLEY, CRANKSHAFT

main13470-37020i200610-200812

main13470-37050i201203-201208

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-12345i200812-200910

main90119-14106i200910-201208

14 parts on this diagram · 2 diagrams in section
