CYLINDER BLOCK

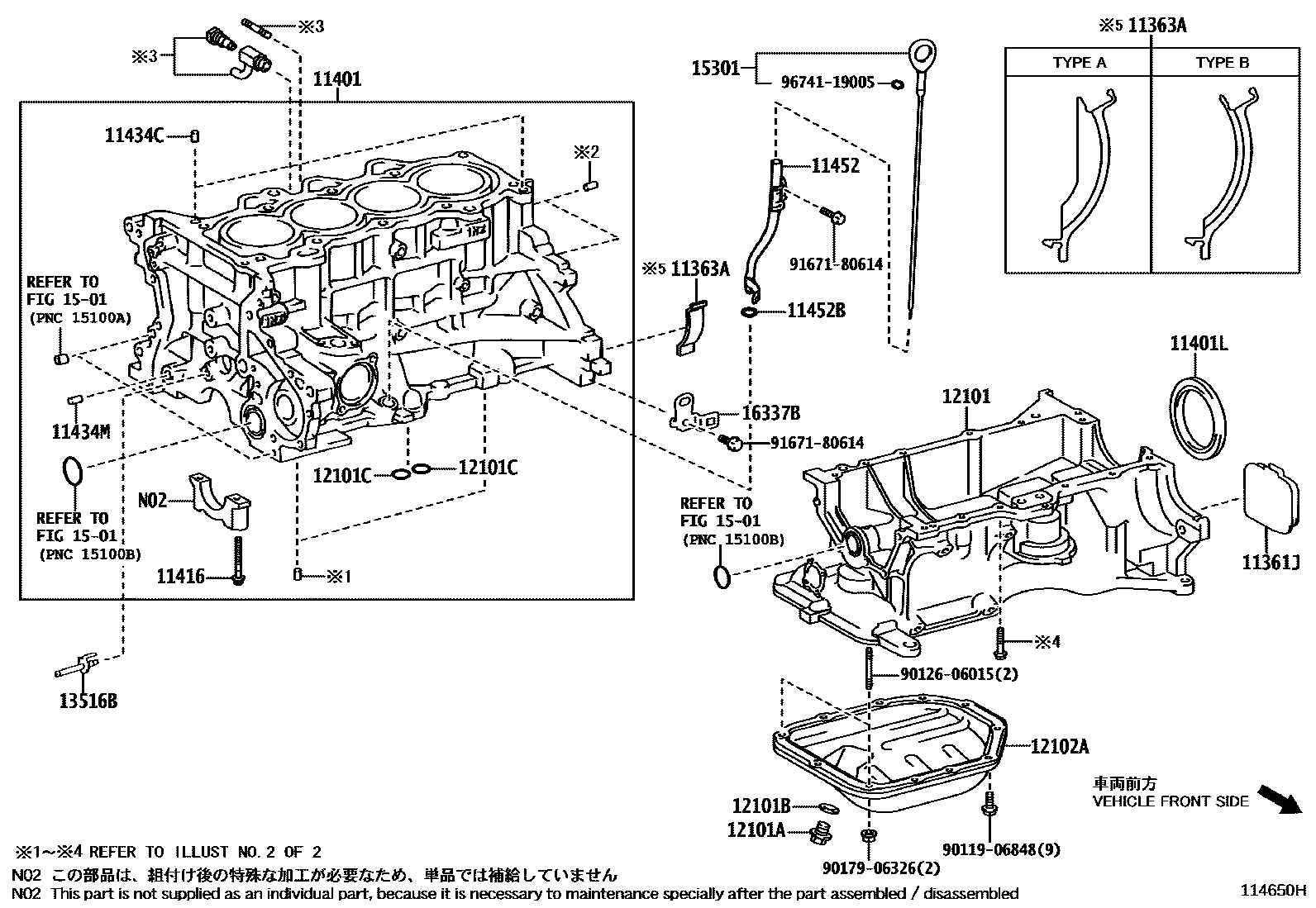

Parts diagram

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-21011i200610-200812

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-21010i200812-200910

main11363-33010i201201

11401BLOCK SUB-ASSY, CYLINDER

main11401-29865i200610-200812

main11401-29866i200812-200910

main11401-29867i201111-201204

main11401-29868i201204-201208

main11410-09455i201101

main11410-39025i200610-200801

main11410-39055i200812-200904

main11410-39057i201009

main11410-39058i200910-201008

11401LSEAL, ENGINE REAR OIL

main90311-75016i200610-200812

main90311-75019i201201-201208

main90311-76002i200812-200910

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02125×10i200610-200812

main90910-02163×10i200812-200910

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-04097×2i200610-200812

main90250-08120×2i200812-200910

11434MPIN, STRAIGHT(FOR CHAIN TENSIONER)

main90250-10030i200610-200812

11452GUIDE, OIL LEVEL GAGE

main11452-21030i200812-200910

main11452-37010i200910-201101

main11452-37011i201101

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i200812-200910

12101PAN SUB-ASSY, OIL

main12111-21033i200610-200812

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i200610-200812

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i200610-200812

12101CRING, O(FOR OIL PAN)

main96722-24020×2i200812-200910

12102APAN SUB-ASSY, OIL, NO.2

main12102-21010i200910

main12102-37010i200910-201208

13516BJET, OIL

main13516-21010i200910

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15301GAGE SUB-ASSY, OIL LEVEL

main15301-21030i200610-200709

main15301-21040i200910-201203

main15301-21060i201203

main15301-37010i200910-201208

16337BSTAY, WATER OUTLET, NO.1

main16337-21010i200610-200812

9011906848

main90119-06848

9012606015

main90126-06015

9017906326

main90179-06326

9167180614

main91671-80614

9674119005

main96741-19005

23 parts on this diagram · 5 diagrams in section
