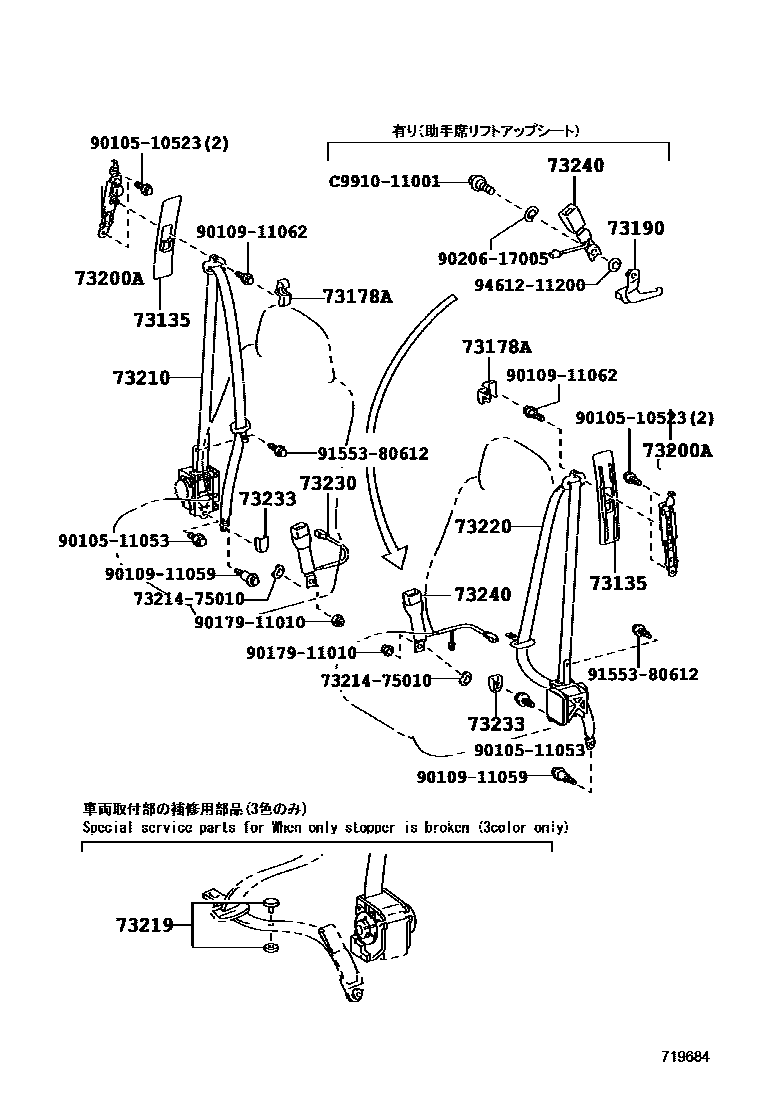

SEAT BELT & CHILD RESTRAINT SEAT

0001 1������� 0002 1�� NO.1 ��� 0004 1�� NO.1 ��� 0005 1�� NO.2 ���

73135COVER, SHOULDER BELT ANCHORAGE PLATE

main73135-52020-B0×2iZGE20,22,25..CBU200903-201204

GRAY,TRIM1#

main73135-52020-E0×2iZGE20,21,25..CBU200903-201204

GREGE,TRIM4#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-52020-B0×2iZGE20,22,25..CBU200903-201204

GRAY,TRIM1#

main73178-52020-E1×2iZGE20,21,25..CBU200903-201204

GREGE,TRIM4#

73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-52050-B1×2iZGE20,22,25..CBU200903-201204

GRAY,TRIM1#

main73200-52050-E0×2iZGE20,25..CBU201204-201711

GREGE,TRIM4#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-68030-C0iZGE20,22,25..CBU200903-200908

BLACK,TRIM1#

main73210-68030-E1iZGE20,21,25..CBU200903-200908

GREGE,TRIM4#

main73210-68031-C0iZGE20,22,25..CBU200909-201002

main73210-68031-E1iZGE20,21,25..CBU200909-201002

main73210-68032-C0iZGE20,22,25..CBU201002-201204

main73210-68032-E1iZGE20,21,25..CBU201002-201204

main73210-68040-C0iZGE2#..(18A,18S,18X,20Z)..CBU201204-201711

BLACK,TRIM1#

main73210-68040-E0iZGE20,25..CBU201204-201711

GREGE,TRIM4#

73219STOPPER, TONGUE PLATE

main73219-33010iZGE2#..CBU200903-201204

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-68030-C0iZGE20,22,25..CBU200903-200908

BLACK,TRIM1#

main73220-68030-E1iZGE20,21,25..CBU200903-200908

GREGE,TRIM4#

main73220-68031-C0iZGE20,22,25..CBU200909-201002

main73220-68031-E1iZGE20,21,25..CBU200909-201002

main73220-68032-C0iZGE20,22,25..CBU201002-201204

main73220-68032-E1iZGE20,21,25..CBU201002-201204

main73220-68040-C0iZGE2#..(18A,18S,18X,20Z)..CBU201204-201711

BLACK,TRIM1#

main73220-68040-E0iZGE20,25..CBU201204-201711

GREGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-68030-C0iZGE20,22,25..CBU; ZGE20,25..18X..CBU200903-201204

main73230-68030-E0iZGE20,25..18X..CBU; ZGE20,25..CBU201204-201711

73233COVER, LAP BELT OUTER ANCHOR

main73233-52010-B1×2iZGE20,25..CBU; ZGE22..CBU200903-201204

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main73233-52010-E3×2iZGE21200903-201204

GREGE,TRIM4#

main73233-60020-C0×2iZGE20,25..(18A,18S,18X)..CBU; ZGE22201204-201610

BLACK,TRIM1#; BLACK,TRIM1#,4#

main73233-60020-C1×2iZGE2#..(18S,20Z)..CBU; ZGE20,25..(18A,18X)..CBU201610-201711

BLACK,TRIM1#; BLACK,TRIM1#,4#

main73233-60020-E1×2iZGE20,25..18G201204-201711

GREGE,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-68050-C0iZGE20,22,25..CBU; ZGE20,25..18X..CBU200903-201204

main73230-68050-E0iZGE20,21,25..CBU; ZGE20,25..18X..CBU200903-201204

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511053

main90105-11053

9010911059

main90109-11059

9010911062

main90109-11062

9017911010

main90179-11010

9020617005

main90206-17005

9155380612

main91553-80612

9461211200

main94612-11200

C991011001

mainC9910-11001

20 parts on this diagram · 4 diagrams in section
