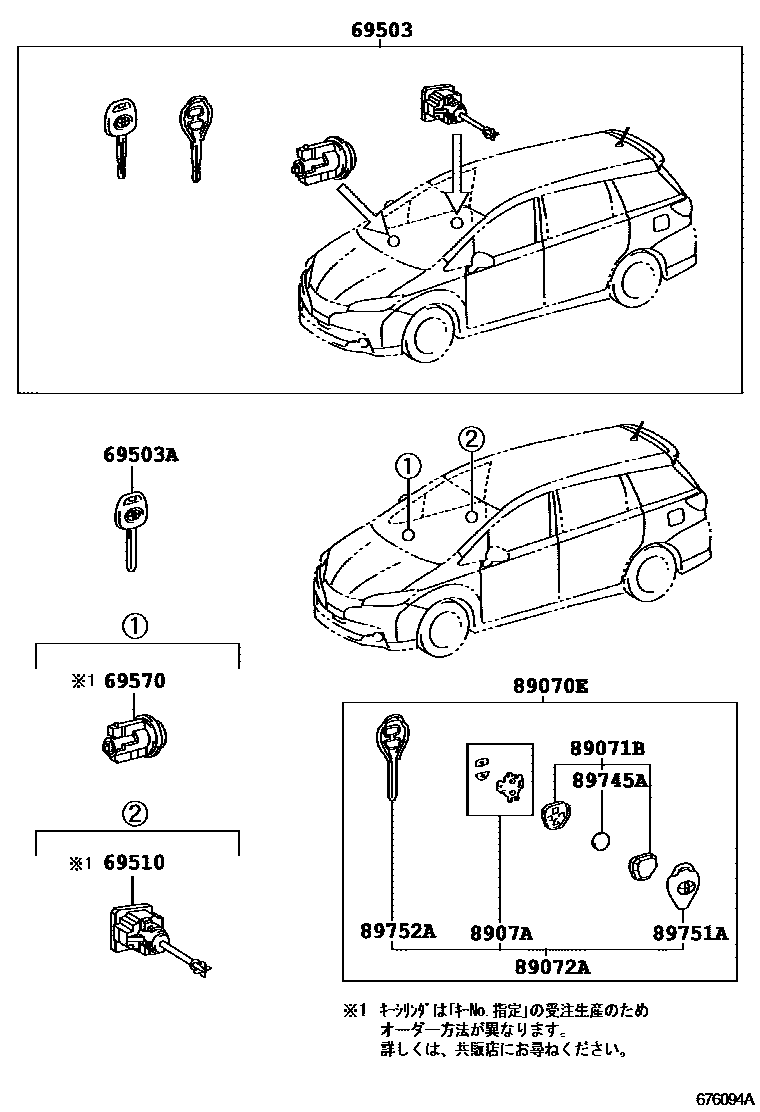

LOCK CYLINDER SET

0001 1��(��������) 0002 1��(��������) 0003 1��(��������)

69503CYLINDER SET, LOCK

main69005-68080supersedes 69005-68190iZGE2#..18G,20Z; ZGE20,25..(18A,18S,18X)..CBU201204

69503AKEY, BLANK

main90999-00199iZGE20,25..CBU200903-201204

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-68010iZGE20,25..CBU200903-201204

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-22130iZGE20,25..CBU200903-201204

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-68130iZGE20,25..CBU; ZGE20..18X..CBU200903-201204

main89070-68180iZGE20,25..(18A,18S,18X)..CBU201204

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-52240iZGE20,25..(18A,18S,18X)..CBU201204

main89071-68030iZGE20,25..CBU; ZGE20..18X..CBU200903-201204

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-52420iZGE20,25..CBU; ZGE20..18X..CBU200903-201204

main89072-68050iZGE20,25..(18A,18S,18X)..CBU201204

8907ASWITCH SET, TRANSMITTER

main8907A-52010iZGE20,25..(18A,18S,18X)..CBU201204

main8907A-71010iZGE20,25..CBU; ZGE20..18X..CBU200903-201204

89745ABATTERY, TRANSMITTER

main89745-52020supersedes 89745-71010iZGE20,25..CBU; ZGE21,22..CBU200903-201204

main89745-71010iZGE20,25..CBU; ZGE20..18X..CBU200903-201204

89751ACOVER, TRANSMITTER HOUSING

main89751-42090iZGE20,25..(18A,18S,18X)..CBU201204

main89751-52140iZGE20,25..CBU; ZGE20..18X..CBU200903-201204

89752ACASE, TRANSMITTER HOUSING

main89752-12080iZGE20,25..CBU; ZGE20..18X..CBU200903-201204

main89752-68080iZGE20,25..(18A,18S,18X)..CBU201204

11 parts on this diagram · 3 diagrams in section
