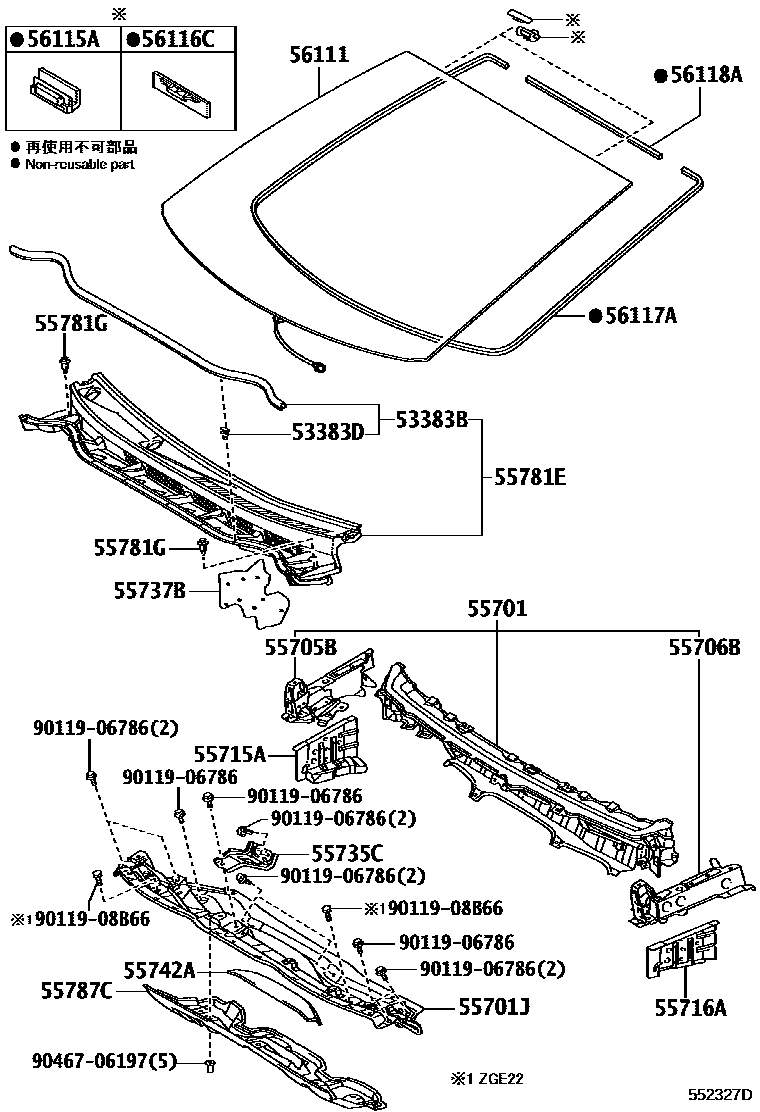

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-68020iZGE2#..CBU200903-201204

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150×12iZGE2#..CBU200903-201204

55701PANEL SUB-ASSY, COWL

main55700-68020iZGE2#..CBU200903-201204

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-68020iZGE2#..CBU200903-201204

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-68020iZGE2#..CBU200903-201204

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-68020iZGE2#..CBU200903-201204

55715ABRACE, COWL TOP TO APRON, RH

main55715-68020iZGE2#..CBU200903-201204

55716ABRACE, COWL TOP TO APRON, LH

main55716-68020iZGE2#..CBU200903-201204

55735CREINFORCEMENT, COWL BODY MOUNTING, RH

main55735-68020iZGE2#..CBU201204

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-68020iZGE2#..CBU200903-201204

55742ASHEET, COWL TOP INSULATOR

main55742-68020iZGE2#..CBU200903-201204

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-68040supersedes 55708-68030iZGE2#..CBU201204

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C0×2iZGE2#..CBU200903-201204

BLACK

main90467-07076-C7×2iZGE2#..CBU201703-201711

BLACK

55787CINSULATOR, COWL TOP PANEL, NO.1

main55787-68020iZGE2#..CBU200903-201204

56111GLASS, WINDSHIELD

main56101-68070supersedes 56101-68060iZGE2#..18G,20Z201204

main56101-68080supersedes 56101-68050iZGE20,25..CBU200903-201204

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2iZGE2#..CBU200903-201204

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iZGE2#..CBU200903-201204

56117ADAM, WINDOW GLASS ADHESIVE

main56117-68020iZGE2#..CBU200903-201204

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-68020iZGE2#..CBU200903-201204

9011906786

main90119-06786

9011908B66

main90119-08B66

9046706197

main90467-06197

22 parts on this diagram · 1 diagram in section
