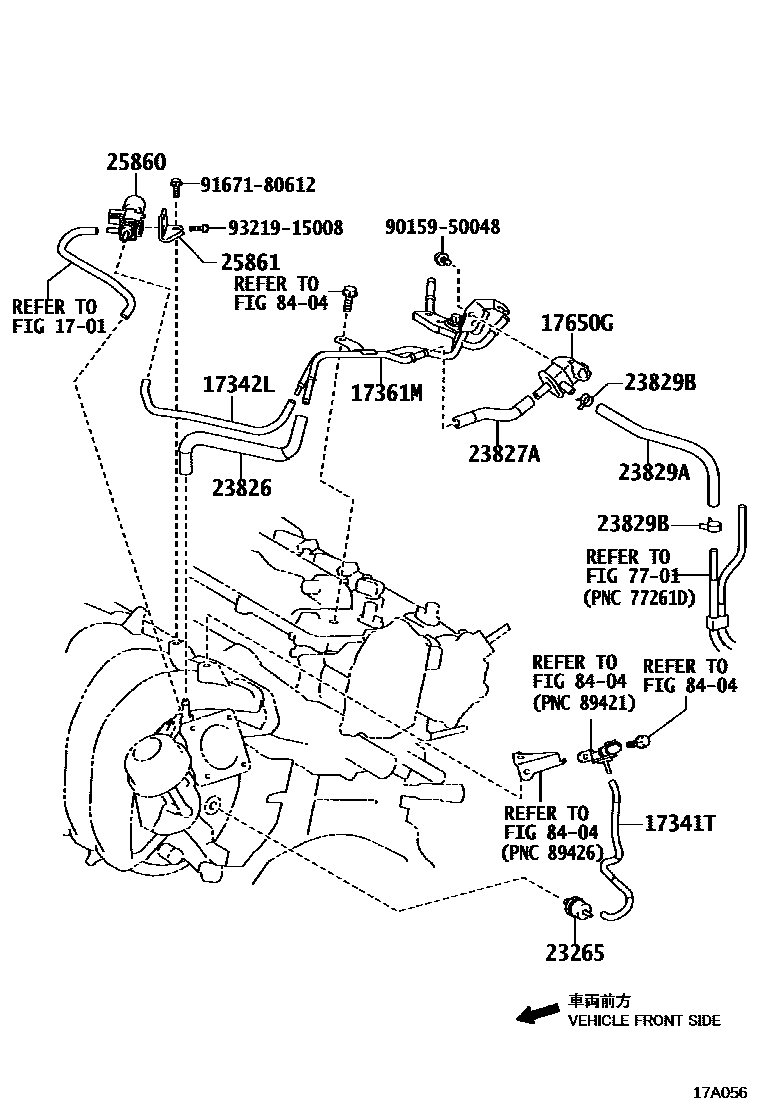

VACUUM PIPING

0001 1 0002 1

1701MANIFOLD

→ Go to FIG 17-01

17341THOSE, AIR, NO.1

main17341-37060i2ZRFAE,3ZRFAE..ZGE2#..CBU200903-201204

main17341-37070i2ZRFAE,3ZRFAE..ZGE2#..CBU201204

17342LHOSE, AIR, NO.2

main17342-37050i2ZRFAE,3ZRFAE..ZGE2#..CBU200903-201204

17361MTUBE, AIR

main17361-37020i2ZRFAE,3ZRFAE..ZGE2#..CBU200903-201204

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12276i2ZRFAE,3ZRFAE..ZGE2#..CBU200903-201204

23265FILTER, GAS, NO.1

main90917-11022i2ZRFAE,3ZRFAE..ZGE2#..CBU200903-201204

main90917-11038i2ZRFAE,3ZRFAE..ZGE2#..CBU201204

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-37050i2ZRFAE,3ZRFAE..ZGE2#..CBU200903-201204

main23826-37220i2ZRFAE,3ZRFAE..ZGE2#..CBU201204

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-37030i2ZRFAE,3ZRFAE..ZGE2#..CBU200903-201204

23829AHOSE, FUEL VAPOR FEED

main23826-37120i2ZRFAE,3ZRFAE..ZGE2#..CBU200903-201204

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96132-51100×2i2ZRFAE,3ZRFAE..ZGE2#..CBU200903-201204

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main90910-12281i2ZRFAE,3ZRFAE..ZGE2#..CBU200903-201204

25861BRACKET, VACUUM SWITCHING VALVE

main25861-37010i2ZRFAE,3ZRFAE..ZGE2#..CBU200903-201204

main25861-37030i2ZRFAE,3ZRFAE..ZGE2#..CBU201204

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9015950048

main90159-50048

9167180612

main91671-80612

9321915008

main93219-15008

17 parts on this diagram · 2 diagrams in section
