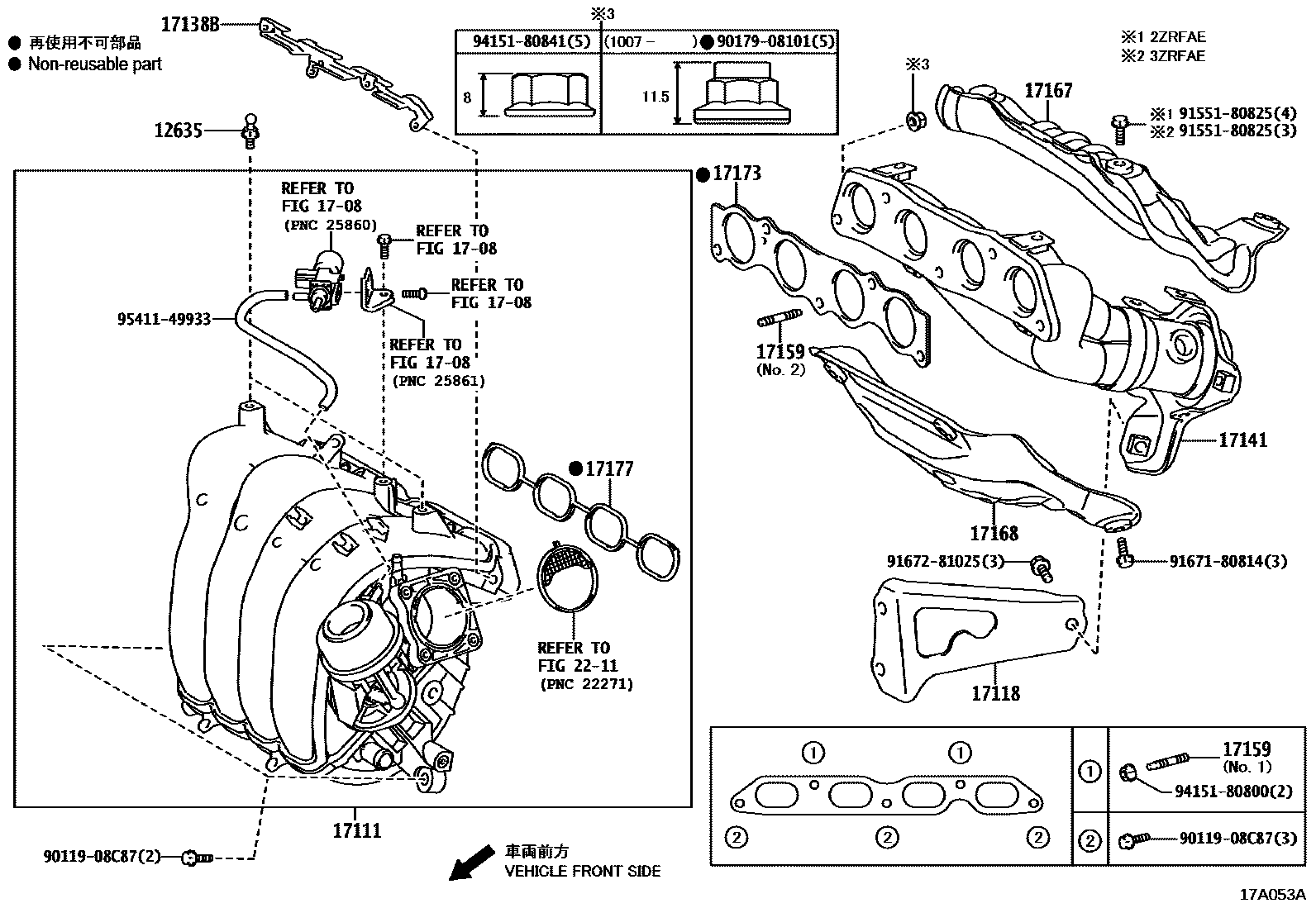

MANIFOLD

0001 1 0002 1 0003 1 0004 1

12635JOINT, ENGINE COVER

main90109-06385×2i2ZRFAE,3ZRFAE..ZGE2#..CBU200903-201204

1708VACUUM PIPING

→ Go to FIG 17-08

17111MANIFOLD, INTAKE

main17120-37011i2ZRFAE,3ZRFAE..ZGE2#..CBU200903-201204

main17120-37031i2ZRFAE,3ZRFAE..ZGE2#..CBU201204

17118STAY, MANIFOLD

main17118-37010i2ZRFAE..ZGE20..CBU201204

main17118-37030i2ZRFAE..ZGE25..CBU200903-201204

main17118-37050i3ZRFAE..ZGE22201204

17138BSTAY, INTAKE MANIFOLD

main17138-37010i2ZRFAE,3ZRFAE..ZGE2#..CBU201204-201305

main17138-37011i2ZRFAE,3ZRFAE..ZGE2#..CBU201305

17141MANIFOLD, EXHAUST

main17141-37051i2ZRFAE..ZGE20..CBU200903-201204

main17141-37080i3ZRFAE..ZGE21,22..CBU200903-201204

main17141-37120i2ZRFAE..ZGE25..CBU200903-201204

main17141-37130i2ZRFAE..ZGE20..CBU201204

main17141-37140i3ZRFAE..ZGE22201204

main17141-37160i2ZRFAE..ZGE25..CBU201204

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i2ZRFAE,3ZRFAE..ZGE2#..CBU200903-201204

main90126-08052×5i2ZRFAE,3ZRFAE..ZGE2#..CBU200903-201204

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-37011i2ZRFAE..ZGE20..CBU200903-201204

main17167-37031i2ZRFAE..ZGE25..CBU200903-201204

main17167-37050i3ZRFAE..ZGE21,22..CBU200903-201204

main17167-37110i2ZRFAE..ZGE20..CBU201204

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-37050i2ZRFAE..ZGE25..CBU201204

main17168-37070i3ZRFAE..ZGE21,22..CBU200903-201204

main17168-37100i2ZRFAE..ZGE20..CBU200903-201204

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-37010i2ZRFAE,3ZRFAE..ZGE2#..CBU200903-201204

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-37030i2ZRFAE,3ZRFAE..ZGE2#..CBU200903-201204

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

9011908C87

main90119-08C87

9017908101

main90179-08101

9155180825

main91551-80825

9167180814

main91671-80814

9167281025

main91672-81025

9415180800

main94151-80800

9415180841

main94151-80841

9541149933

main95411-49933

20 parts on this diagram · 4 diagrams in section
