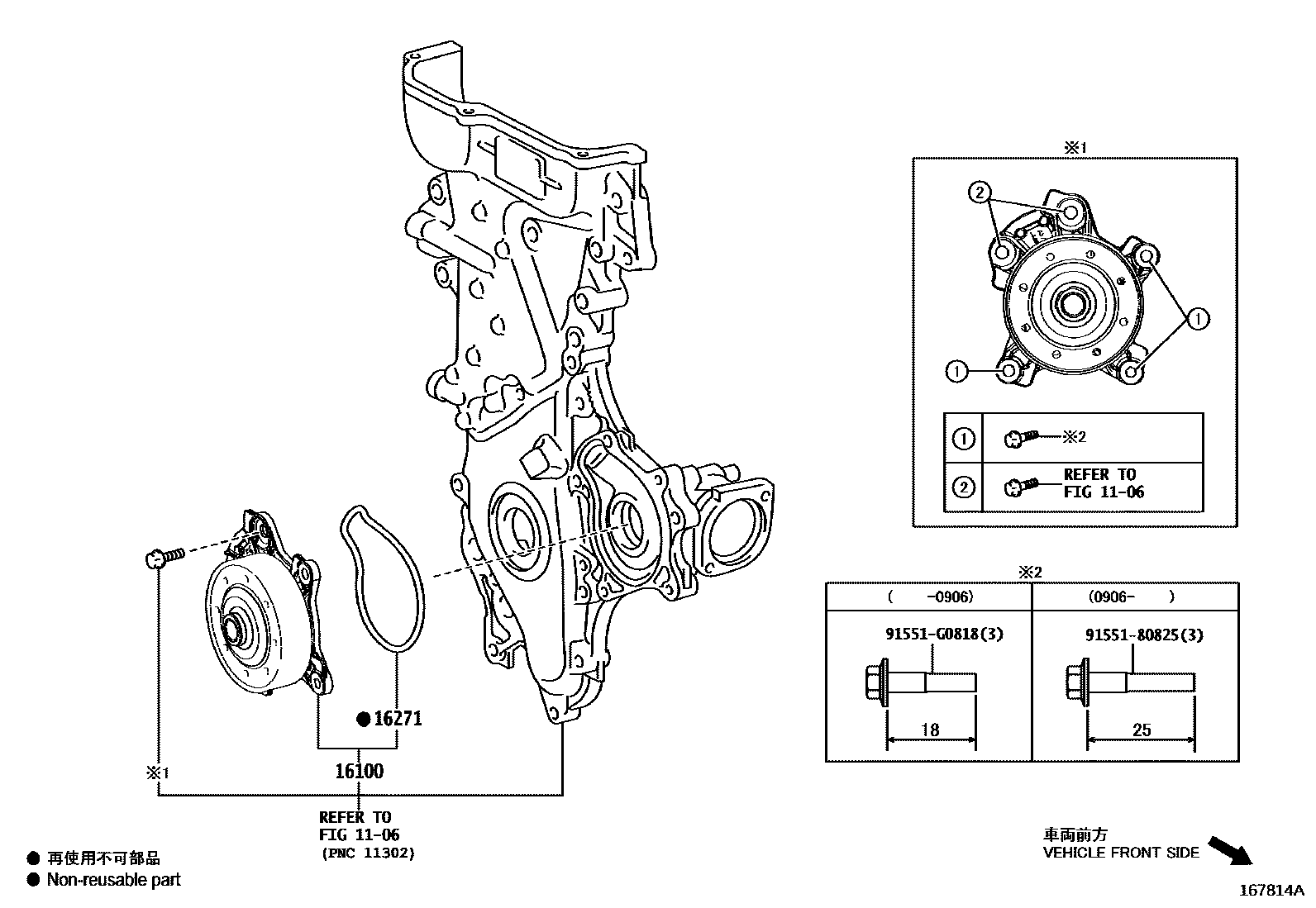

WATER PUMP

0001 1 0002 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

16100PUMP ASSY, ENGINE WATER

main16100-39465i2ZRFAE,3ZRFAE..ZGE2#..CBU200903-200906

main16100-39466i2ZRFAE,3ZRFAE..ZGE2#..CBU200906-201204

main16100-39565i2ZRFAE,3ZRFAE..ZGE2#..CBU201204

16271GASKET, WATER PUMP

main16271-37010i2ZRFAE,3ZRFAE..ZGE2#..CBU200903-201204

main16271-37030i2ZRFAE,3ZRFAE..ZGE2#..CBU201204

9155180825

main91551-80825

91551G0818

main91551-G0818

5 parts on this diagram · 2 diagrams in section
