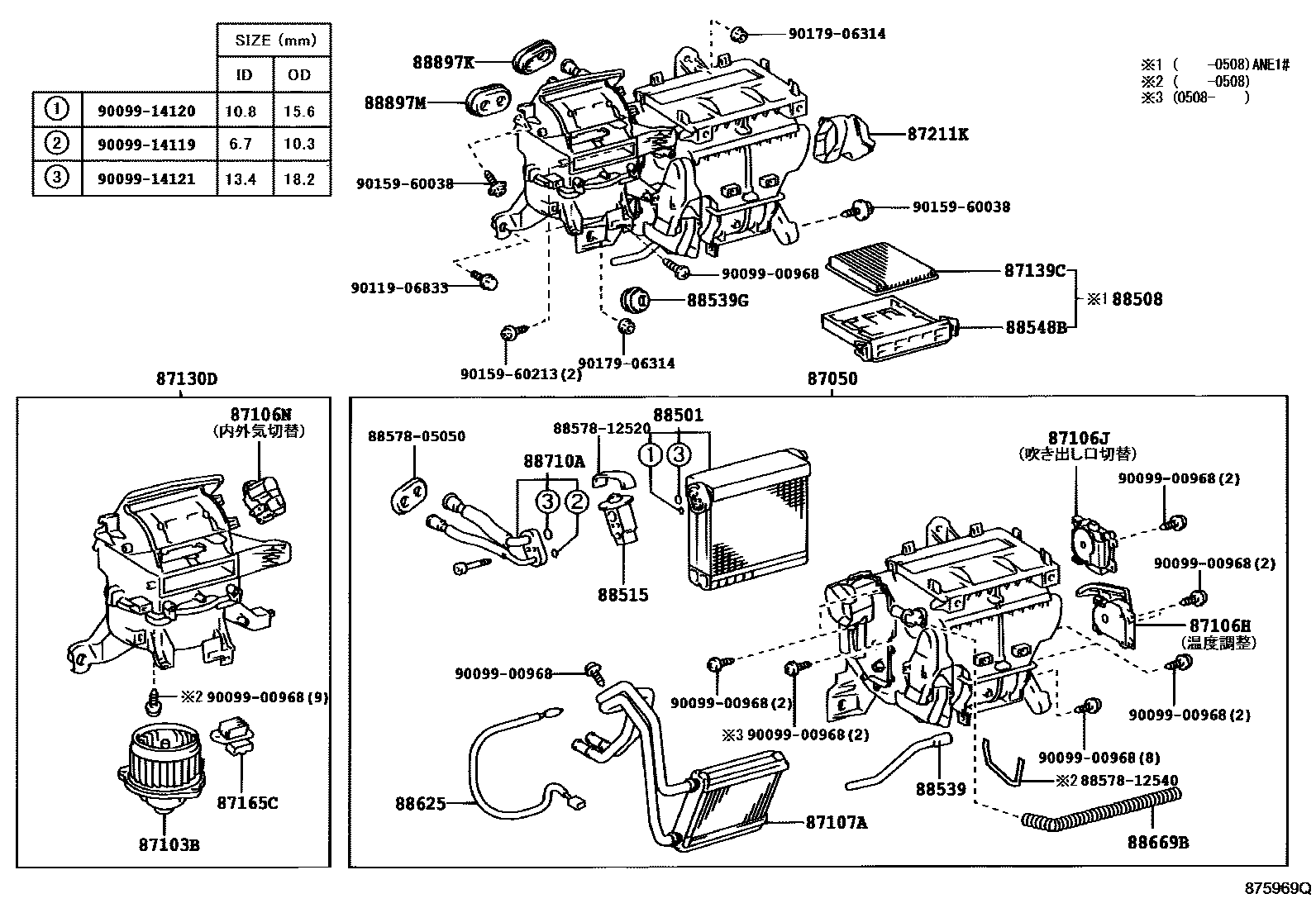

HEATING & AIR CONDITIONING - COOLER UNIT

87050RADIATOR ASSY, AIR CONDITIONER

main87050-68010iANE1#,ZNE1#200301-200508

main87050-68040iANE1#,ZNE1#200508-200903

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-20150iANE1#,ZNE1#200508-200903

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-12130iANE1#,ZNE1#200301-200508

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-13030iANE1#,ZNE1#200508-200903

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-12150iANE1#,ZNE1#200508-200903

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-21010iANE1#,ZNE1#200301-200508

87130DBLOWER ASSY

main87130-68030iANE1#,ZNE1#200508-200903

87139CFILTER, CLEAN AIR

main87139-44010iANE1#,ZNE1#200301-200508

main88568-12020iANE1#200304-200508

main88568-12030supersedes 87139-12010iANE1#200508-200903

87165CCONTROL, BLOWER MOTOR

main87165-13010iANE1#,ZNE1#200301-200508

87211KDUCT, AIR

main87211-12260iANE1#,ZNE1#200301-200508

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-68010iANE1#,ZNE1#200301-200508

main88501-68011iANE1#,ZNE1#200806-200903

88508FILTER SUB-ASSY, CLEAN AIR

main88508-12040iANE1#200304-200508

88515VALVE, COOLER EXPANSION

main88515-21040iANE1#,ZNE1#200301-200508

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-12170iANE1#,ZNE1#200301-200508

main88539-68010iANE1#,ZNE1#200804-200903

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26022iANE1#,ZNE1#200301-200508

88548BCASE, AIR FILTER

main88548-52010iANE1#,ZNE1#200301-200508

88625THERMISTOR, COOLER, NO.1

main88625-21010iANE1#,ZNE1#200301-200508

main88625-21030iANE1#,ZNE1#200508-200903

88669BHOSE, COOLER AIR

main88669-68010iANE1#,ZNE1#200301-200501

main88669-68020iANE1#,ZNE1#200502-200508

88710ATUBE ASSY, AIR CONDITIONER

main88710-20830iANE1#,ZNE1#200301-200508

88897KGROMMET, (FOR COOLER PIPE)

main88897-12240iANE1#,ZNE1#200301-200508

88897MGROMMET (FOR HEATER PIPE)

main90480-01405iANE1#,ZNE1#200301-200508

8857805050PAKING, COOLER AIR DUCT

main88578-05050

8857812520PAKING, COOLER AIR DUCT

main88578-12520

8857812540PAKING, COOLER AIR DUCT

main88578-12540

9009900968

main90099-00968

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906833

main90119-06833

9015960038

main90159-60038

9015960213

main90159-60213

9017906314

main90179-06314

32 parts on this diagram · 1 diagram in section
