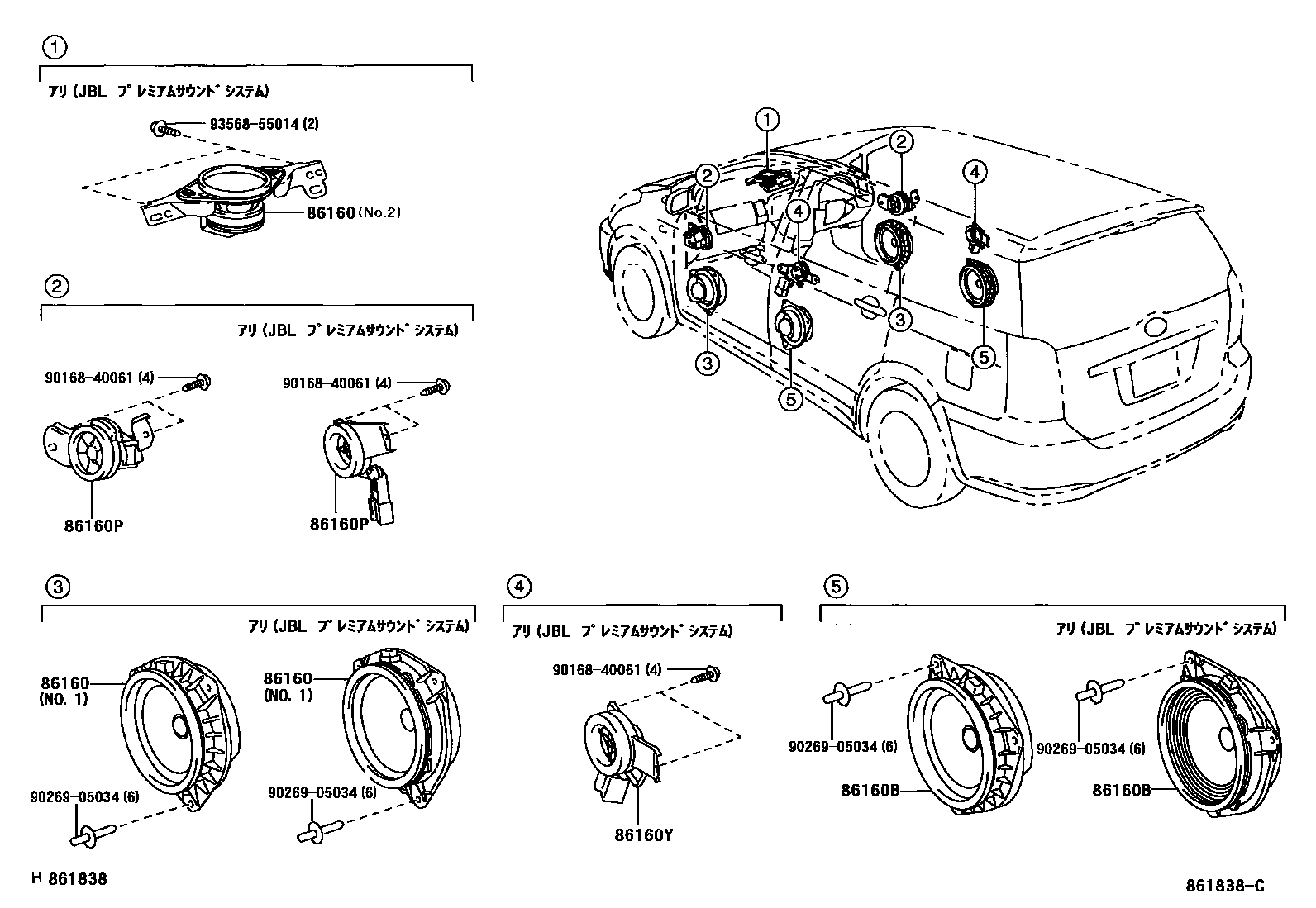

SPEAKER

0001 1 0002 1

86160SPEAKER ASSY, FRONT NO.1

main86160-22A10×2iANE1#,ZNE1#200508-200903

main86160-68090×2iANE1#,ZNE1#200301-200508

main86160-0W340×2iANE11,ZNE1#200301-200508

main86160-0W530iANE11,ZNE1#200301-200508

86160BSPEAKER ASSY, REAR

main86160-22A10×2iANE1#,ZNE1#200508-200903

main86160-68090×2iANE1#,ZNE1#200301-200508

main86160-0W620×2iANE11,ZNE1#200301-200508

86160PSPEAKER ASSY, FRONT NO.2

main86150-68010iANE1#; ANE1#,ZNE1#200404-200508

main86160-0W720iANE11,ZNE1#200301-200508

main86160-0W770iANE11,ZNE1#200301-200508

main86160-68080iANE1#; ANE1#,ZNE1#200404-200508

86160YSPEAKER ASSY, REAR NO.2

main86150-68020iANE1#200508-200903

main86160-0W780iANE11,ZNE1#200301-200508

main86160-0W790iANE11,ZNE1#200301-200508

main86160-68020iANE1#200508-200903

9016840061

main90168-40061

9026905034

main90269-05034

9356855014

main93568-55014

7 parts on this diagram · 2 diagrams in section
