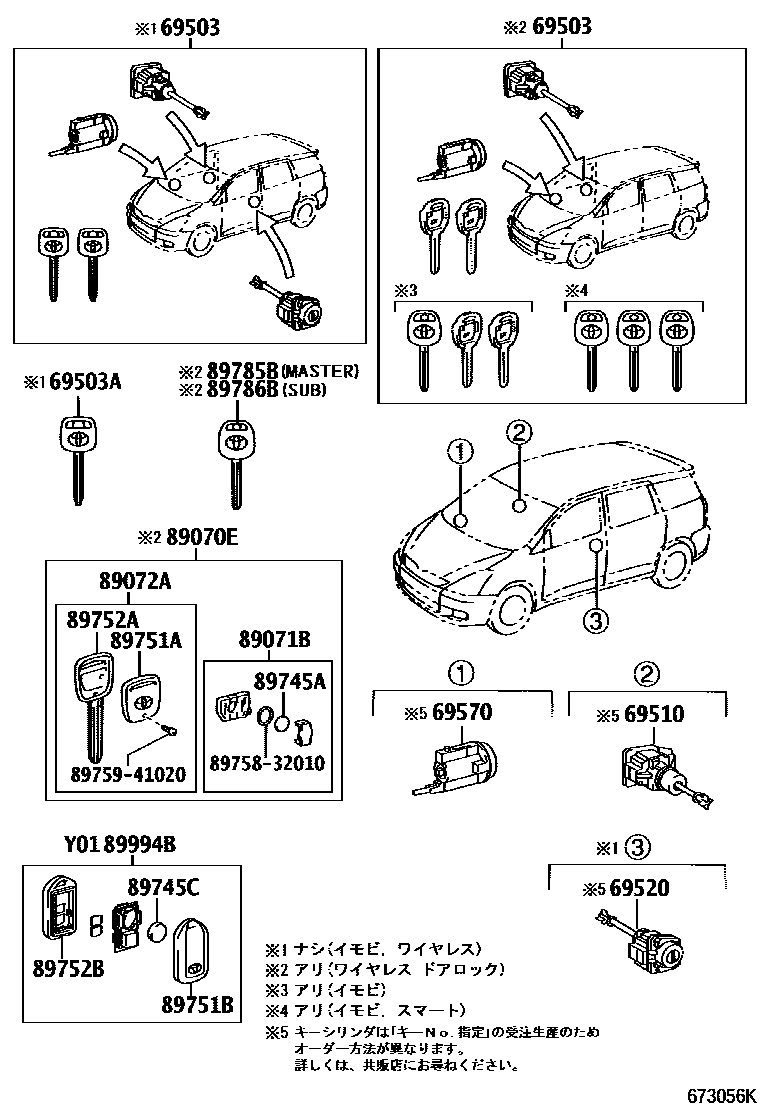

LOCK CYLINDER SET

0001 1 0002 1 0003 1

69503CYLINDER SET, LOCK

main69005-68020iZNE10200301-200508

main69005-68030supersedes 69005-68010iANE1#,ZNE1#200301-200508

main69005-68040supersedes 69005-68091iZNE1#200508-200806

main69005-68050supersedes 69005-68040iANE1#200508-200903

main69005-68100supersedes 69005-68091iZNE1#200508-200612

main69005-68101supersedes 69005-68091iZNE1#200701-200903

69503AKEY, BLANK

main90999-00199×2iZNE1#; ZNE10200301-200508

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-58010iANE1#,ZNE1#200508-200903

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-58010iANE1#200508-200903

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-12190iANE1#,ZNE1#200508-200903

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-32080iANE1#,ZNE1#; ZNE10200301-200508

main89070-52380×2supersedes 89070-32080iANE1#,ZNE1#200301-200508

main89070-68030iZNE1#; ZNE10200508-200702

main89070-68040×2supersedes 89070-68100iZNE1#200508-200702

main89070-68100iZNE1#; ZNE10200702-200903

main89070-68110×2supersedes 89070-68100iZNE1#200702-200903

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-32030×2iANE1#,ZNE1#; ZNE1#; ZNE10200301-200508

main89071-52080×2supersedes 89071-32030iANE1#,ZNE1#200301-200508

main89071-52120×2iZNE1#; ZNE10200508-200702

main89071-52200×2iZNE1#; ZNE10200702-200903

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-47020iANE1#,ZNE1#; ZNE10200301-200508

main89072-71150×2supersedes 89072-71160iZNE1#200508-200903

main89072-71160iZNE1#; ZNE10200508-200903

89745ABATTERY, TRANSMITTER

main89745-41010×2iANE1#,ZNE1#; ZNE1#; ZNE10200301-200508

main89745-71010×2iZNE1#; ZNE10200508-200903

89745CBATTERY, TRANSMITTER

main89745-50020×2iANE1#200508-200903

89751ACOVER, TRANSMITTER HOUSING

main89751-26010×2iZNE1#; ZNE10200508-200702

main89751-28070×2iZNE1#; ZNE10200702-200903

main89751-44010×2iANE1#,ZNE1#; ZNE1#; ZNE10200301-200508

89751BCOVER, TRANSMITTER HOUSING

main89751-68010×2iANE1#200508-200903

89752ACASE, TRANSMITTER HOUSING

main89752-12080iZNE1#; ZNE10200702-200903

main89752-28050×2supersedes 89752-12080iZNE1#200702-200903

main89752-46020iANE1#,ZNE1#; ZNE10200301-200508

89752BCASE, TRANSMITTER HOUSING

main89752-68010×2iANE1#200508-200903

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-60160iANE1#; ZNE1#200508-200703

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-60170iANE1#,ZNE1#; ZNE1#200508-200703

89994BTRANSMITTER, ELECTRICAL KEY

main89994-68030×2iANE1#200508-200903

8975832010PACKING, DOOR CONTROL TRANSMITTER

main89758-32010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

19 parts on this diagram · 3 diagrams in section
