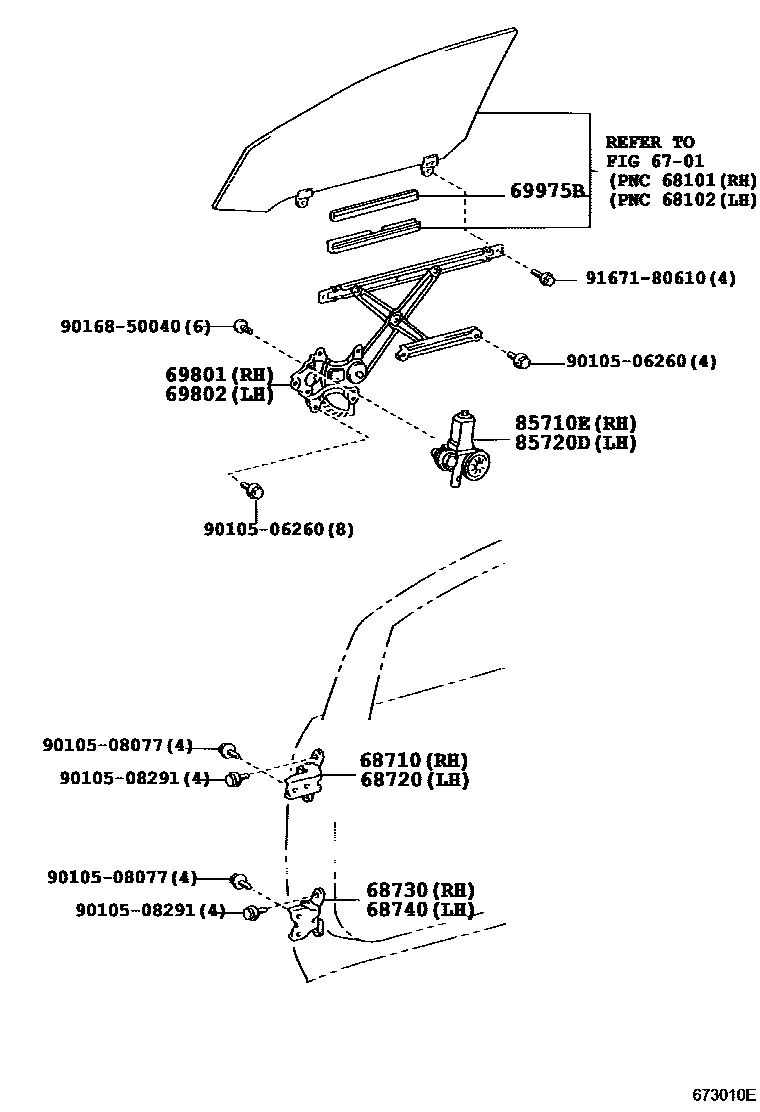

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-52010iANE1#,ZNE1#200301-200311

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-52010iANE1#,ZNE1#200301-200311

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-44010iANE1#,ZNE1#200301-200311

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-44010iANE1#,ZNE1#200301-200311

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-68010iANE1#,ZNE1#200301-200508

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-68010iANE1#,ZNE1#200301-200508

69975BFILLER, FRONT DOOR GLASS CHANNEL

main69975-16020×2iANE1#,ZNE1#200301-200508

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-58010iANE1#,ZNE1#200301-200508

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-58010iANE1#,ZNE1#200301-200508

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

9016850040

main90168-50040

9167180610

main91671-80610

15 parts on this diagram · 1 diagram in section
