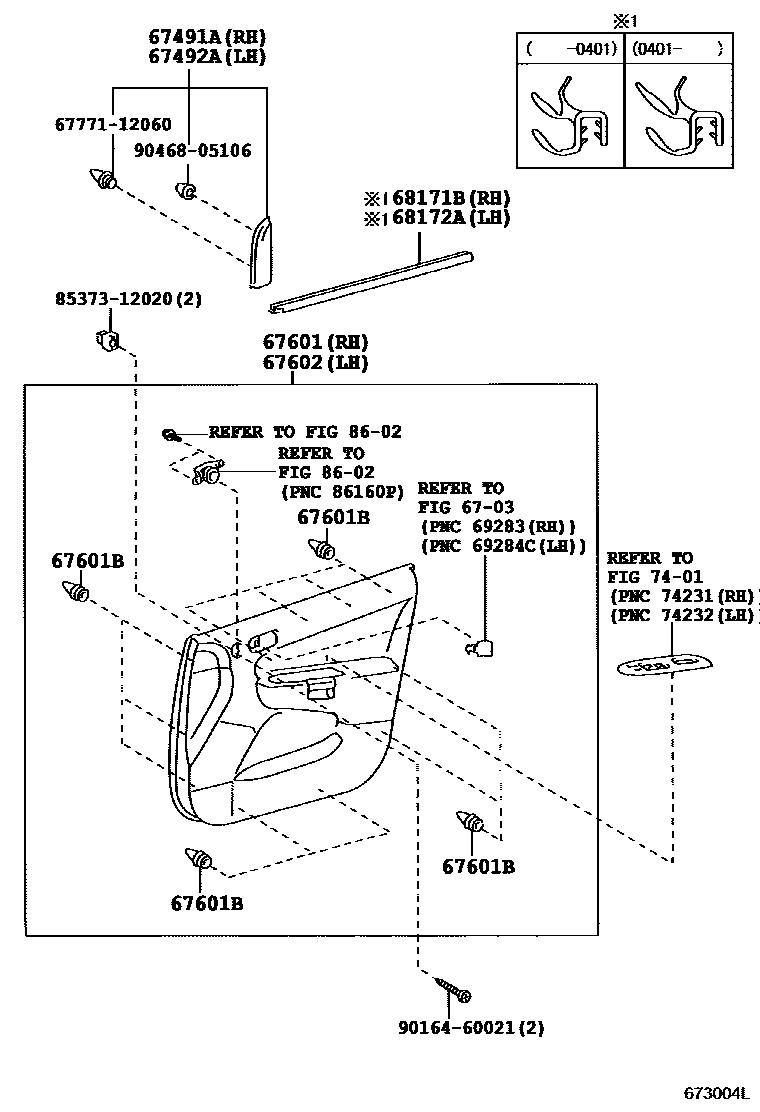

FRONT DOOR PANEL & GLASS

6703FRONT DOOR LOCK & HANDLE

→ Go to FIG 67-03

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-68010i200301-200508

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-68010i200508-200903

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-68010-B4i200706-200806

main67610-68010-B6supersedes 67610-68010-B3i200806

main67610-68020-B1i200404-200508

main67610-68020-B2supersedes 67610-68010-B3i200508-200903

main67610-68030-B1i200301-200508

main67610-68120-B0supersedes 67610-68010-B3i200508-200903

main67610-68130-B0i200706-200806

main67610-68130-C0supersedes 67610-68010-B3i200806-200903

main67610-68140-B0supersedes 67610-68120-B0i200508-200903

main67610-68150-C0supersedes 67610-68130-C0i200508-200903

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-09206×22i200301-200508

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-68010-B4i200706-200806

main67620-68010-B6supersedes 67620-68010-B3i200806

main67620-68020-B1supersedes 67620-68010-B1i200404-200508

main67620-68020-B2supersedes 67620-68010-B3i200508-200903

main67620-68030-B1i200301-200508

main67620-68120-B0supersedes 67620-68010-B3i200508-200903

main67620-68130-B0i200706-200806

main67620-68130-C0supersedes 67620-68010-B3i200706-200806

main67620-68140-B0supersedes 67620-68010-B3i200508-200903

main67620-68150-C0supersedes 67620-68130-C0i200508-200903

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-68010i200301-200401

main68171-68020i200401-200508

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-68010i200301-200401

main68172-68020i200401-200508

7401ARMREST & VISOR

→ Go to FIG 74-01

8602SPEAKER

→ Go to FIG 86-02

6777112060WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12060

8537312020HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-12020

9016460021

main90164-60021

9046805106

main90468-05106

14 parts on this diagram · 4 diagrams in section
