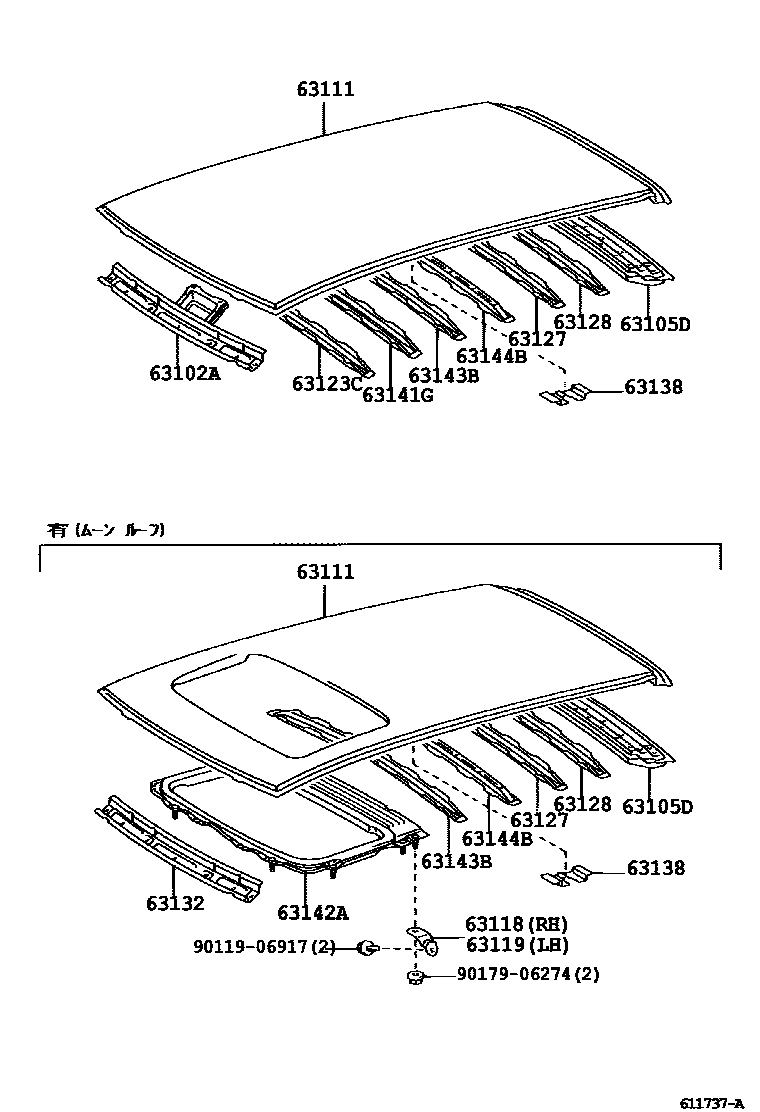

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1��(�-� �-�)

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-68010iANE1#,ZNE1#200508-200903

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-68010iANE1#,ZNE1#200301-200508

63111PANEL, ROOF

main63111-68020supersedes 63111-68010iANE1#,ZNE1#200301-200508

63118SUPPORT, ROOF PANEL, RH

main63118-68010iANE1#,ZNE1#200301-200508

63119SUPPORT, ROOF PANEL, LH

main63118-68010iANE1#,ZNE1#200301-200508

63123CREINFORCEMENT, ROOF PANEL

main63123-68010iANE1#,ZNE1#200508-200903

63127REINFORCEMENT, ROOF PANEL, NO.5

main63127-68010iANE1#,ZNE1#200301-200508

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-68010iANE1#,ZNE1#200301-200508

63132PANEL, WINDSHIELD HEADER, INNER

main63132-68010iANE1#,ZNE1#200301-200508

63138BRACKET, DOME LAMP, NO.2

main63138-12011×2iANE1#,ZNE1#200301-200508

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-68010iANE1#,ZNE1#200301-200508

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63142-68020iANE1#,ZNE1#200301-200508

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-68020supersedes 63143-68010iANE1#,ZNE1#200508-200903

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-68010iANE1#,ZNE1#200301-200508

9011906917

main90119-06917

9017906274

main90179-06274

16 parts on this diagram · 2 diagrams in section
