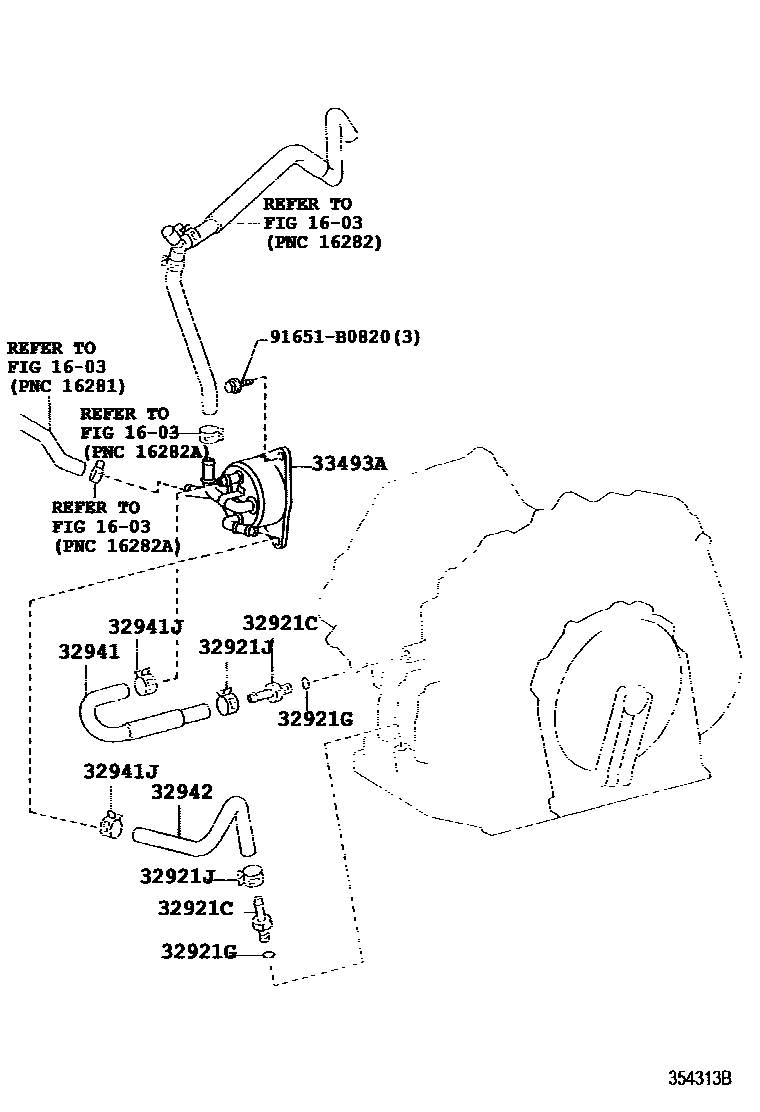

OIL COOLER & TUBE (ATM)

0001 1U341E 0002 1U341F

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

32921TUBE, OIL COOLER INLET, NO.1

main32921-20560iZNE14200508-200903

32921CUNION(FOR OIL COOLER TUBE)

main90404-13004×2iZNE10200301-200508

main90404-16031iZNE14200508-200903

main90407-16010iZNE14200508-200903

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iZNE1#200301-200508

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16022×2iZNE1#200301-200508

32941HOSE, OIL COOLER INLET, NO.1

main32941-20240iZNE14200508-200903

main32941-68010iZNE10200508-200903

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004×2iZNE1#200902-200903

main90467-16022×2iZNE1#200301-200508

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-68010iZNE10200301-200508

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-20021iZNE10200301-200508

91651B0820

main91651-B0820

10 parts on this diagram · 2 diagrams in section
