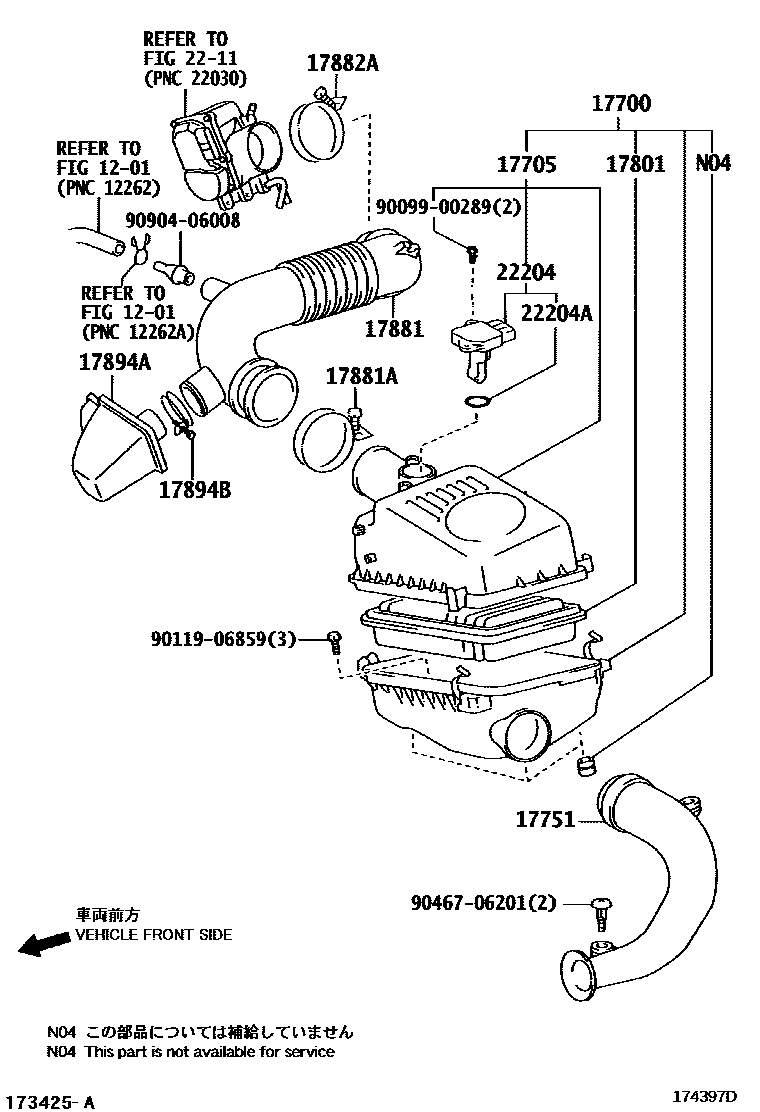

AIR CLEANER

0001 1 0002 1 0003 1

1201VENTILATION HOSE

→ Go to FIG 12-01

17700CLEANER ASSY, AIR

main17700-22140i1AZFSE..ANE1#; 1ZZFE..ZNE1#200508-200903

17705CAP SUB-ASSY, AIR CLEANER

main17705-22140i1AZFSE..ANE1#200304-200508

17751INLET, AIR CLEANER, NO.1

main17751-22100i1ZZFE..ZNE1#200301-200508

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-22020i1ZZFE..ZNE1#200301-200508

17881HOSE, AIR CLEANER, NO.1

main17881-22080i1ZZFE..ZNE1#200301-200508

main17881-22120i1ZZFE..ZNE10200508-200903

main17881-28060i1AZFSE..ANE1#200304-200508

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10750i1ZZFE..ZNE10200508-200903

main96111-10800i1AZFSE..ANE1#; 1ZZFE..ZNE10; 1ZZFE..ZNE14200508-200903

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10730i1AZFSE..ANE1#200508-200903

17894ARESONATOR, INTAKE AIR, NO.2

main17894-16060i1AZFSE..ANE1#200304-200508

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main96111-10500i1AZFSE..ANE1#200304-200508

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0C020i1AZFSE..ANE1#; 1ZZFE..ZNE1#200508-200903

main22204-22010i1AZFSE..ANE1#; 1ZZFE..ZNE1#200402-200508

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i1ZZFE..ZNE1#200301-200508

9009900289

main90099-00289

9011906859

main90119-06859

9046706201

main90467-06201

9090406008

main90904-06008

17 parts on this diagram · 3 diagrams in section
