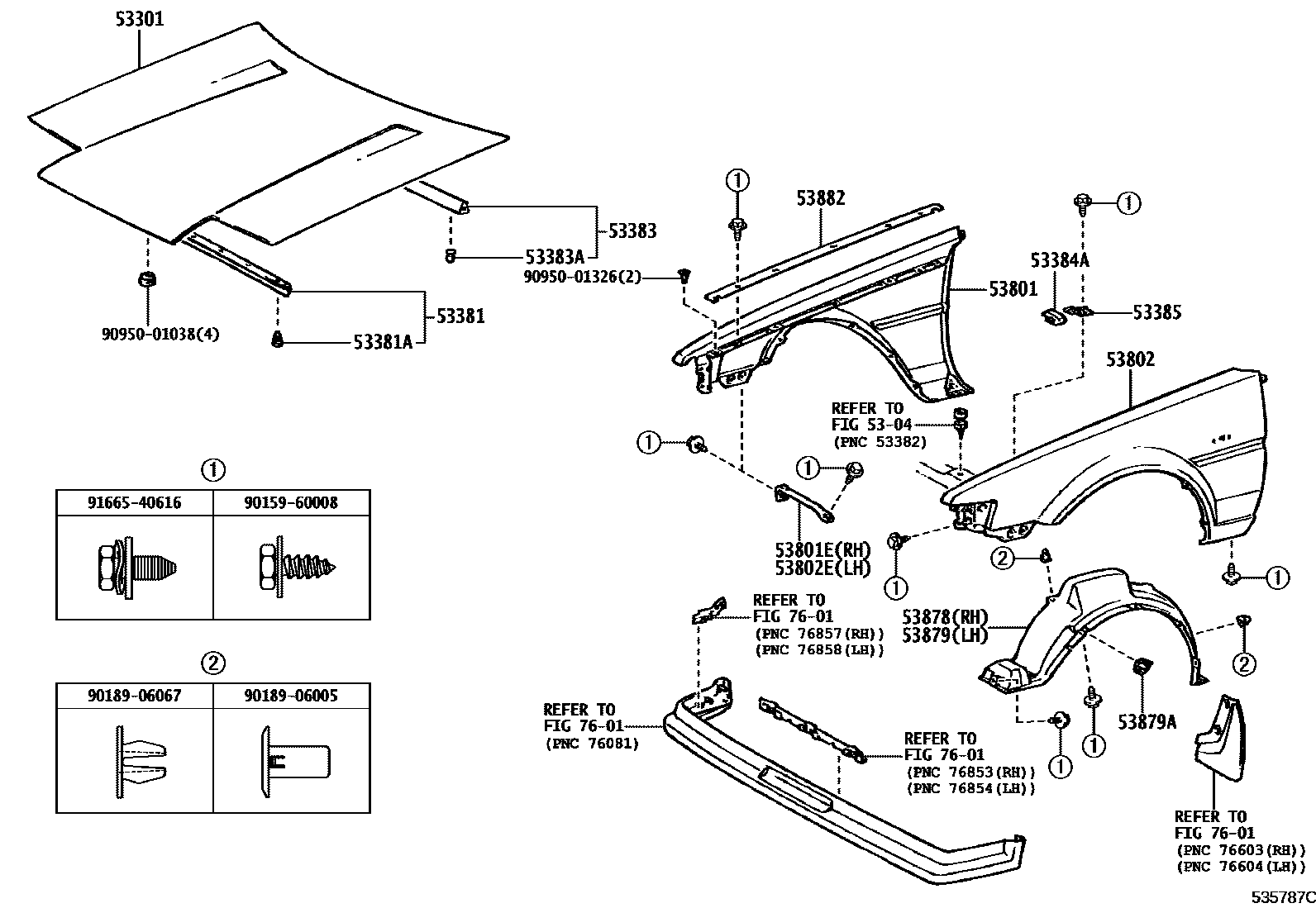

HOOD & FRONT FENDER
5304FRONT FENDER APRON & DASH PANEL
53301HOOD SUB-ASSY
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53383SEAL, HOOD TO COWL TOP
53383ACLIP(FOR HOOD TO COWL TOP SEAL)
53384ABUMPER, FENDER TO HOOD
53801FENDER SUB-ASSY, FRONT RH
W/O *DM
W/O *DM
W/*DM
W/*DM
W/O *DM & W/ARCH MOULDING
W/O *DM & W/ARCH MOULDING
W/*DM & ARCH MOULDING
W/*DM & ARCH MOULDING
53801EBRACE, FRONT FENDER TO APRON, RH
53802FENDER SUB-ASSY, FRONT LH
W/O *DM
W/*DM
W/O *DM & W/ARCH MOULDING
W/*DM & ARCH MOULDING
53802EBRACE, FRONT FENDER TO APRON, LH
53879ARETAINER, FRONT FENDER LINER
53882PACKING, FRONT FENDER MAIN
7601MUDGUARD & SPOILER
9015960008
main90159-60008
9018906005
main90189-06005
9018906067
main90189-06067
9095001038
main90950-01038
9095001326
main90950-01326
9166540616
main91665-40616
23 parts on this diagram · 1 diagram in section
