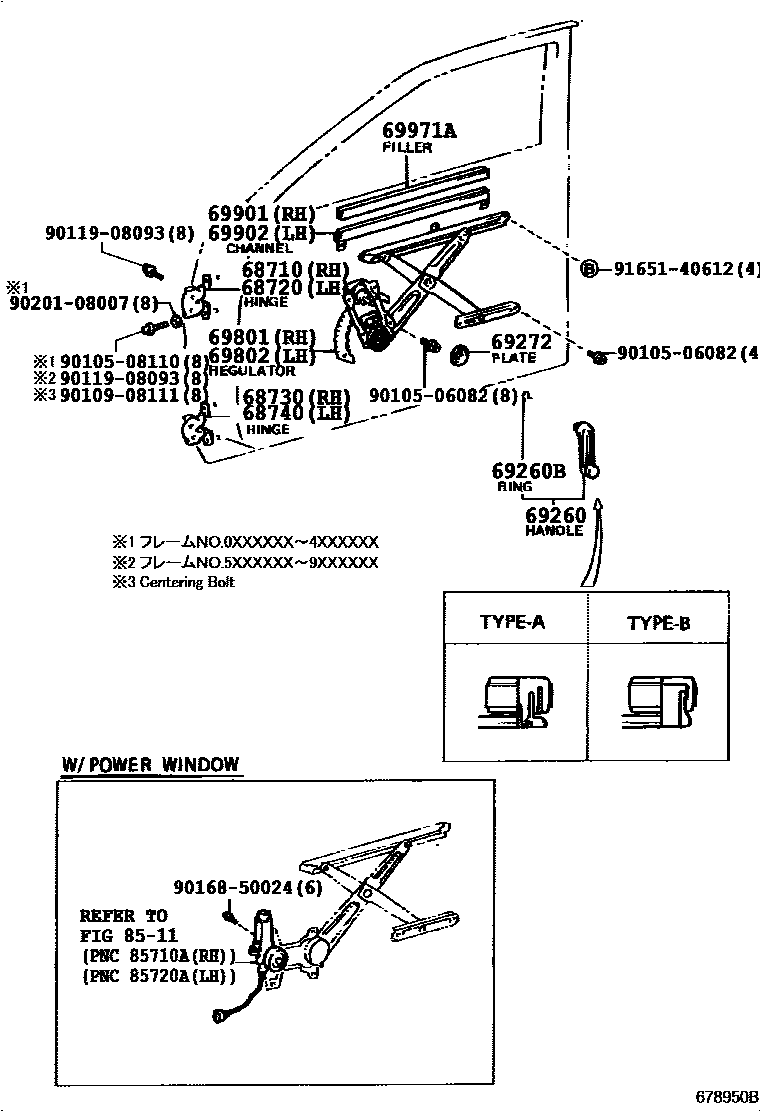

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-14030iAE8#198305-198704

PLANT.M21,M22

main68710-32010iAE8#198305-198704

PLANT.A51-A54

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-14030iAE8#198305-198704

PLANT.M21,M22

main68720-32010iAE8#198305-198704

PLANT.A51-A54

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-24010iAE8#198305-198704

PLANT.M21,M22

main68730-32010iAE8#198305-198704

PLANT.A51-A54

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-24010iAE8#198305-198704

PLANT.M21,M22

main68740-32010iAE8#198305-198704

PLANT.A51-A54

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-01×2iAE8#198505-198704

BLACK,BLACK,TRIM2#

main69260-12060-02×2iAE8#198305-198505

TYPE B,DEEP MAROON,RED/MAROON,TRIM3#

main69260-12060-24×2iAE8#198305-198505

TYPE B,BLUE,BLUE,TRIM8#

main69260-14020-04×2iAE8#198305-198505

TYPE A,BLUE,BLUE,TRIM8#

main69260-14020-12×2iAE8#198305-198505

TYPE A,DEEP MAROON,RED/MAROON,TRIM3#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iAE8#198305-198704

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010×2iAE8#198305-198704

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12060iAE86..APX198505-198704

W/*PW

main69810-12170iAE8#198305-198704

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12060iAE86..APX198505-198704

W/*PW

main69820-12160iAE8#198305-198704

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-12120iAE8#198305-198704

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-12120iAE8#198305-198704

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-22010×2iAE8#198305-198704

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010506082

main90105-06082

9010508110

main90105-08110

9010908111

main90109-08111

9011908093

main90119-08093

9016850024

main90168-50024

9020108007

main90201-08007

9165140612

main91651-40612

20 parts on this diagram · 1 diagram in section
