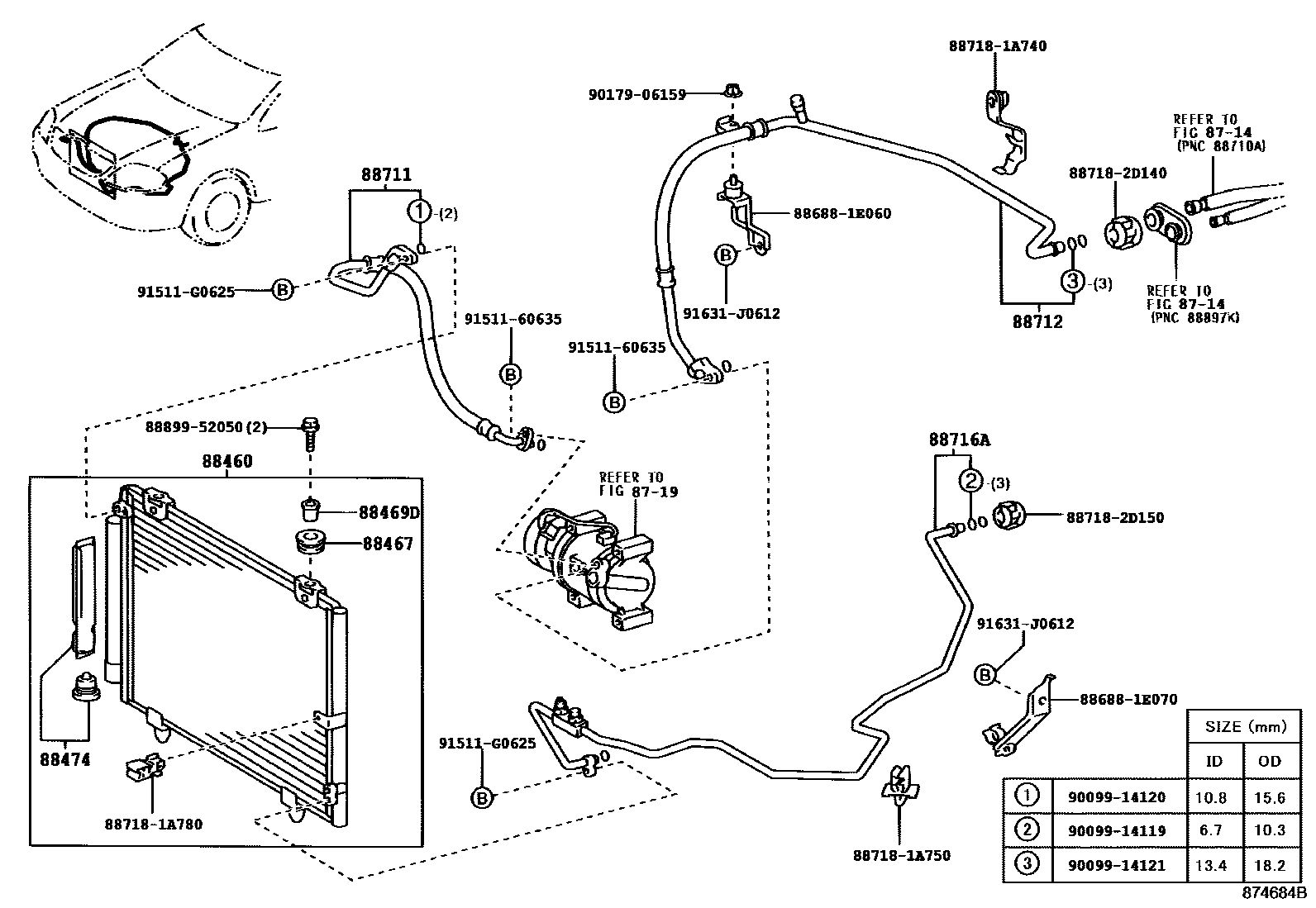

HEATING & AIR CONDITIONING - COOLER PIPING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88460CONDENSER ASSY, COOLER

main88450-12210iZZE128200104-200209

main88450-12211iZZE128200209-200404

main88450-12240iNZE127,ZZE127,129200104-200209

main88450-12241iNZE127,ZZE127,129200209-200404

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12180×2iNZE127,ZZE12#200104-200404

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-52010×2iNZE127,ZZE12#200104-200404

88474DRYER, COOLER

main88474-17010iNZE127,ZZE12#200209-200404

main88474-47010iNZE127,ZZE12#200104-200209

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-12530iNZE127200201-200404

main88703-12540iZZE12#200104-200404

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-12810iNZE127200201-200404

main88704-12820iZZE12#200104-200404

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-12510iNZE127,ZZE12#200104-200404

886881E060BRACKET, COOLER DIAPHRAGM

main88688-1E060

886881E070BRACKET, COOLER DIAPHRAGM

main88688-1E070

887181A740PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A740

887181A750PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A750

887181A780PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A780

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8889952050COVER, EVAPORATOR

main88899-52050

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9017906159

main90179-06159

9151160635

main91511-60635

91511G0625

main91511-G0625

91631J0612

main91631-J0612

24 parts on this diagram · 1 diagram in section
