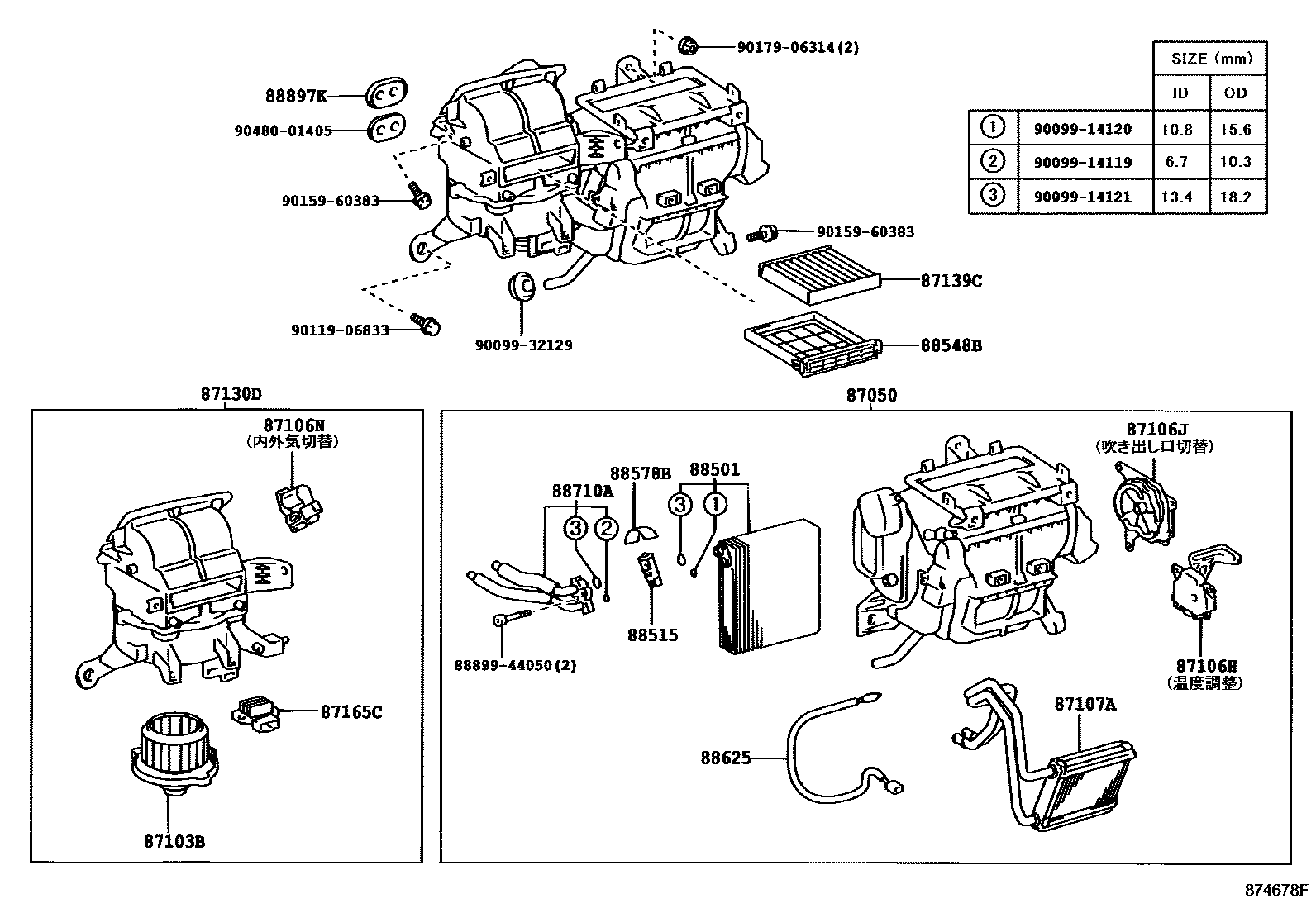

HEATING & AIR CONDITIONING - COOLER UNIT

87050RADIATOR ASSY, AIR CONDITIONER

main87050-12170iNZE127,ZZE12#200104-200404

main87050-12190iNZE127,ZZE12#200104-200404

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-12050iNZE127,ZZE12#200104-200404

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-12130iNZE127,ZZE12#200104-200404

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-12140iNZE127,ZZE12#200104-200404

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-12150iNZE127,ZZE12#200104-200404

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-12550iNZE127,ZZE12#200104-200404

87130DBLOWER ASSY

main87130-12450iNZE127,ZZE12#200104-200404

main87130-12490iNZE127,ZZE12#200104-200404

87139CFILTER, CLEAN AIR

main87139-44010iNZE127,ZZE12#200104-200404

main88568-12020iNZE127,ZZE12#200104-200404

87165CCONTROL, BLOWER MOTOR

main87165-13010iNZE127,ZZE12#200104-200404

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-12440iNZE127,ZZE12#200104-200404

88515VALVE, COOLER EXPANSION

main88515-27020iNZE127,ZZE12#200303-200404

main88515-48040iNZE127,ZZE12#200104-200302

88548BCASE, AIR FILTER

main88548-52010iNZE127,ZZE12#200104-200404

88578BPACKING, COOLING UNIT, NO.1

main88578-12520iNZE127,ZZE12#200104-200404

88625THERMISTOR, COOLER, NO.1

main88625-60140iNZE127,ZZE12#200104-200404

88710ATUBE ASSY, AIR CONDITIONER

main88710-12540iNZE127,ZZE12#200104-200404

88897KGROMMET, (FOR COOLER PIPE)

main90480-01434iNZE127,ZZE12#200104-200404

8889944050COVER, EVAPORATOR

main88899-44050

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9009932129

main90099-32129

9011906833

main90119-06833

9015960383

main90159-60383

9017906314

main90179-06314

9048001405

main90480-01405

25 parts on this diagram · 1 diagram in section
