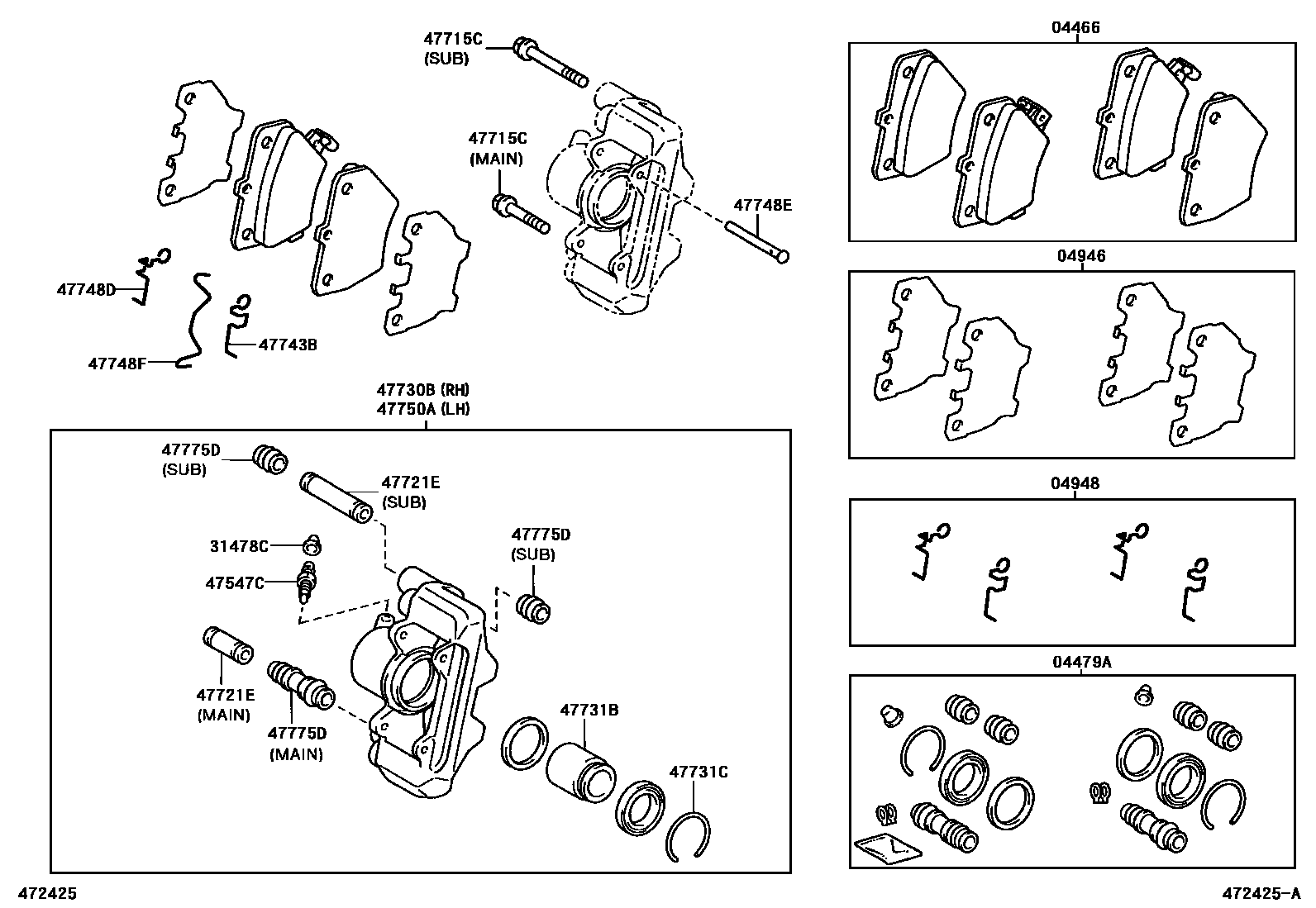

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-20090iZZE127,128200104-200404

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-20340iZZE128200104-200404

main04479-42020iZZE127200104-200404

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-20020iZZE127,128200104-200404

04948FITTING KIT, DISC BRAKE, REAR

main04948-20010iZZE127,128200104-200404

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iZZE127,128200104-200404

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-35020×2iZZE127,128200104-200404

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-20030×2iZZE127,128200104-200404

main47715-20040×2iZZE127,128200104-200404

47721ECOLLAR(FOR REAR DISC BRAKE CYLINDER MOUNTING)

main90389-10053×2iZZE127,128200104-200404

main90389-10054×2iZZE127,128200104-200404

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-12500iZZE127200104-200404

main47730-20630iZZE128200104-200404

47731BPISTON, REAR DISC BRAKE

main47731-20250×2iZZE128200104-200404

main47731-42020×2iZZE127200104-200404

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-37016×2iZZE127200104-200404

main90522-40043×2iZZE128200104-200404

47743BSPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47743-20030×2iZZE127,128200104-200404

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-20040×2iZZE127,128200104-200404

47748EPIN, W/HOLE(FOR REAR DISC BRAKE)

main90240-06021×4iZZE127,128200104-200404

47748FCLIP(FOR REAR DISC BRAKE)

main90468-12025×2iZZE127,128200104-200404

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-12500iZZE127200104-200404

main47750-20620iZZE128200104-200404

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-22020×2iZZE127,128200104-200404

main47775-42010×4iZZE127,128200104-200404

17 parts on this diagram · 1 diagram in section
