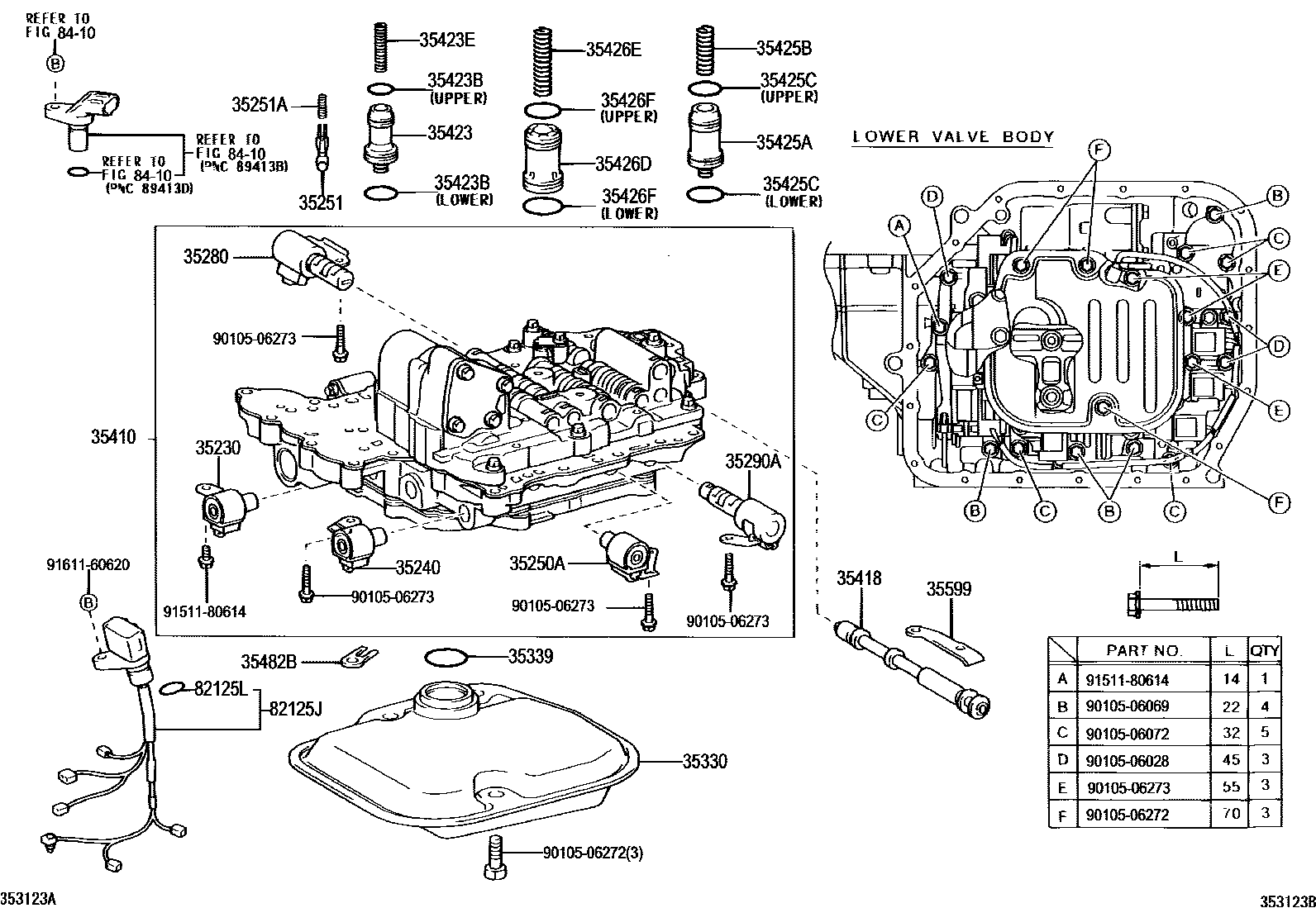

VALVE BODY & OIL STRAINER (ATM)

0001 1U340E,U341E,U341F 0002 1U240E 0003 1U240E

35230SOLENOID ASSY, TRANSMISSION 3WAY, NO.2

main35230-21010iZZE128..ATM200104-200404

main35230-52010iZZE127,129200104-200109

main35230-52011iNZE127,ZZE127,129200109-200404

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-21010iZZE128..ATM200104-200404

main35240-52010iZZE127,129200104-200109

main35240-52011iNZE127,ZZE127,129200109-200404

35250ASOLENOID ASSY, TRANSMISSION, NO.3

main35250-52010iNZE127,ZZE127,129200104-200404

35251BODY, CHECK BALL

main35251-30020iNZE127,ZZE12#..ATM200104-200404

35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)

main90501-03005iNZE127,ZZE12#..ATM200104-200404

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-52020iNZE127,ZZE127,129200104-200404

35290ASOLENOID ASSY, LINE PRESSURE CONTROL

main35290-32010iZZE128..ATM200104-200404

main35290-52020iZZE127,129200104-200404

main35290-52030iNZE127200201-200404

35330STRAINER ASSY, VALVE BODY OIL

main35330-06010iZZE128..ATM200104-200404

main35330-0W020iNZE127,ZZE127,129200104-200404

35339GASKET, OIL STRAINER

main90301-32010iNZE127,ZZE12#..ATM200104-200404

35410BODY ASSY, TRANSMISSION VALVE

main35410-20500iZZE128..ATM200104-200404

main35410-42040iZZE127,129200104-200211

main35410-42041iZZE127,129200211-200303

main35410-42042iZZE127,129200303-200404

main35410-52060iNZE127200201-200211

main35410-52061iNZE127200211-200303

main35410-52062iNZE127200303-200403

35418VALVE, MANUAL

main35418-21011iZZE128..ATM200104-200404

main35418-52020iNZE127,ZZE127,129200104-200404

35423PISTON, B-2 ACCUMULATOR

main35403-52010iNZE127,ZZE127,129200104-200209

main35403-52020iNZE127,ZZE127,129200104-200209

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-20010iNZE127,ZZE127,129200104-200404

main90301-29011iNZE127,ZZE127,129200104-200404

35423ESPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON)

main90501-18119iZZE127,129200104-200404

main90501-20158iNZE127200201-200404

35425APISTON, C-2 ACCUMULATOR

main35405-52010iNZE127,ZZE127,129200104-200205

main35405-52020iNZE127,ZZE127,129200104-200205

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-24036iNZE127,ZZE127,129200104-200404

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-22010iNZE127,ZZE127,129200104-200404

main90301-35004iNZE127,ZZE127,129200104-200404

35426DPISTON, C-3 ACCUMULATOR

main35406-21010iZZE128..ATM200104-200404

main35426-52020iNZE127,ZZE127,129200104-200404

35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

main90501-23149iZZE127,129200104-200404

main90501-25057iNZE127200201-200404

main90905-01035iZZE128..ATM200104-200404

35426FRING, O (FOR C-3 ACCUMULATOR PISTON)

main90301-24016iNZE127,ZZE127,129200104-200404

main90301-29011iNZE127,ZZE127,129200104-200404

main90301-30007iZZE128..ATM200104-200404

35482BCLAMP, TEMPERATURE SENSOR

main35482-52020iNZE127,ZZE127,129200104-200404

35599COVER, MANUAL DETENT SPRING

main35599-21010iZZE128..ATM200104-200404

main35599-52010iNZE127,ZZE127,129200104-200404

82125JWIRE, TRANSMISSION

main82125-20260iNZE127,ZZE127,129200104-200404

main82125-21030iZZE128200104-200109

main82125-28180iZZE128..ATM200109-200404

82125LRING, O(FOR TRANSMISSION WIRE)

main90301-21009iNZE127,ZZE127,129200104-200404

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9010506028

main90105-06028

9010506069

main90105-06069

9010506072

main90105-06072

9010506272

main90105-06272

9010506273

main90105-06273

9151180614

main91511-80614

9161160620

main91611-60620

32 parts on this diagram · 3 diagrams in section
