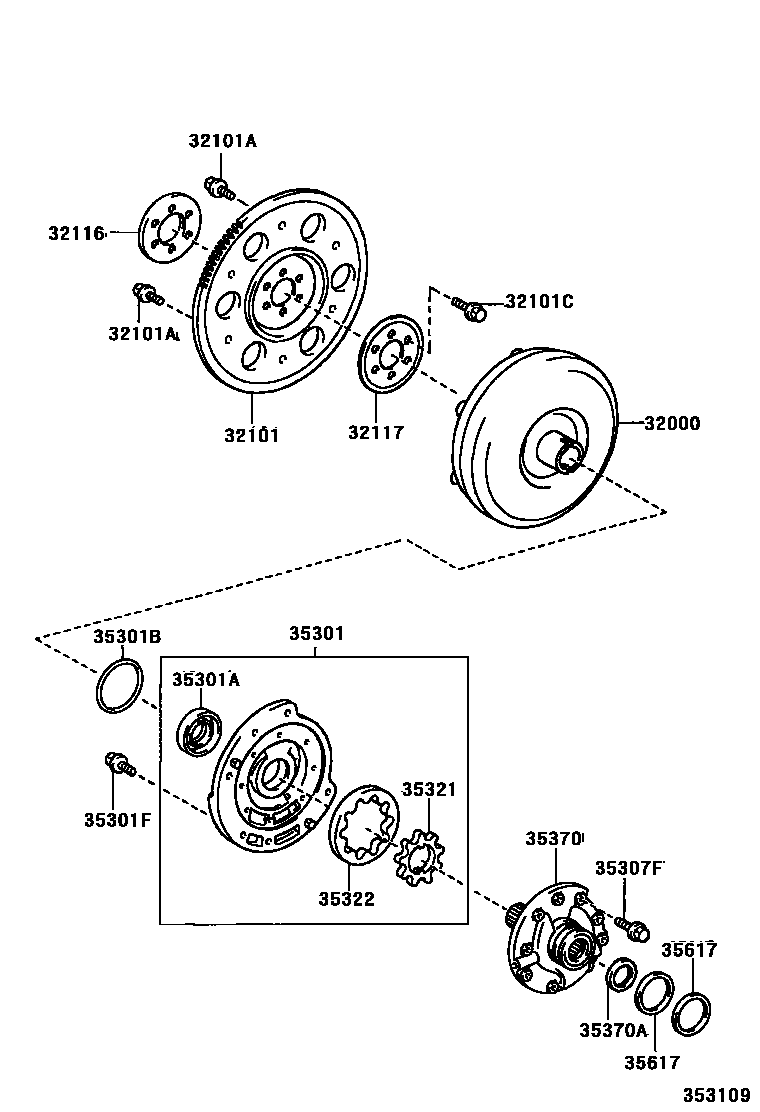

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1U340E,U341E,U341F 0002 1U240E

32000CONVERTER ASSY, TORQUE

main32000-20320iZZE128..ATM200104-200404

main32000-32160iZZE127200104-200404

main32000-63010iNZE127,ZZE129200104-200404

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12090iZZE127,129200104-200208

main32101-12091iZZE127,129200208-200404

main32101-20120iZZE128..ATM200104-200404

main32101-52020iNZE127200201-200208

main32101-52021iNZE127200208-200404

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08107iNZE127,ZZE127,129200104-200404

main90109-09001iZZE128..ATM200104-200404

main90119-08269×5iNZE127,ZZE127,129200104-200404

main90119-09025×5iZZE128..ATM200104-200404

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×6iNZE127200201-200404

32116SPACER, DRIVE PLATE, FRONT

main32116-12020iZZE127,129200104-200404

main32116-20060iZZE128..ATM200104-200404

main32116-52030iNZE127200201-200404

32117SPACER, DRIVE PLATE, REAR

main32117-12030iZZE127,129200104-200404

main32117-20070iZZE128..ATM200104-200404

main32117-52030iNZE127200201-200404

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-52040iNZE127,ZZE127,129200104-200404

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38064iZZE128..ATM200104-200206

main90311-38083iZZE128..ATM200206-200404

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99099iZZE128..ATM200104-200404

main90301-99124iNZE127,ZZE127,129200104-200404

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08050×7iZZE128..ATM200104-200404

main90105-08301×7iNZE127,ZZE127,129200104-200404

35307FBOLT (FOR STATOR SHAFT)

main90148-60027×10iNZE127,ZZE127,129; ZZE128..ATM200104-200404

35321GEAR, FRONT OIL PUMP DRIVE

main35321-21060iZZE128..ATM200104-200404

main35321-21070iZZE128..ATM200104-200404

main35321-21080iZZE128..ATM200104-200404

main35321-21090iZZE128..ATM200104-200404

main35321-21100iZZE128..ATM200104-200404

main35321-52060iNZE127,ZZE127,129200104-200404

main35321-52070iNZE127,ZZE127,129200104-200404

main35321-52080iNZE127,ZZE127,129200104-200404

main35321-52090iNZE127,ZZE127,129200104-200404

main35321-52100iNZE127,ZZE127,129200104-200404

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-21060iZZE128..ATM200104-200404

main35322-21070iZZE128..ATM200104-200404

main35322-21080iZZE128..ATM200104-200404

main35322-21090iZZE128..ATM200104-200404

main35322-21100iZZE128..ATM200104-200404

main35322-52060iNZE127,ZZE127,129200104-200404

main35322-52070iNZE127,ZZE127,129200104-200404

main35322-52080iNZE127,ZZE127,129200104-200404

main35322-52090iNZE127,ZZE127,129200104-200404

main35322-52100iNZE127,ZZE127,129200104-200404

35370SHAFT ASSY, STATOR

main35370-21030iZZE128..ATM200104-200404

main35370-52030iNZE127,ZZE127,129200104-200404

35370ABEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)

main90374-26003iNZE127,ZZE127,129200104-200403

35617RING, CLUTCH DRUM OIL SEAL

main35613-21010×2iZZE128..ATM200104-200404

main35613-52010×2iNZE127,ZZE127,129200104-200404

16 parts on this diagram · 2 diagrams in section
