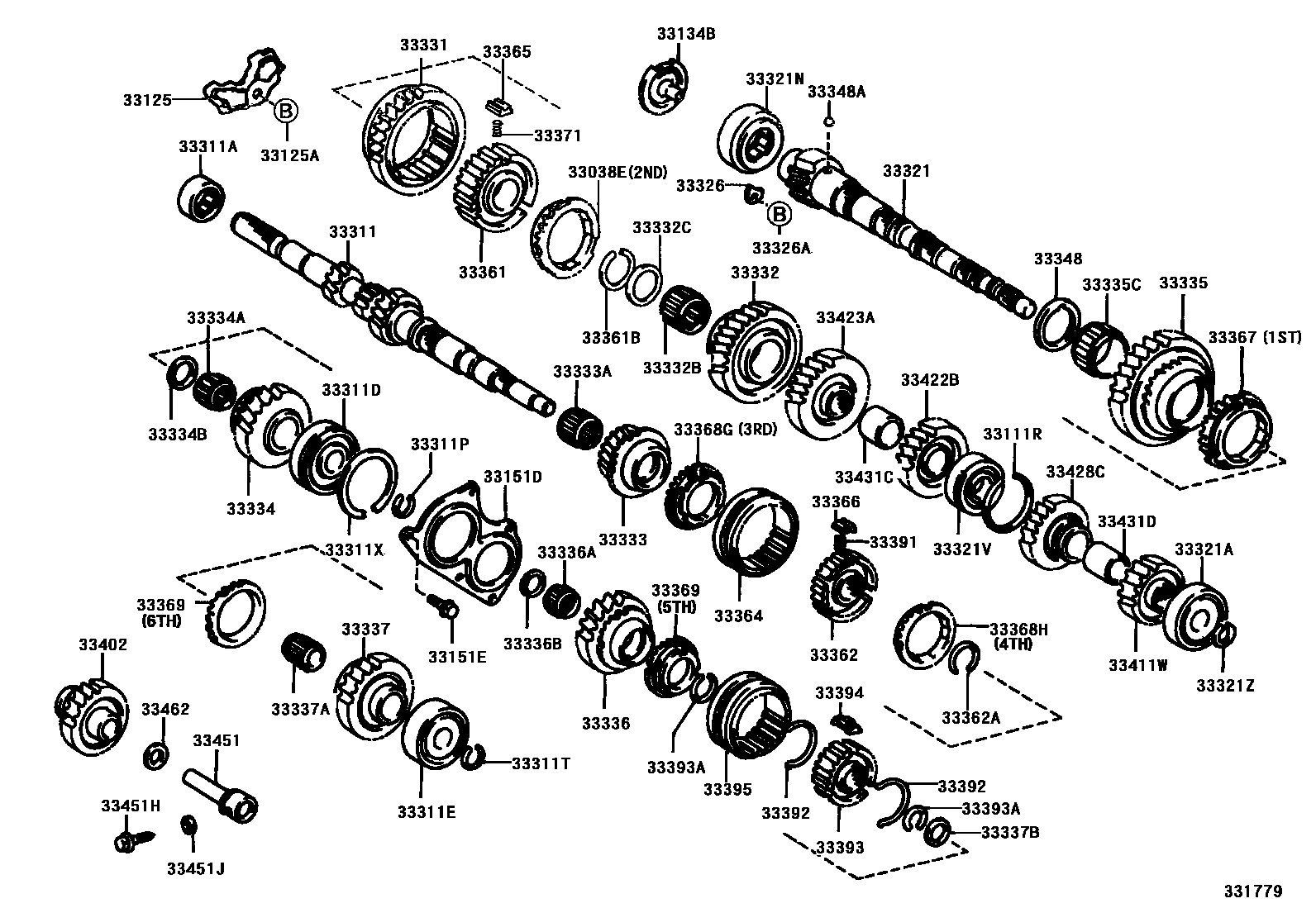

TRANSMISSION GEAR (MTM)
33038ERING SET, SYNCHRONIZER, NO.2
33111RRING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING)
33125RECEIVER, MANUAL TRANSAXLE CASE
33125ABOLT(FOR TRANSAXLE CASE RECEIVER)
33134BCOVER, OUTPUT SHAFT(MTM)
33151DRETAINER, BEARING, REAR(MTM)
33151EBOLT(FOR REAR BEARING RETAINER)
33311ABEARING (FOR INPUT SHAFT FRONT)
33311DBEARING, INPUT SHAFT
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
33311TRING, SHAFT SNAP (FOR INPUT SHAFT)
33311XRING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING)
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33321ZRING, SHAFT SNAP (FOR OUTPUT SHAFT FRONT)
33326PLATE, BEARING LOCK
33326ABOLT (FOR BEARING LOCK PLATE)
33331GEAR, REVERSE
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33332CSPACER (FOR 2ND GEAR BEARING)
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
33334BSPACER (FOR 4TH GEAR BEARING)
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
33336BSPACER (FOR 5TH GEAR BEARING)
33337GEAR SUB-ASSY, 6TH
33337ABEARING, NEEDLE ROLLER (FOR 6TH GEAR)
33337BSPACER (FOR 6TH GEAR)
33348WASHER, 1ST GEAR THRUST
33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)
33361HUB, TRANSMISSION CLUTCH, NO.1
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368GRING, SYNCHRONIZER (FOR 3RD GEAR)
33368HRING, SYNCHRONIZER (FOR 4TH GEAR)
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
33394KEY, SYNCHROMESH SHIFTING, NO.3
33395SLEEVE, TRANSMISSION HUB, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
33411WGEAR, COUNTER, 6TH
33422BGEAR, 4TH DRIVEN
33423AGEAR, 3RD DRIVEN
33428CGEAR, 5TH DRIVEN
33431CSPACER, OUTPUT GEAR
33431DSPACER, OUTPUT GEAR
33451SHAFT, REVERSE IDLER GEAR
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
33462WASHER, REVERSE IDLER THRUST
69 parts on this diagram · 1 diagram in section
