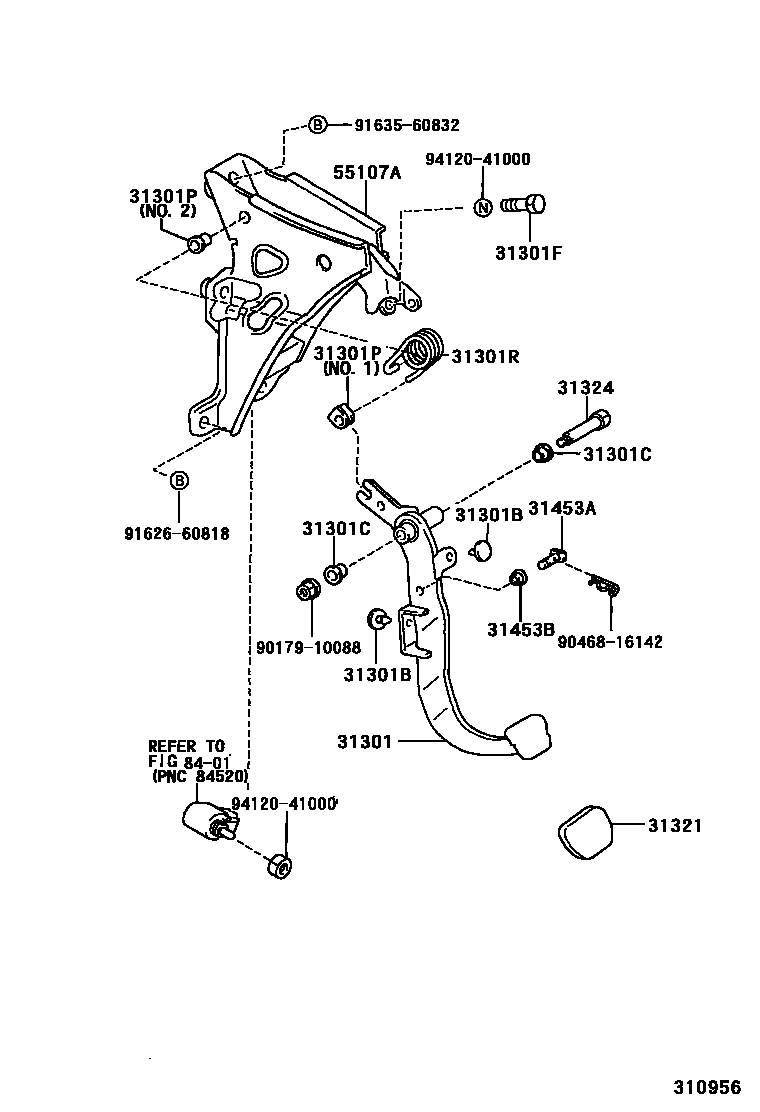

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-12450iZZE128..MTM200201

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036×2iZZE128..MTM200201

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iZZE128..MTM200201

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iZZE128..MTM200201

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90386-05017iZZE128..MTM200201

main90389-05019iZZE128..MTM200201

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03100iZZE128..MTM200201

31321PAD, CLUTCH PEDAL

main31321-52010iZZE128..MTM200201

31324SHAFT, CLUTCH PEDAL

main90109-10167iZZE128..MTM200201

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08243iZZE128..MTM200201

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iZZE128..MTM200201

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-12200iZZE128..MTM200201-200404

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017910088

main90179-10088

9046816142

main90468-16142

9162660818

main91626-60818

9163560832

main91635-60832

9412041000

main94120-41000

17 parts on this diagram · 2 diagrams in section
