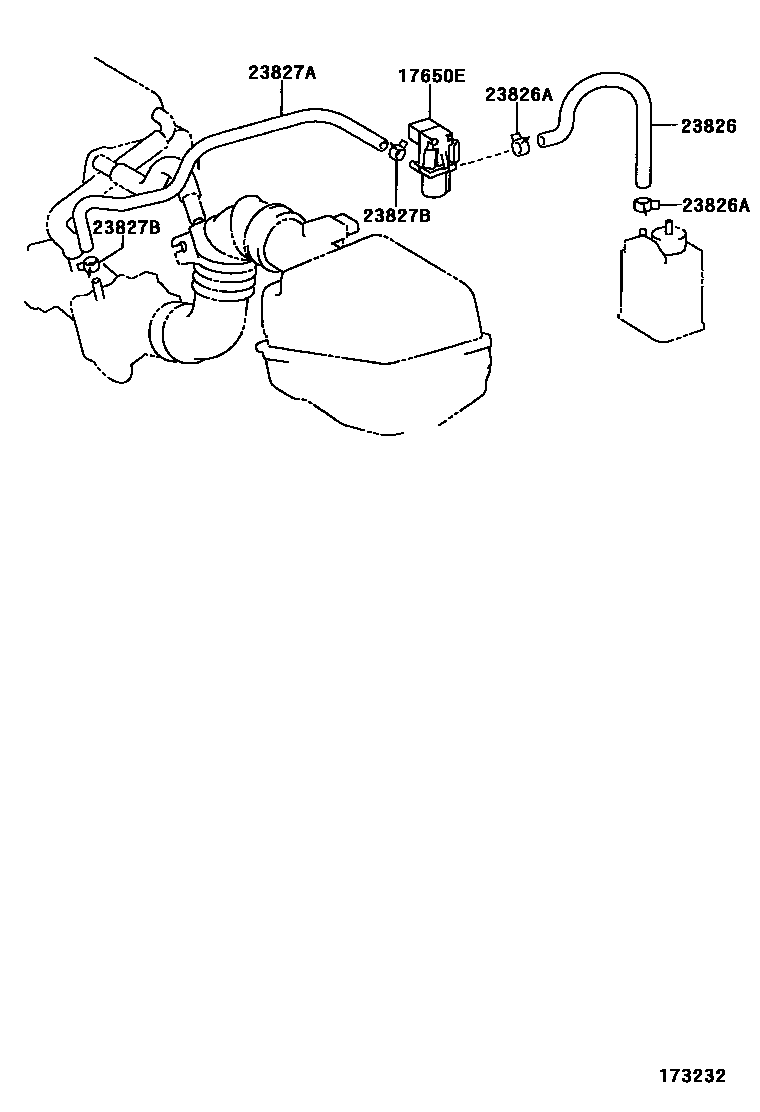

VACUUM PIPING

0001 1 0002 1 0003 1

17650EVALVE, VACUUM SWITCHING

main90910-12089i2ZZGE..ZZE128200104

main90910-12257i1NZFE..NZE127200201

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-21030i1ZZFE,2ZZGE..ZZE12#200109

main23826-21050i1ZZFE,2ZZGE..ZZE12#200104-200109

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96132-41100×2i1ZZFE,2ZZGE..ZZE12#200109

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-21030i1NZFE..NZE127200201

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90467-13069×2i1NZFE..NZE127200201

5 parts on this diagram · 3 diagrams in section
