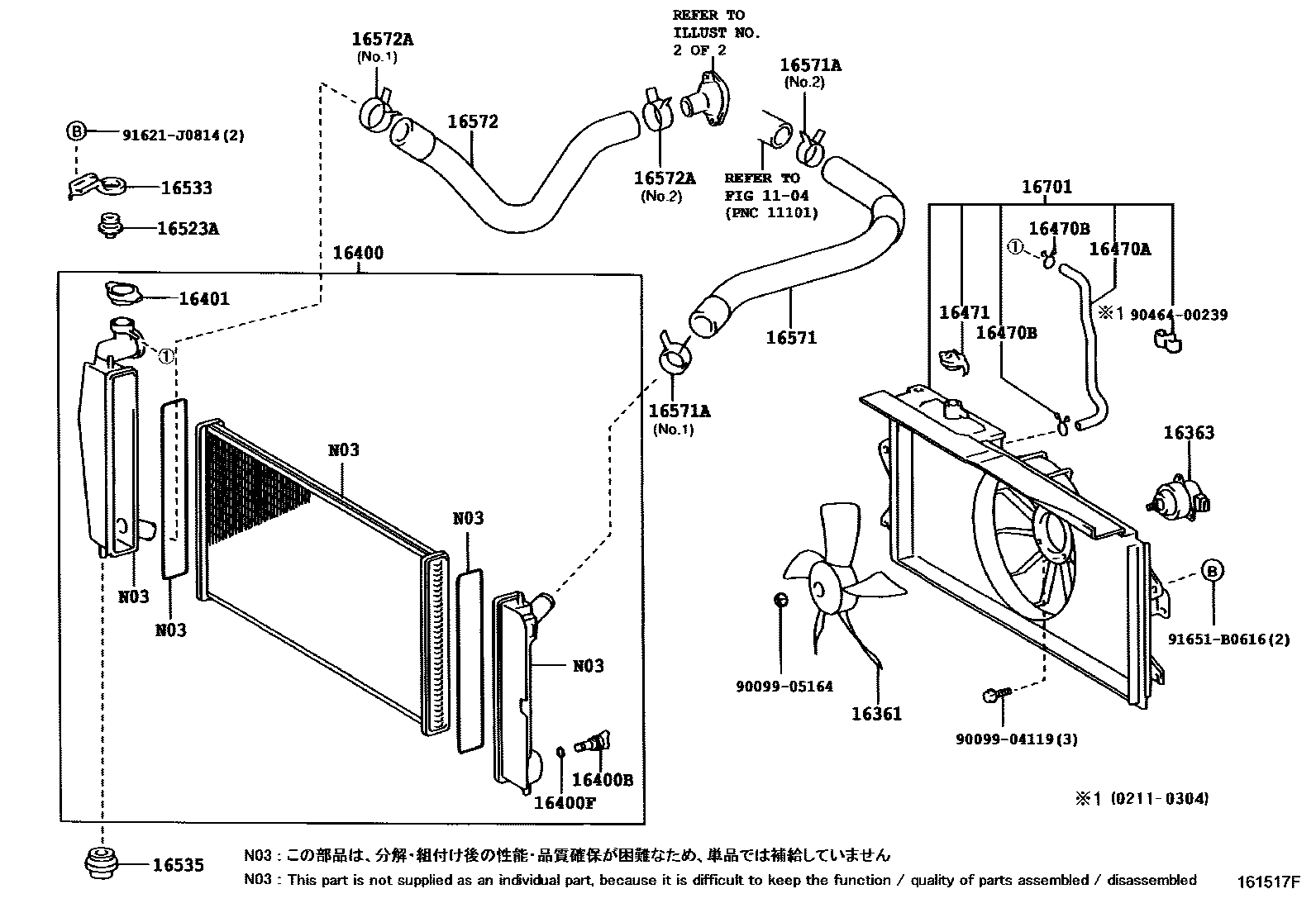

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1

1104CYLINDER HEAD

→ Go to FIG 11-04

16361FAN

main16361-21060i1NZFE..NZE127200201-200404

main16361-21070i1ZZFE..ZZE129200104

16363MOTOR, COOLING FAN

main16363-21050i1ZZFE..ZZE129200307-200404

main16363-23020i1NZFE..NZE127200201-200304

main16363-23030i1ZZFE..ZZE129200304-200307

main16363-28150i1NZFE..NZE127; 1ZZFE,2ZZGE..ZZE127,128200305-200404

16400RADIATOR ASSY

main16400-21140i2ZZGE..ZZE128..MTM200201

main16400-21160i1NZFE..NZE127200201-200404

main16400-21180i1ZZFE,2ZZGE..ZZE128,129..ATM200104

16400BPLUG, RADIATOR DRAIN COCK

main23322-54010i1NZFE..NZE127200201-200404

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1NZFE..NZE127200201-200404

16401CAP SUB-ASSY, RADIATOR

main16401-72090i1NZFE..NZE127200201-200404

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-21040i1NZFE..NZE127200201-200304

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1ZZFE,2ZZGE..ZZE127,128; 1ZZFE..ZZE129200210

16471CAP SUB-ASSY, RESERVE TANK

main16405-21030i1NZFE..NZE127200211-200404

main16471-23010i1ZZFE,2ZZGE..ZZE12#200104-200211

16523ACUSHION, RADIATOR SUPPORT

main16523-21020×2i1NZFE..NZE127200201-200404

16533SUPPORT, RADIATOR, UPPER

main16533-21020×2i1NZFE..NZE127200201-200404

16535SUPPORT, RADIATOR, LOWER

main16504-21010×2i1ZZFE..ZZE127,129200104-200109

main16504-21020×2i2ZZGE..ZZE128200104-200109

main16535-21040×2i1NZFE..NZE127200201-200404

main16535-21050×2i2ZZGE..ZZE128..ATM200109

main90480-40016×2i2ZZGE..ZZE128..MTM200201

16571HOSE, RADIATOR, INLET

main16571-21030i1NZFE..NZE127200201-200404

main16571-22070i1ZZFE,2ZZGE..ZZE12#200104

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-37002i1NZFE..NZE127200201-200404

main90467-34003i1ZZFE,2ZZGE..ZZE12#200104

main90467-34004i1NZFE..NZE127200201-200404

main90467-37002i1ZZFE,2ZZGE..ZZE12#200104-200204

main90467-37005i1ZZFE,2ZZGE..ZZE12#200204

16572HOSE, RADIATOR, OUTLET

main16572-21030i1NZFE..NZE127200201-200404

main16572-22070i1ZZFE..ZZE127,129200104

main16572-22080i2ZZGE..ZZE128200104

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-35001i1ZZFE,2ZZGE..ZZE12#200104

main90466-37002i1ZZFE,2ZZGE..ZZE12#200104

main90467-34004i1NZFE..NZE127200201-200404

16701SHROUD SUB-ASSY, FAN

main16711-21080i1ZZFE..ZZE129200104-200211

9009904119

main90099-04119

9009905164

main90099-05164

9046400239

main90464-00239

91621J0814

main91621-J0814

91651B0616

main91651-B0616

23 parts on this diagram · 5 diagrams in section
