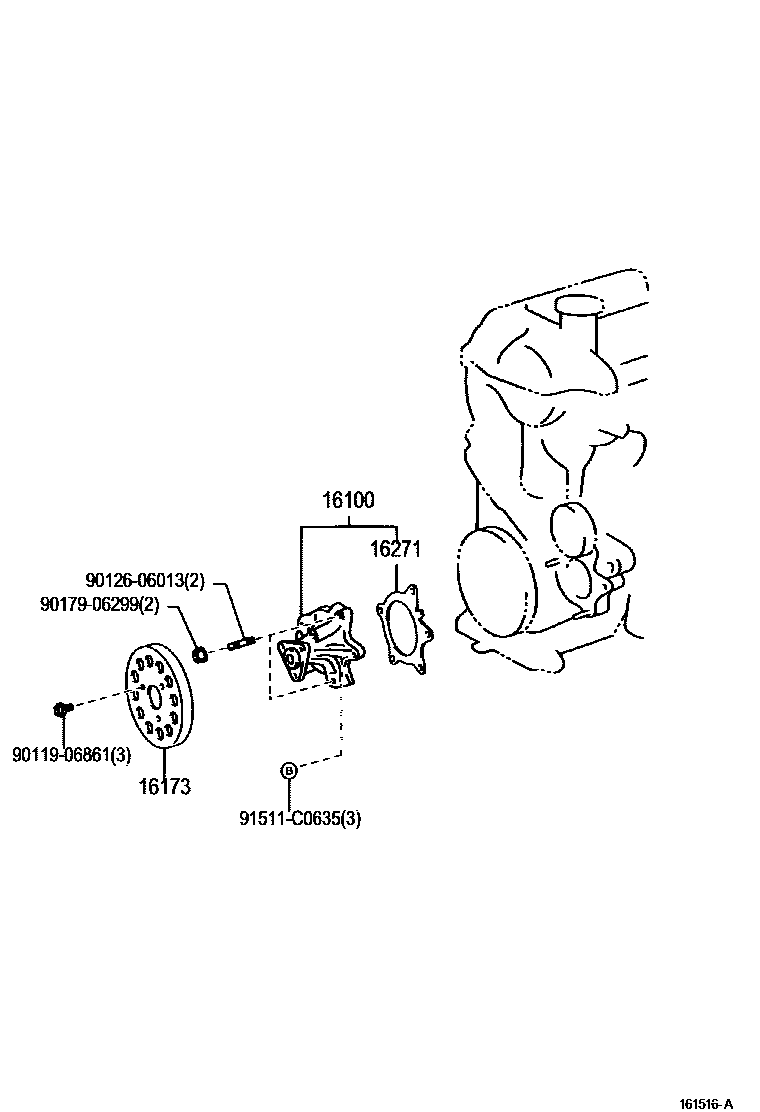

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-29095i1ZZFE..ZZE127,129200104-200107

main16100-29145i2ZZGE..ZZE128200104-200404

main16100-29155i1NZFE..NZE127200201-200404

main16100-29175i1ZZFE..ZZE127,129200107-200404

16173PULLEY, WATER PUMP

main16173-21020i1NZFE..NZE127200201-200404

main16173-88600i2ZZGE..ZZE128200104-200403

16271GASKET, WATER PUMP

main16271-21020i1NZFE..NZE127200201-200404

9011906861

main90119-06861

9012606013

main90126-06013

9017906299

main90179-06299

91511C0635

main91511-C0635

7 parts on this diagram · 3 diagrams in section
