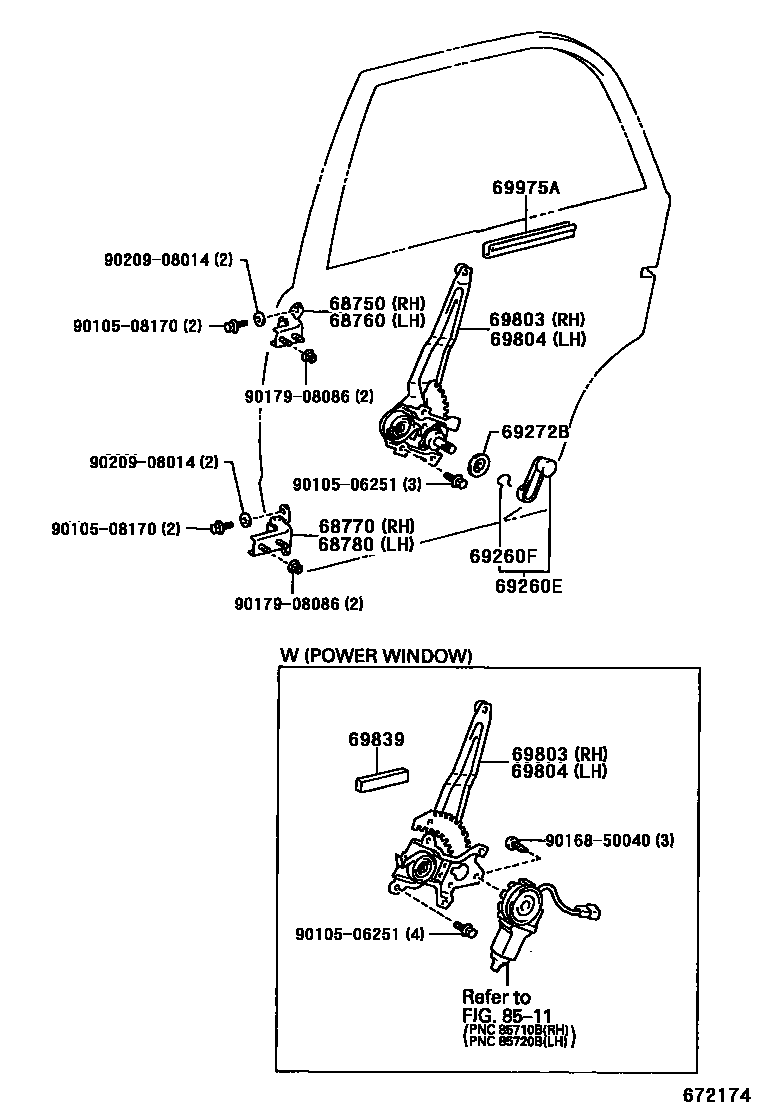

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-32060iAE11#199704-200207

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-32060iAE11#199508-199704

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-12100iAE11#199508-199704

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-12090iAE11#199704-200207

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-22030-P0×2iAE111,114..STOUR199508-199704

SHADOW GRAY,TRIM1#

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2iAE111,114..STOUR199508-199704

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-20020×2iAE111,114..STOUR199508-199704

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-12130iAE11#..BZT,ROSSO,VTOUR,ZTOUR; AE111,114..STOUR199704-200207

main69830-12290iAE111,114..STOUR199508-199704

main69830-12310iAE111,114..STOUR199704-200207

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-12130iAE111,114..STOUR; AE111,115..BZT,VTOUR,ZTOUR199508-199704

main69840-12290iAE111,114..STOUR199508-199704

main69840-12310iAE111,114..STOUR199704-200207

69839PAD, REAR DOOR WINDOW REGULATOR

main69839-12020×4iAE11#199508-199704

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-12010×2iAE111,114..ROSSO199804-200207

9010506251

main90105-06251

9010508170

main90105-08170

9016850040

main90168-50040

9017908086

main90179-08086

9020908014

main90209-08014

16 parts on this diagram · 1 diagram in section
