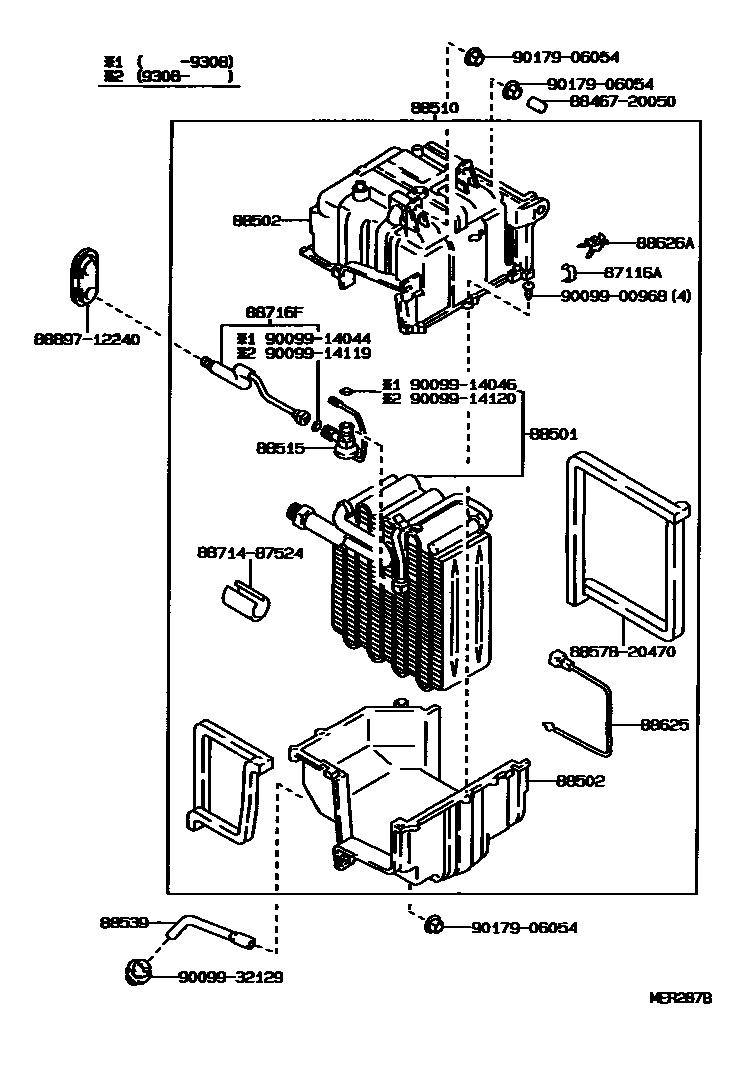

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010×3iAE95199308-199508

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-12330iAE95199009-199308

main88501-13030iAE95199308-199508

88502CASE SUB-ASSY, COOLING UNIT

main88502-12140iAE95199308-199508

UPPER

main88502-12150iAE95199308-199508

LOWER

88510UNIT ASSY, COOLER

main88510-12830iAE95199009-199308

main88510-1A400iAE95199308-199508

88515VALVE, COOLER EXPANSION

main88515-16040iAE95199009-199308

main88515-34010iAE95199308-199508

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-12090iAE95199009-199508

88625THERMISTOR, COOLER, NO.1

main88625-32040iAE95199009-199508

88626AHOLDER, THERMISTOR

main88626-40050iAE95199308-199508

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88726-12300iAE95199009-199308

main88726-12400iAE95199308-199508

8846720050CUSHION, COOLER CONDENSER, NO.1

main88467-20050

8857820470PAKING, COOLER AIR DUCT

main88578-20470

8871487524HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-87524

8889712240VALVE, COOLER MAGNET

main88897-12240

9009900968

main90099-00968

9009914044

main90099-14044

9009914046

main90099-14046

9009914119

main90099-14119

9009914120

main90099-14120

9009932129

main90099-32129

9017906054

main90179-06054

20 parts on this diagram · 2 diagrams in section
