HORN

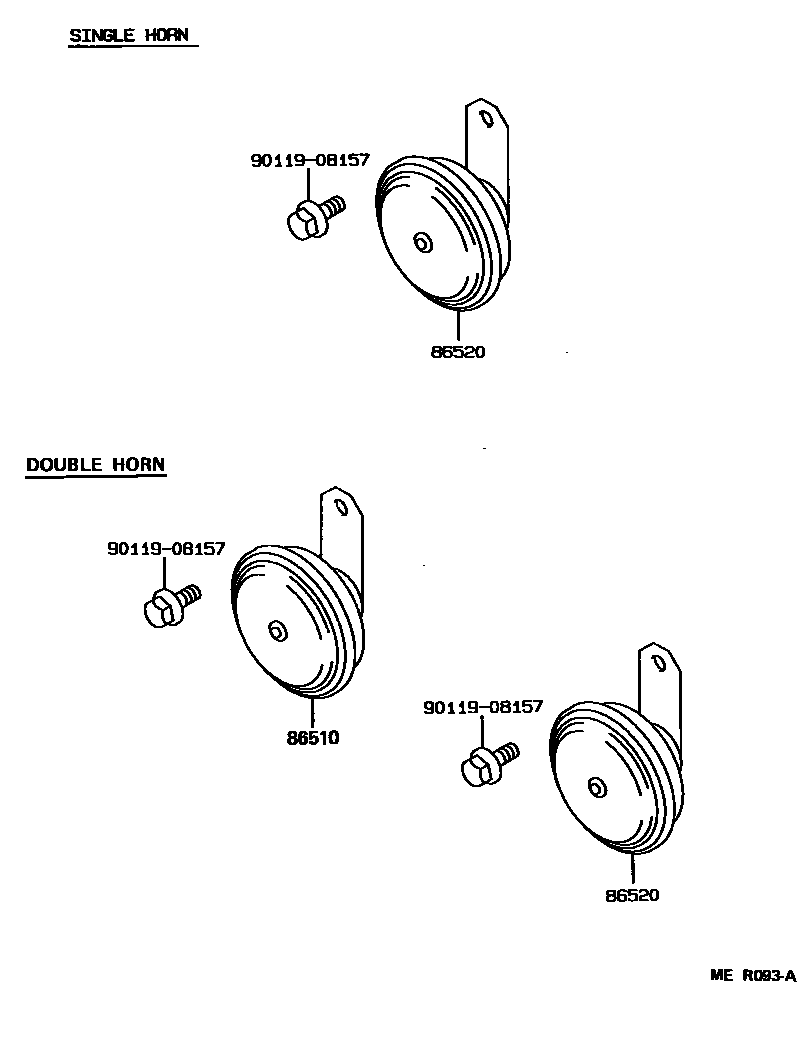

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-12270i199009-199508

main86510-12280i199009-199208

main86510-13010i199009-199208

86520HORN ASSY, LOW PITCHED

main86520-12220i199009-199508

main86520-12640i199009-199208

main86520-13010i199009-199208

9011908157

main90119-08157

3 parts on this diagram · 1 diagram in section
