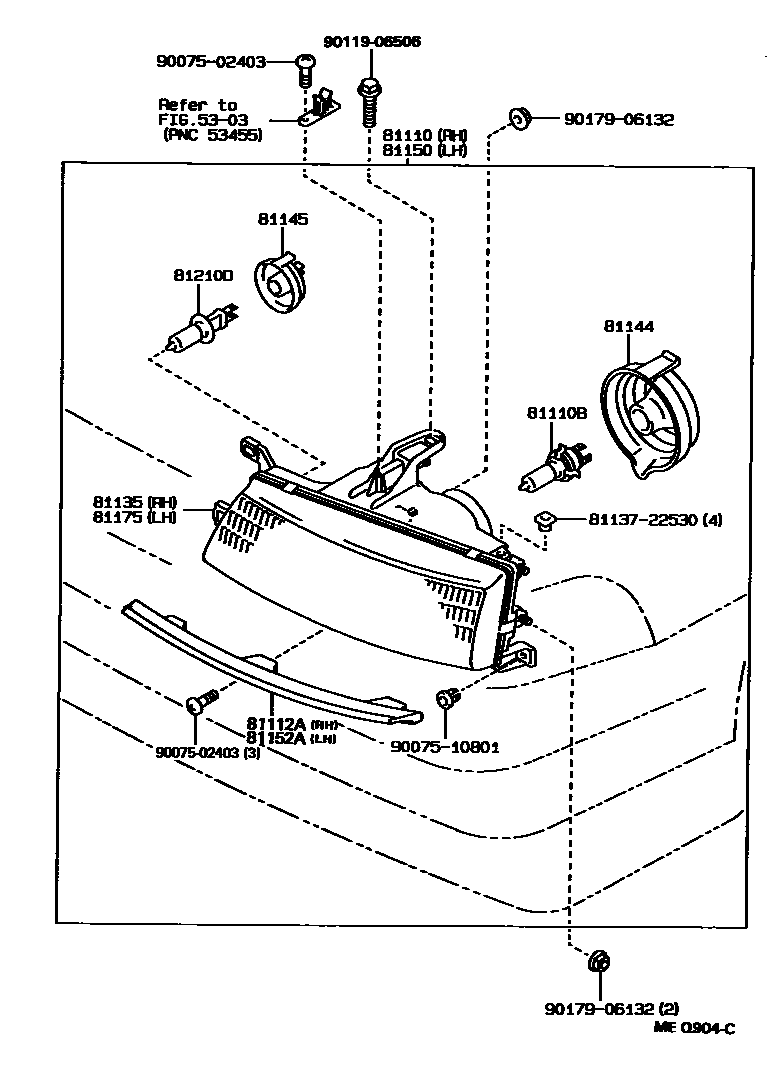

HEADLAMP

5303HOOD LOCK & HINGE

→ Go to FIG 53-03

81110HEADLAMP ASSY, RH

main81110-13110iAE95..AV2199009-199308

main81110-1E060iAE95..AV1199009-199308

main81110-1E070iAE95..AV2,RVS199009-199308

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2iAE95199308-199401

main90981-13016×2iAE95..AV2199009-199308

main90981-13022×2iAE95..AV1199009-199308

main90981-22004×2iAE95199401-199508

81112ARIM, HEADLAMP, RH

main81116-1A681iAE95199009-199508

81135UNIT ASSY, HEADLAMP, RH

main81130-1E060iAE95..AV1199009-199308

main81130-1E070iAE95199308-199508

81144COVER, HEADLAMP, NO.1

main81139-20730×2iAE95199009-199508

81145COVER, HEADLAMP, NO.2

main90075-99002×2iAE95199009-199508

81150HEADLAMP ASSY, LH

main81160-13110iAE95..AV2199009-199308

main81160-1E060iAE95..AV1199009-199308

main81160-1E070iAE95..AV2,RVS199009-199308

81152ARIM, HEADLAMP, LH

main81156-1A681iAE95199009-199508

81175UNIT ASSY, HEADLAMP, LH

main81170-1E060iAE95..AV1199009-199308

main81170-1E070iAE95..AV2,RVS199009-199308

81210DBULB, FOG LAMP

main90981-13038×2iAE95199009-199508

8113722530PROTECTOR, HEADLAMP, NO.2 RH

main81137-22530

9007502403

main90075-02403

9007510801

main90075-10801

9011906506

main90119-06506

9017906132

main90179-06132

16 parts on this diagram · 1 diagram in section
