BATTERY CARRIER

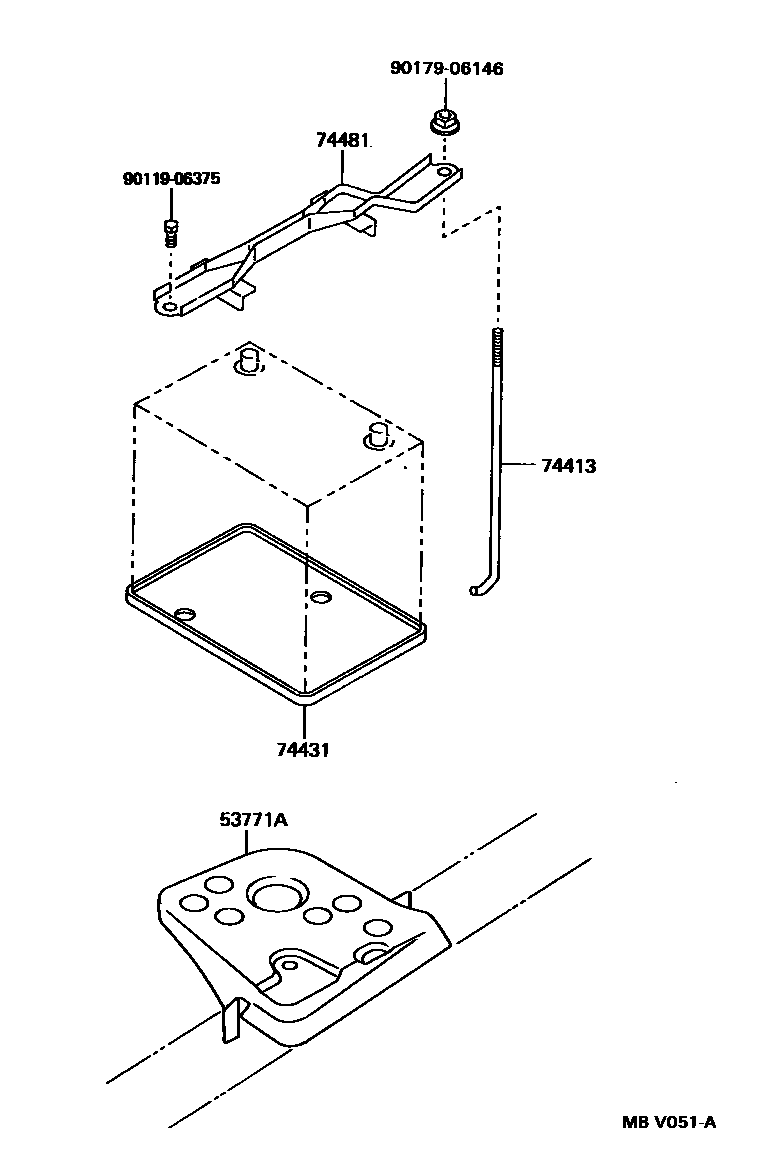

Parts diagram

53771ASUPPORT, BATTERY CARRIER

main53771-12100i199009-199508

74413BOLT, BATTERY CLAMP

main74451-12050i199009-199508

74431TRAY, BATTERY

main74431-14010i199009-199508

main74431-14020i199009-199508

74481CLAMP, BATTERY HOLD DOWN

main74404-12250i199009-199508

9011906375

main90119-06375

9017906146

main90179-06146

6 parts on this diagram · 1 diagram in section
