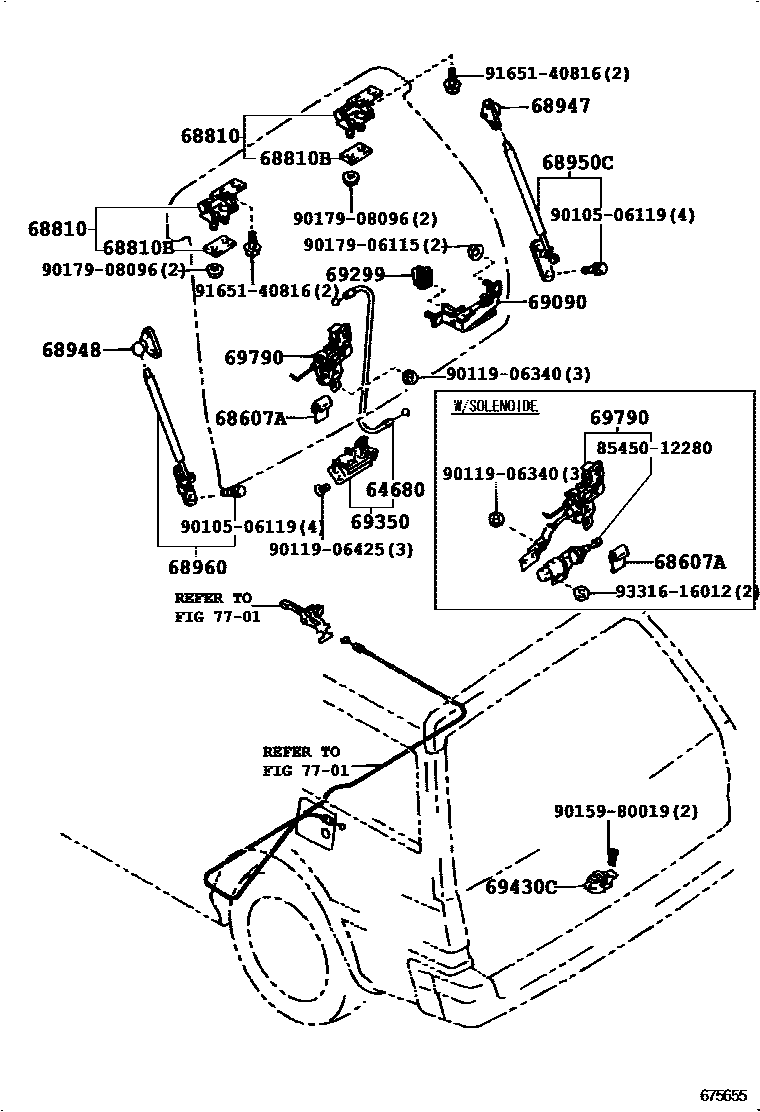

BACK DOOR LOCK & HANDLE
64680CABLE ASSY, BACK DOOR LOCK CONTROL
68607ACLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)
68810HINGE ASSY, BACK DOOR, UPPER
68810BPAD, BACK DOOR HINGE
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
69090HANDLE ASSY, BACK DOOR, OUTSIDE
BLACK M,22S
BLACK M,22S ,23S
RED MICA,20G
GRAY M,040 ,6K6
GRAY M,040 ,6M3
DARK BLUE MICA M,25M
RED MICA M,27T
DARK GREEN MICA M,20W
DEEP TURQUOISE ME,21W
10TH ANNIVERSARY,DEEP TURQUOISE ME,25W
DK BLUE MICA M,26T
69299GROMMET, BACK DOOR HANDLE
69350LOCK ASSY, BACK DOOR
69430CSTRIKER ASSY, BACK DOOR LOCK
69790CONTROL ASSY, BACK DOOR LOCK
7701FUEL TANK & TUBE
8545012280SOLENOID ASSY, DOOR CONTROL, FRONT RH
main85450-12280
9010506119
main90105-06119
9011906340
main90119-06340
9011906425
main90119-06425
9015980019
main90159-80019
9017906115
main90179-06115
9017908096
main90179-08096
9165140816
main91651-40816
9331616012
main93316-16012
23 parts on this diagram · 1 diagram in section
