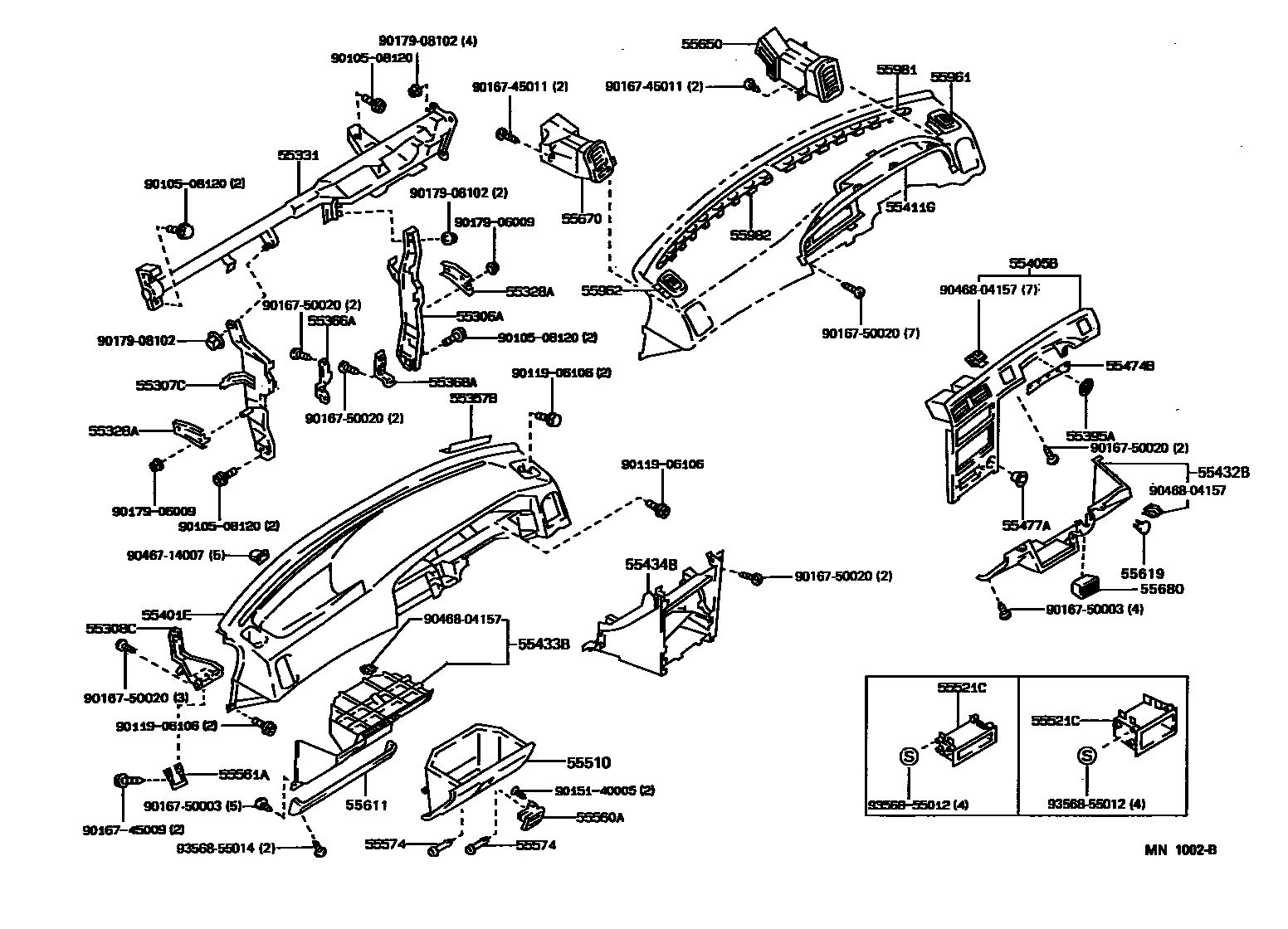

INSTRUMENT PANEL & GLOVE COMPARTMENT

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12100iAE95199009-199508

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-12150iAE95199009-199508

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-12150iAE95199009-199508

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-12040×2iAE95199009-199508

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-12160iAE95199009-199508

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-22010×2iAE95199009-199508

55366ABRACKET, RADIO MOUNTING, NO.1

main55366-12010iAE95..AV1199009-199508

55368ABRACKET, RADIO MOUNTING, NO.2

main55368-12010iAE95199009-199508

55395ARETAINER, INSTRUMENT PANEL CLAMP

main55395-12010×5iAE95..AV2199009-199508

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-12230-03iAE95199009-199301

SHADOW GRAY,TRIM1#

main55401-12230-04iAE95199009-199301

DARK BLUE,TRIM8#

main55401-12250-03iAE95199301-199508

SHADOW GRAY,TRIM1#

main55401-12250-04iAE95199301-199308

DARK BLUE,TRIM8#

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-12440-01iAE95..AV2199009-199308

BLACK,TRIM1#,8#

main55405-12440-03iAE95199009-199508

SHADOW GRAY,TRIM1#

main55405-12440-04iAE95199009-199308

DARK BLUE,TRIM8#

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-12810iAE95..AV1199009-199508

main55411-12850iAE95..AV2,RVS199009-199508

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-12260-03iAE95199009-199508

SHADOW GRAY,TRIM1#

main55432-12260-04iAE95199009-199308

DARK BLUE,TRIM8#

main55432-12260-13iAE95..AV2199009-199508

main55432-12260-14iAE95..AV2199009-199308

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-12040-03iAE95..AV1,RVS199009-199508

SHADOW GRAY,TRIM1#

main55433-12040-04iAE95..AV1,RVS199009-199308

DARK BLUE,TRIM8#

main55433-12050-03iAE95..AV2199009-199508

SHADOW GRAY,TRIM1#

main55433-12050-04iAE95..AV2199009-199308

DARK BLUE,TRIM8#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-12040-03iAE95199009-199508

SHADOW GRAY,TRIM1#

main55434-12040-04iAE95199009-199308

DARK BLUE,TRIM8#

55474BGARNISH, INSTRUMENT CLUSTER FINISH PANEL

main55474-12120iAE95..AV2199009-199508

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-12080iAE95199009-199508

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-12250-03iAE95199009-199508

SHADOW GRAY,TRIM1#

main55550-12250-04iAE95199009-199308

DARK BLUE,TRIM8#

55521CCOVER, STEREO OPENING

main55521-16030iAE95..AV1; AE95..AV2,RVS199009-199508

main55521-16040iAE95..AV1199009-199508

2 DIN

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-16040-03iAE95199009-199508

SHADOW GRAY,TRIM1#

main55560-16040-14iAE95199009-199308

DARK BLUE,TRIM8#

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-12050iAE95199009-199508

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010×2iAE95199009-199508

55611TRAY, INSTRUMENT PANEL UNDER

main55611-12100-03iAE95..AV2199009-199508

SHADOW GRAY,TRIM1#

main55611-12100-04iAE95..AV2199009-199308

DARK BLUE,TRIM8#

55619COVER, SWITCH HOLE

main55619-14010-04iAE95199009-199308

DARK BLUE,TRIM8#

main55619-14010-33iAE95199009-199508

SHADOW GRAY,TRIM1#

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-12140-03iAE95199009-199508

SHADOW GRAY,TRIM1#

main55650-12140-04iAE95199009-199308

DARK BLUE,TRIM8#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-12110-03iAE95199009-199508

SHADOW GRAY,TRIM1#

main55670-12110-04iAE95199009-199308

DARK BLUE,TRIM8#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14030-01iAE95..AV2199009-199308

BLACK,TRIM1#,8#

main55680-14030-13iAE95199009-199308

SHADOW GRAY,TRIM1#

main55680-14030-J0iAE95199009-199308

DARK BLUE,TRIM8#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-12140-03iAE95199009-199508

SHADOW GRAY,TRIM1#

main55961-12140-04iAE95199009-199308

DARK BLUE,TRIM8#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-12120-03iAE95199009-199508

SHADOW GRAY,TRIM1#

main55962-12120-04iAE95199009-199308

DARK BLUE,TRIM8#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-12030-03iAE95199009-199508

SHADOW GRAY,TRIM1#

main55981-12030-04iAE95199009-199308

DARK BLUE,TRIM8#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-12030-03iAE95199009-199508

SHADOW GRAY,TRIM1#

main55982-12030-04iAE95199009-199308

DARK BLUE,TRIM8#

9010508120

main90105-08120

9011906106

main90119-06106

9015140005

main90151-40005

9016745009

main90167-45009

9016745011

main90167-45011

9016750003

main90167-50003

9016750020

main90167-50020

9017906009

main90179-06009

9017908102

main90179-08102

9046714007

main90467-14007

9046804157

main90468-04157

9356855012

main93568-55012

9356855014

main93568-55014

44 parts on this diagram · 1 diagram in section
