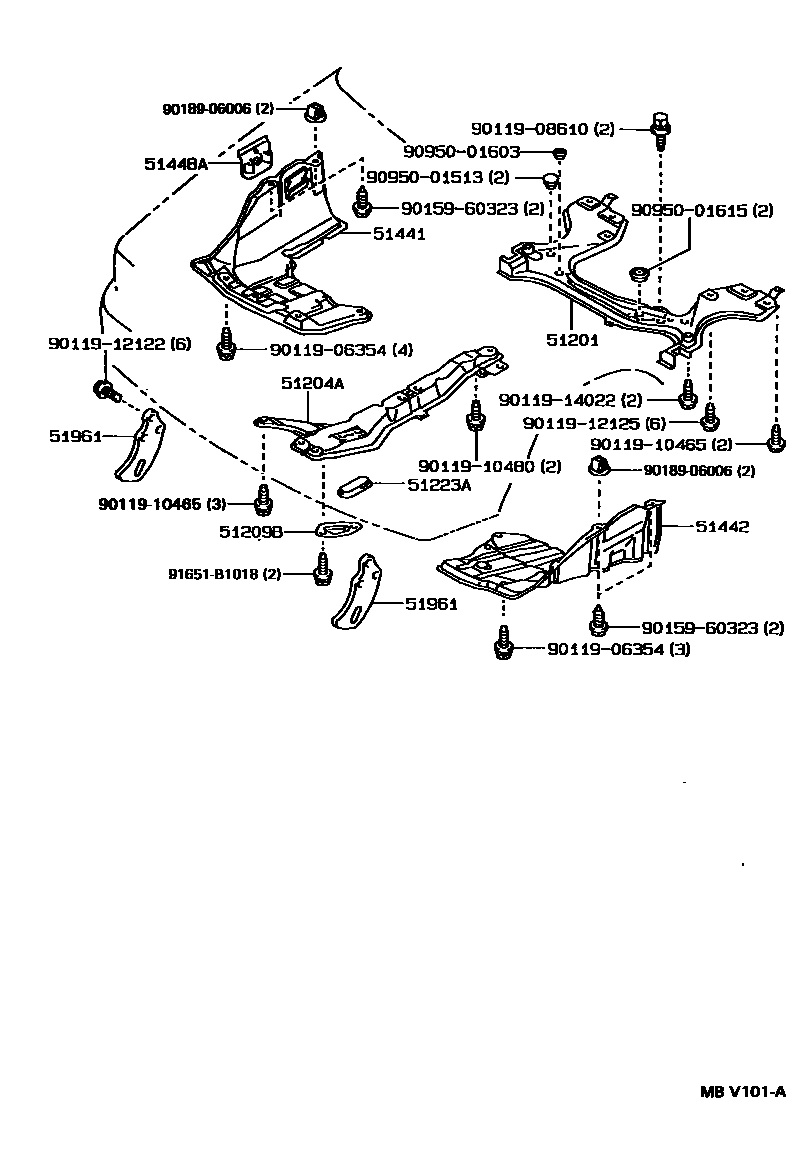

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12290iAE95199009-199508

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-12070iAE95199009-199508

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-20010iAE95199009-199508

51223ACOVER, ENGINE MOUNTING HOLE

main51223-20020iAE95199009-199208

main51223-20030iAE95199208-199508

51441COVER, ENGINE UNDER, NO.1

main51441-12120iAE95199009-199508

51442COVER, ENGINE UNDER, NO.2

main51442-12050iAE95..5F199009-199508

main51442-12060iAE95..4FC199009-199508

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20010iAE95199009-199508

51961HOOK, NO.1

main51963-12180×2iAE95199009-199508

9011906354

main90119-06354

9011908610

main90119-08610

9011910465

main90119-10465

9011910480

main90119-10480

9011912122

main90119-12122

9011912125

main90119-12125

9011914022

main90119-14022

9015960323

main90159-60323

9018906006

main90189-06006

9095001513

main90950-01513

9095001603

main90950-01603

9095001615

main90950-01615

91651B1018

main91651-B1018

21 parts on this diagram · 1 diagram in section
