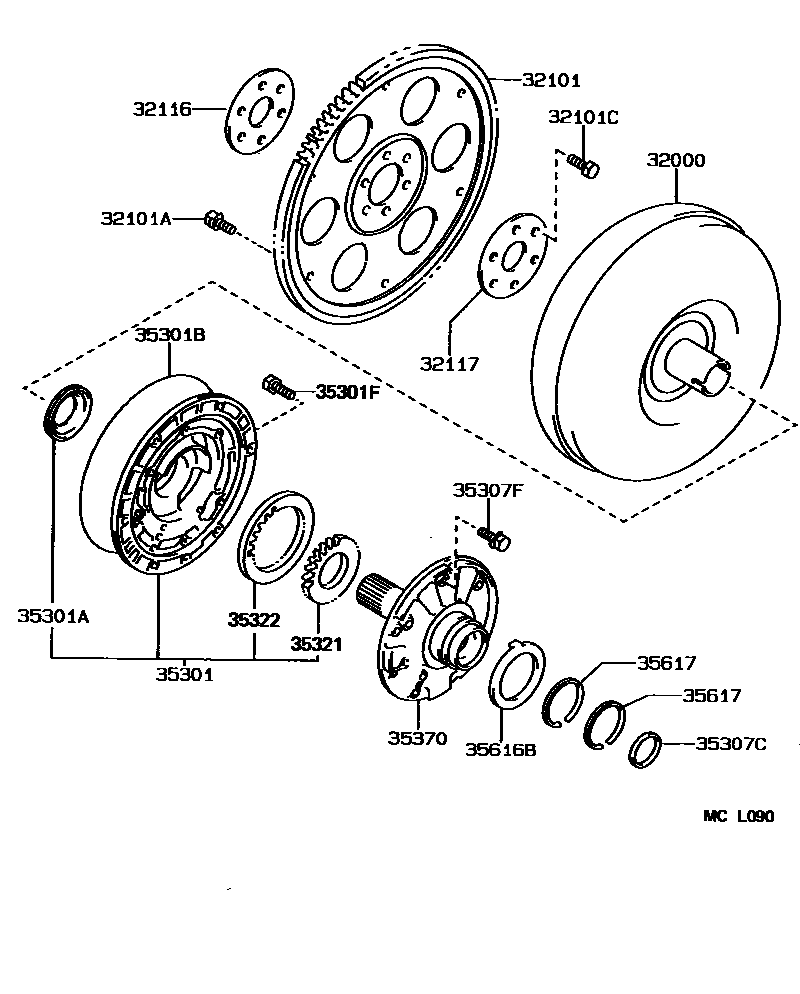

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-16060iAE95..4FC199009-199508

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12060iAE95..4FC199009-199508

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iAE95..4FC199301-199508

main90119-08498×5iAE95..4FC199009-199301

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×6iAE95..4FC199009-199508

32116SPACER, DRIVE PLATE, FRONT

main32116-12010iAE95..4FC199009-199508

32117SPACER, DRIVE PLATE, REAR

main32117-12010iAE95..4FC199009-199508

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-12010iAE95..4FC199009-199508

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iAE95..4FC199009-199508

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99024iAE95..4FC199009-199508

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08198×6iAE95..4FC199009-199508

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-32020iAE95..4FC199009-199508

main35789-32030iAE95..4FC199009-199508

35307FBOLT (FOR STATOR SHAFT)

main90119-06180×11iAE95..4FC199009-199508

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12020iAE95..4FC199009-199508

main35321-12030iAE95..4FC199405-199508

main35321-12040iAE95..4FC199405-199508

main35321-12050iAE95..4FC199405-199508

main35321-12060iAE95..4FC199405-199508

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12010iAE95..4FC199405-199508

main35322-12020iAE95..4FC199405-199508

main35322-12030iAE95..4FC199405-199508

main35322-12040iAE95..4FC199405-199508

main35322-12050iAE95..4FC199405-199508

main35322-35010iAE95..4FC199009-199405

35370SHAFT ASSY, STATOR

main35370-12040iAE95..4FC199009-199508

35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)

main35616-32010iAE95..4FC199009-199508

35617RING, CLUTCH DRUM OIL SEAL

main35617-32011×2iAE95..4FC199009-199508

17 parts on this diagram · 1 diagram in section
