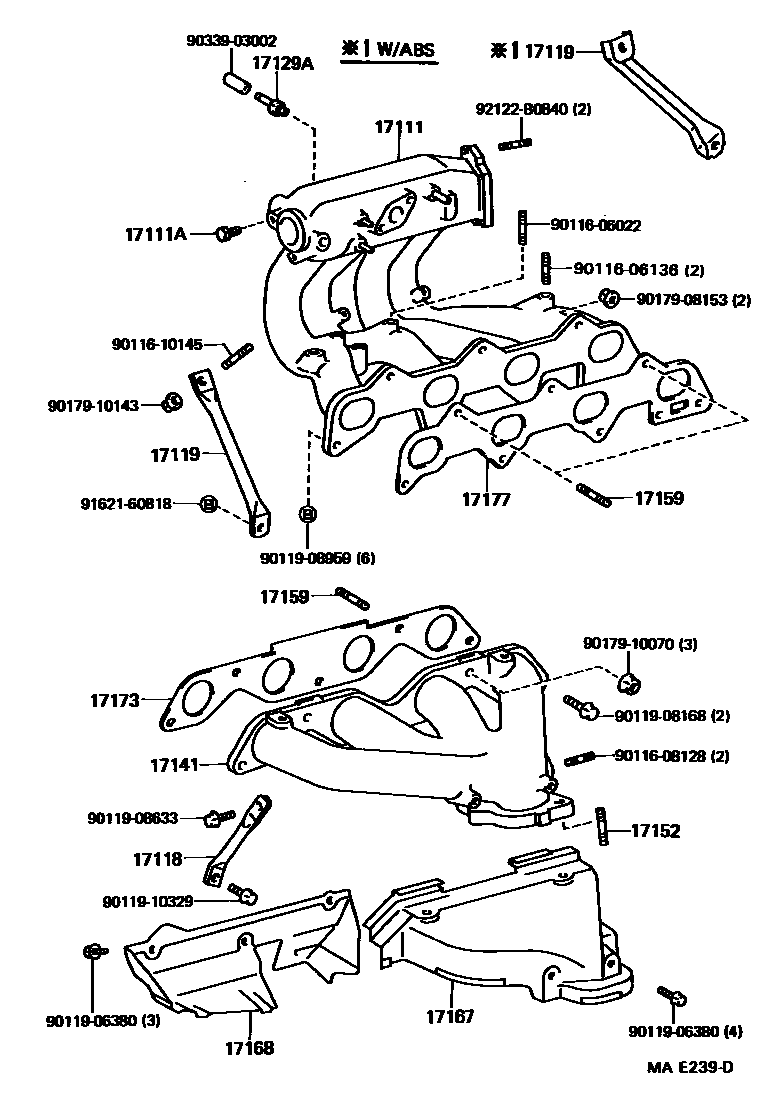

MANIFOLD

17111MANIFOLD, INTAKE

main17101-16150i4AFHE..AE95199009-199508

17111APLUG, NO.1

main90345-51006×3i4AFHE..AE95199009-199508

17118STAY, MANIFOLD

main17118-16050i4AFHE..AE95199009-199508

17119STAY, MANIFOLD, NO.2

main17139-16050i4AFHE..AE95199009-199508

main17139-16070i4AFHE..AE95..5F199009-199508

17129AUNION, NO.1

main90404-51010×2i4AFHE..AE95199009-199508

17141MANIFOLD, EXHAUST

main17141-16230i4AFHE..AE95199009-199508

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10146×3i4AFHE..AE95199009-199508

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main92112-60825×2i4AFHE..AE95199009-199508

INTAKE MANIFOLD

main92112-61028×3i4AFHE..AE95199009-199508

EXHAUST SIDE

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-16130i4AFHE..AE95199009-199206

main17167-16131i4AFHE..AE95199206-199508

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-16080i4AFHE..AE95199009-199402

main17168-16100i4AFHE..AE95199402-199508

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-15011i4AFHE..AE95199009-199107

main17173-15040i4AFHE..AE95199107-199508

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-16031i4AFHE..AE95199009-199508

9011606022

main90116-06022

9011606136

main90116-06136

9011608128

main90116-08128

9011610145

main90116-10145

9011906380

main90119-06380

9011908168

main90119-08168

9011908633

main90119-08633

9011908959

main90119-08959

9011910329

main90119-10329

9017908153

main90179-08153

9017910070

main90179-10070

9017910143

main90179-10143

9033903002

main90339-03002

9162160818

main91621-60818

92122B0840

main92122-B0840

27 parts on this diagram · 1 diagram in section
