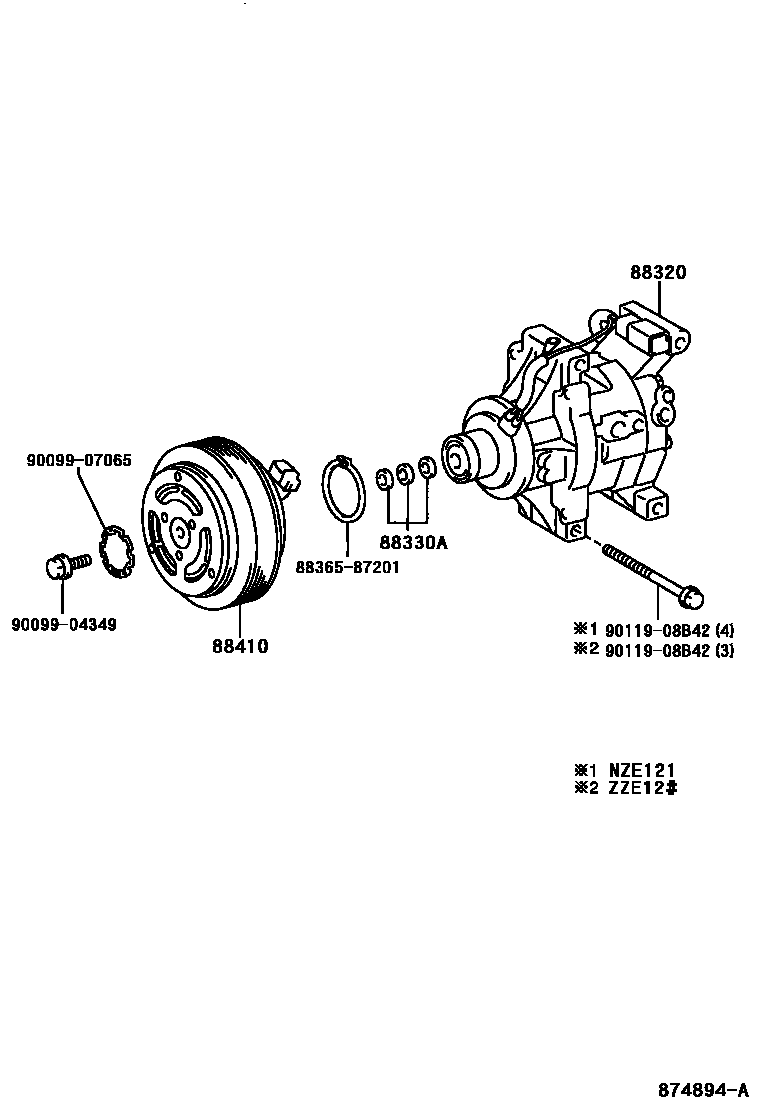

HEATING & AIR CONDITIONING - COMPRESSOR

88320COMPRESSOR ASSY, COOLER

main88320-1A481iNZE121200308

main88320-1A491iZZE12#200105-200209

main88320-1A550iNZE121200304-200308

main88320-1A570iZZE12#200304-200308

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iZZE12#200304

88410CLUTCH ASSY, MAGNET

main88410-1A210iNZE121200105-200209

main88410-1A220iZZE12#200105-200209

main88410-1A260iZZE12#200304-200308

main88410-1A290iZZE12#200308

main88410-52140iNZE121200209-200304

main88410-52230iNZE121200308

8836587201RING, SNAP

main88365-87201

9009904349

main90099-04349

9009907065

main90099-07065

9011908B42

main90119-08B42

7 parts on this diagram · 1 diagram in section
