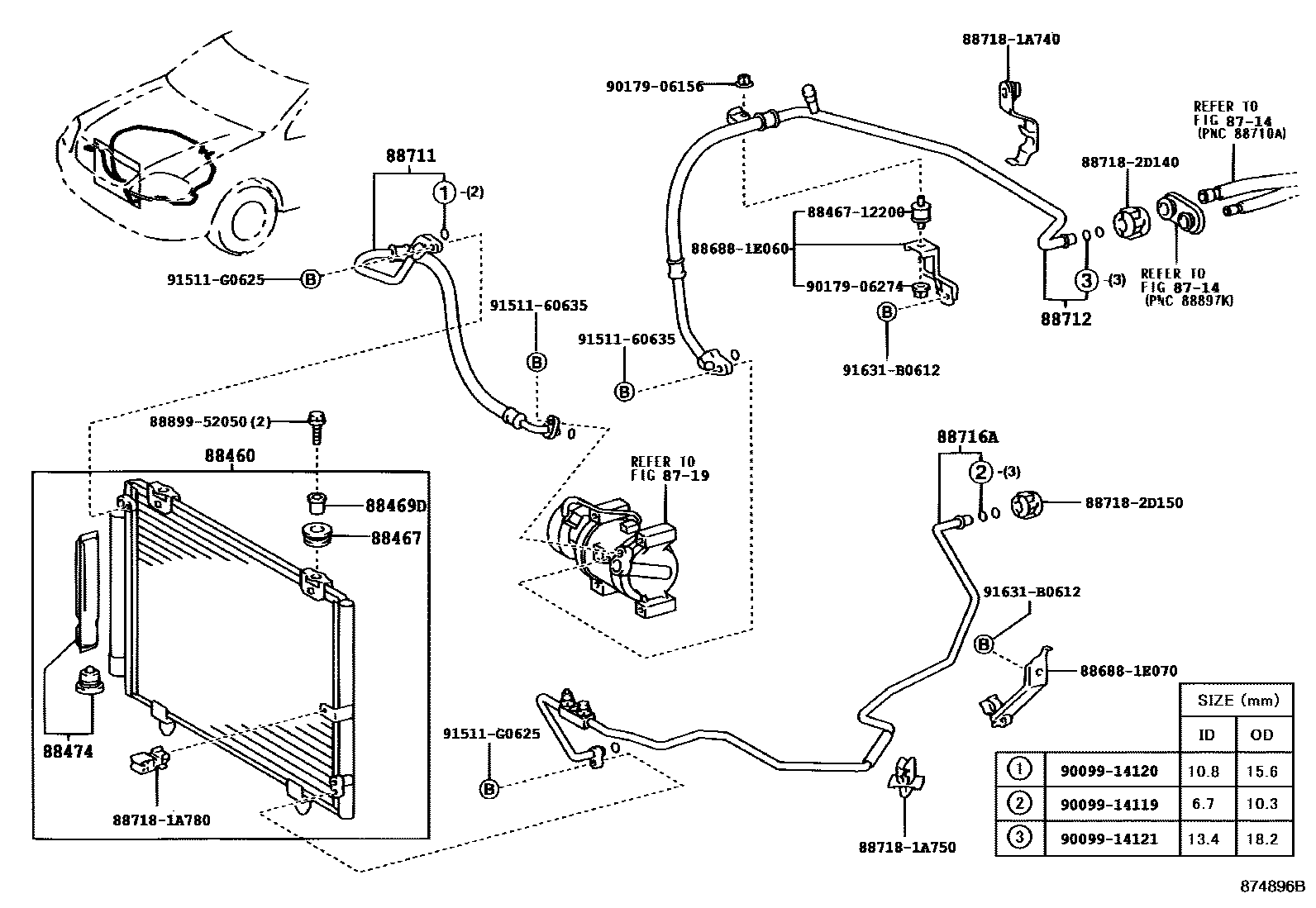

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88460CONDENSER ASSY, COOLER

main88450-12240iNZE121,ZZE12#200105-200207

main88450-12241iNZE121,ZZE12#200207-200304

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12180iNZE121,ZZE12#200105-200304

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-52010iNZE121,ZZE12#200105-200304

88474DRYER, COOLER

main88474-17010iNZE121,ZZE12#200207-200304

main88474-47010iNZE121,ZZE12#200105-200207

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-12530iNZE121200105-200210

main88703-12540iZZE12#200105-200210

main88703-12620iNZE121200211-200608

main88703-12621iNZE121200609

main88703-12630iZZE122200211-200608

main88703-12631iZZE122200609

main88703-12650iZZE124200211-200608

main88703-12651iZZE124200609

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-13040iNZE121200105-200608

main88704-13041iNZE121200609

main88704-13050iZZE12#200105-200608

main88704-13051iZZE12#200609

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-12510iNZE121,ZZE12#200105-200304

main88710-13080iNZE121,ZZE12#200304-200608

main88710-13081iNZE121,ZZE12#200609

8846712200CUSHION, COOLER CONDENSER, NO.1

main88467-12200

886881E060BRACKET, COOLER DIAPHRAGM

main88688-1E060

886881E070BRACKET, COOLER DIAPHRAGM

main88688-1E070

887181A740PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A740

887181A750PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A750

887181A780PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A780

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8889952050COVER, EVAPORATOR

main88899-52050

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9017906156

main90179-06156

9017906274

main90179-06274

9151160635

main91511-60635

91511G0625

main91511-G0625

91631B0612

main91631-B0612

26 parts on this diagram · 2 diagrams in section
