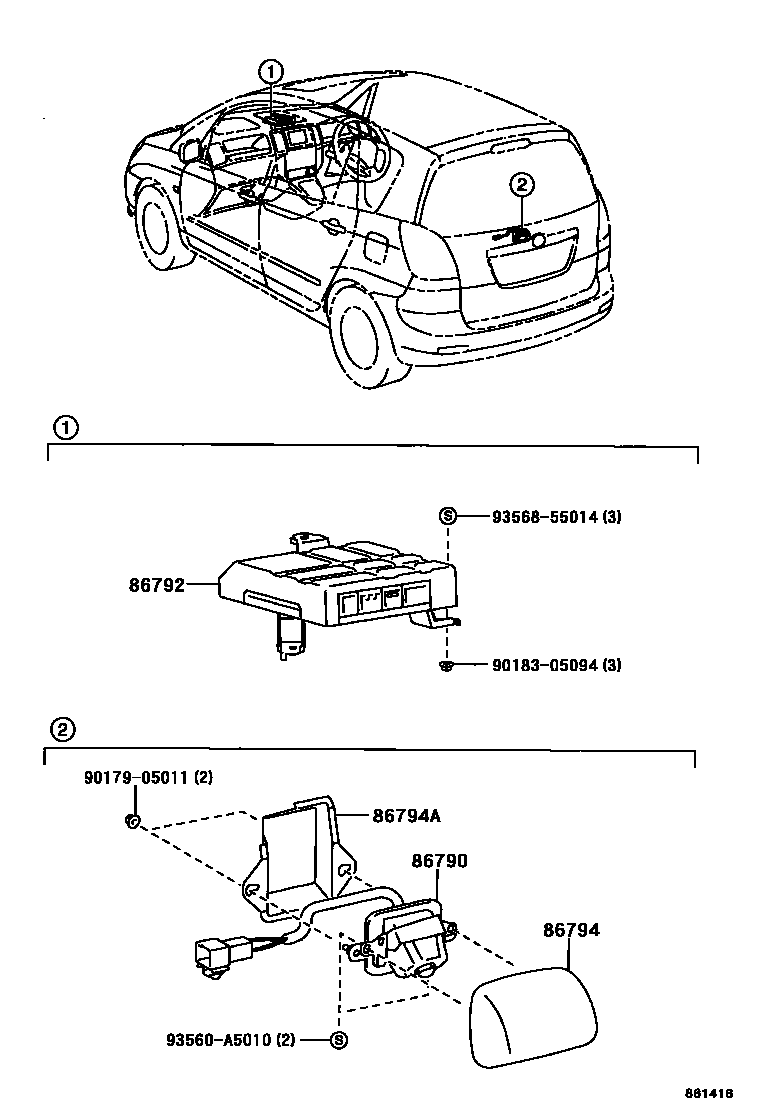

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1

86790CAMERA ASSY, TELEVISION

main86790-13020iNZE121,ZZE12#200105-200304

main86790-13040iNZE121,ZZE12#200304-200706

main86790-13060-A0iNZE121,ZZE12#200304-200602

main86790-13060-B0iNZE121,ZZE12#200304-200602

main86790-13060-B1iNZE121,ZZE12#200304-200602

main86790-13060-F0iNZE121,ZZE12#200304-200602

main86790-13061-A0iNZE121,ZZE12#200603-200706

main86790-13061-B0iNZE121,ZZE12#200603-200706

main86790-13061-B1iNZE121,ZZE12#200603-200706

main86790-13061-F0iNZE121,ZZE12#200603-200706

86792CONTROLLER, TELEVISION CAMERA

main86792-13020iZZE12#200105-200304

main86792-13030iNZE121200105-200304

86794COVER, TELEVISION CAMERA WIRE

main86794-13020-A0iNZE121,ZZE124..07S..V200204-200304

main86794-13020-B0iNZE121,ZZE12#200105-200304

SILVER ME.GR.,1D9

main86794-13020-B1iNZE121,ZZE124..07S..V200204-200304

main86794-13020-C0iNZE121,ZZE124..07S..X200111-200304

main86794-13020-D0iNZE121,ZZE12#200105-200304

RED M.M.,3N8

main86794-13020-D1iNZE121,ZZE12#200105-200304

BORDEAUX MC.,3P2

main86794-13020-F0iNZE121,ZZE12#200105-200304

GOLD ME.,585

main86794-13020-J2iNZE121,ZZE124..07S..V200204-200304

main86794-13030iNZE121,ZZE12#200304

86794ACOVER, TELEVISION CAMERA WIRE, NO.2

main86795-13010iNZE121,ZZE12#200105-200304

9017905011

main90179-05011

9018305094

main90183-05094

93560A5010

main93560-A5010

9356855014

main93568-55014

8 parts on this diagram · 2 diagrams in section
