WIRING & CLAMP

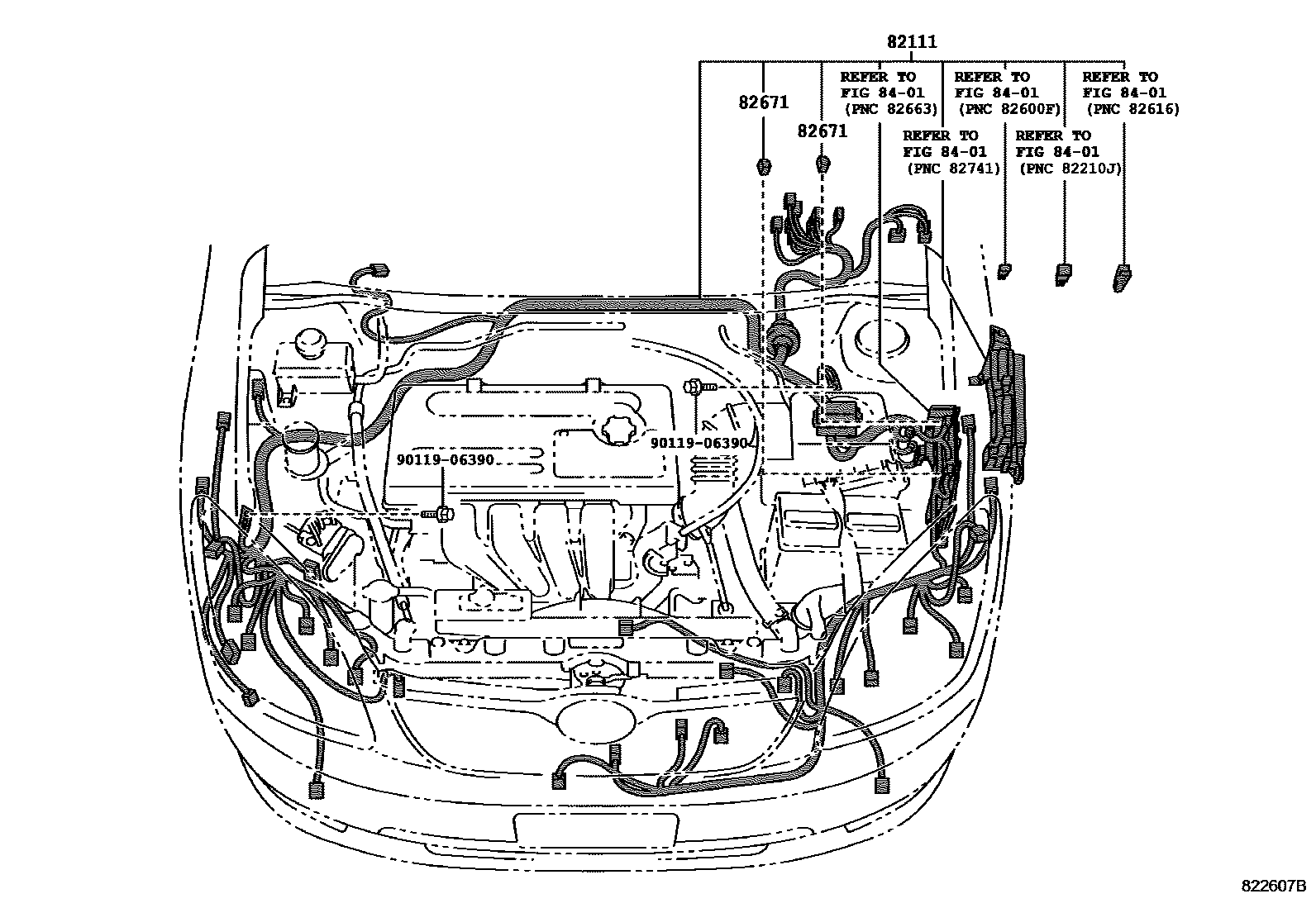

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-13630i200105-200304

main82111-13640i200105-200304

main82111-13740i200108-200304

main82111-13820i200105-200109

main82111-13821i200109-200304

main82111-13830i200105-200109

main82111-13831i200109-200304

main82111-13840i200108-200109

main82111-13841i200109-200304

main82111-1F040i200304-200509

main82111-1F041i200509

main82111-1F050i200304-200509

main82111-1F051i200509

main82111-1F060i200304-200509

main82111-1F061i200509

main82111-1F070i200304-200509

main82111-1F071i200509

main82111-1F080i200304-200509

main82111-1F081i200509

main82111-1F090i200304-200509

main82111-1F091i200509

main82111-1F100i200304-200509

main82111-1F101i200509

main82111-1F110i200304-200509

main82111-1F111i200509

main82111-1F120i200304-200509

main82111-1F121i200509

main82111-1F190i200304-200509

main82111-1F191i200509

main82111-1F200i200304-200509

main82111-1F201i200509

main82111-1F210i200304-200509

main82111-1F211i200509

82671BLOCK, JUNCTION

main82671-30360×2i200105-200304

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906390

main90119-06390

4 parts on this diagram · 11 diagrams in section
