HEADLAMP

0001 1��(�������������) 0002 1��(������-����������) 0003 1��(�������������) 0004 1��(��������� ��������) 0005 1

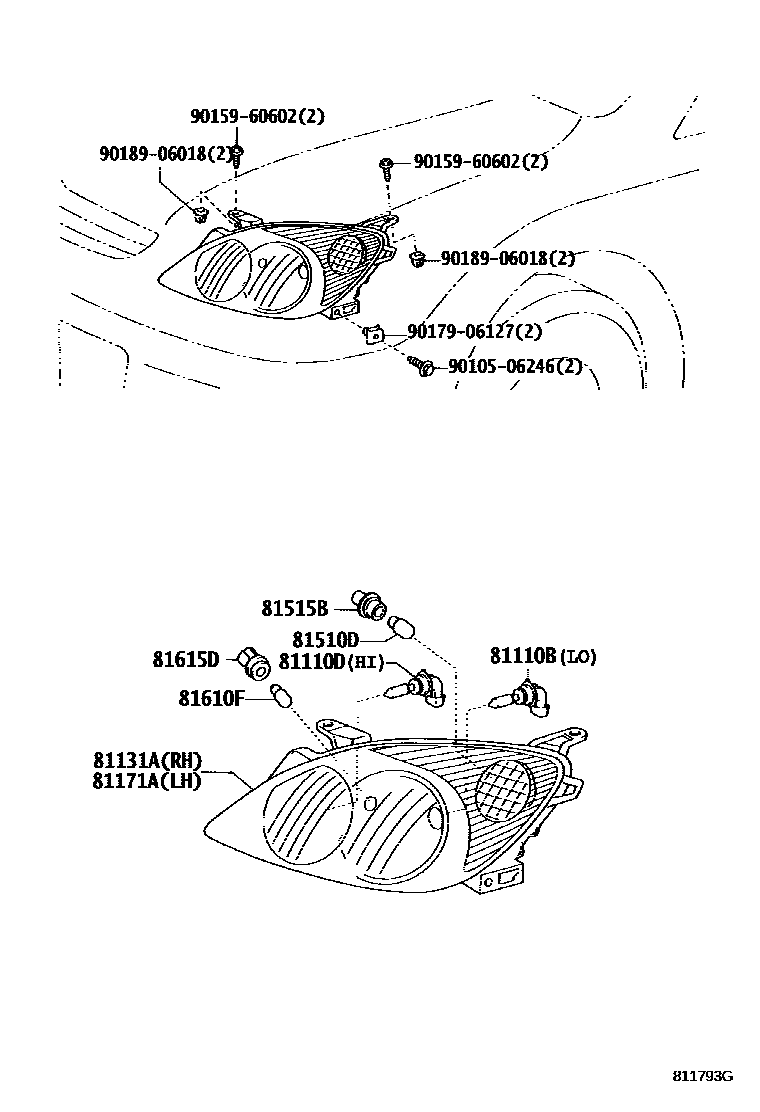

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81040×2iNZE121,ZZE122200105-200106

main90981-13047×2iNZE121,ZZE12#200106-200304

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81041×2iNZE121,ZZE12#200105-200304

main90981-13046×2iNZE121,ZZE12#200304-200706

81131AUNIT, HEADLAMP, RH

main81130-13230iZZE124..V,X;NZE121,ZZE122;ZZE124..07S..SAER200105-200304

main81130-13270iNZE121,ZZE12#..SAER,X200105-200304

main81130-13320iNZE121,ZZE12#..X200304-200508

main81130-13370iNZE121,ZZE12#..X200509-200706

81171AUNIT, HEADLAMP, LH

main81170-13230iZZE124..V,X;NZE121,ZZE122;ZZE124..07S..SAER200105-200304

main81170-13270iNZE121,ZZE12#..SAER,X200105-200304

main81170-13320iNZE121,ZZE12#..X200304-200508

main81170-13370iNZE121,ZZE12#..X200509-200706

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2iNZE121,ZZE12#200105-200304

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iNZE121,ZZE12#200105-200304

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iNZE121,ZZE12#200105-200304

81615DSOCKET, CLEARANCE LAMP

main90075-60001×2iNZE121,ZZE12#200105-200304

main90075-60005×2iNZE121,ZZE12#..SAER,X200105-200304

9010506246

main90105-06246

9015960602

main90159-60602

9017906127

main90179-06127

9018906018

main90189-06018

12 parts on this diagram · 5 diagrams in section
