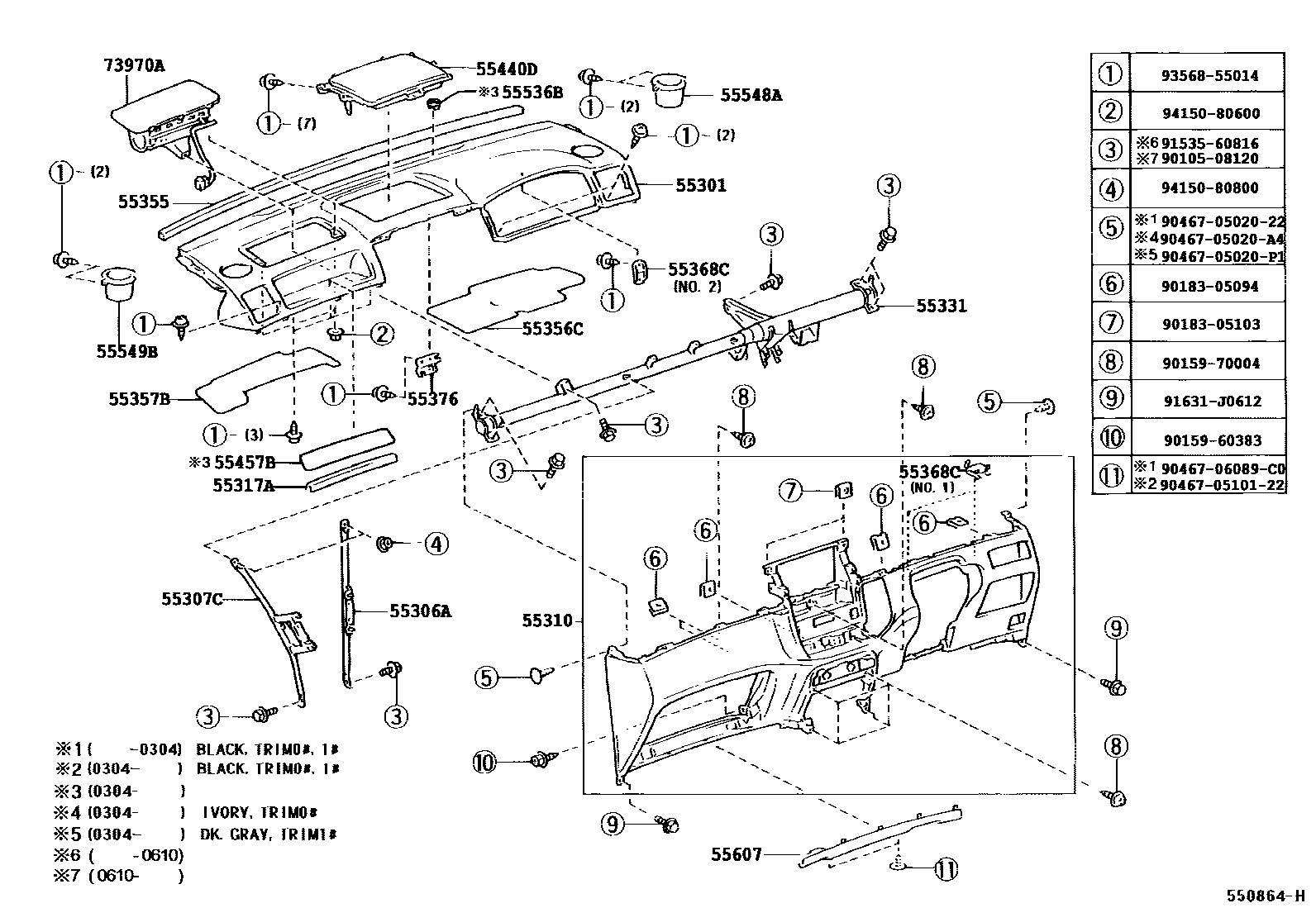

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55300-13010-B0iNZE121,ZZE124..07S..V200206-200304

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-13020iNZE121,ZZE12#200304

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-13020iNZE121,ZZE12#200105-200304

55310PANEL ASSY, INSTRUMENT, LOWER

main55310-13010-A1iNZE121,ZZE12#..V,X200105-200304

IVORY,TRIM0#

main55310-13010-B1iNZE121,ZZE12#200304-200706

DK.GRAY,TRIM1#

main55310-13030-A2iNZE121,ZZE12#..X200304-200706

main55310-13030-B2iNZE121,ZZE12#200304-200706

55317APANEL, INSTRUMENT SIDE, RH

main55317-13030-B0iNZE121,ZZE124..07S..V200204-200304

main55317-13050iNZE121,ZZE12#200304-200706

main55317-13050-B0iNZE121,ZZE124..X200304-200305

main55317-13060-B0iNZE121,ZZE12#..V,X200105-200304

DK.GRAY,TRIM0#

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-13030iZZE12#200105-200111

main55330-13031iZZE12#200111-200304

main55330-13040iNZE121200105-200111

main55330-13041iNZE121200111-200304

main55330-13060iZZE12#200304

main55330-13070iNZE121200304

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52012iNZE121,ZZE12#200304

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-13010iNZE121,ZZE12#200105-200304

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-13040iNZE121,ZZE12#200304

55368CBRACKET, METER MOUNTING

main55362-12050×2iNZE121,ZZE12#200105-200304

main55368-13020iNZE121,ZZE12#200304

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-13020iNZE121,ZZE12#200105-200304

55440DBOX ASSY, INSTRUMENT PANEL

main55440-13010-B0iNZE121,ZZE124..07S..X200111-200304

main55440-13011-B0iNZE121,ZZE12#..V,X; ZZE12#..SAER200302-200304

DK.GRAY,TRIM0#; DK.GRAY,TRIM1#

55457BSPACER, INSTRUMENT PANEL SAFETY PAD

main55457-13010iNZE121,ZZE12#200304

55536BCOVER, LIGHT CONTROL SWITCH HOLE

main55536-13010-B0iNZE121,ZZE12#..X; ZZE12#..SAER200304-200706

DK.GRAY,TRIM0#,1#; DK.GRAY,TRIM1#

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-13050-B0iNZE121,ZZE12#..V,X; ZZE12#..SAER200105-200304

DK.GRAY,TRIM0#; DK.GRAY,TRIM1#

55549BCOVER, INSTRUMENT PANEL HOLE, NO.2

main55549-13010-B0iNZE121,ZZE12#..V,X; ZZE12#..SAER200105-200304

DK.GRAY,TRIM0#; DK.GRAY,TRIM1#

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-13030-A0iNZE121,ZZE12#..V,X200105-200304

IVORY,TRIM0#

main55607-13030-B0iNZE121,ZZE12#200304-200706

DK.GRAY,TRIM1#

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-13020-B0iNZE121,ZZE12#..V,X; ZZE12#..SAER200105-200304

DK.GRAY,TRIM0#; DK.GRAY,TRIM1#

9010508120

main90105-08120

9015960383

main90159-60383

9015970004

main90159-70004

9018305094

main90183-05094

9018305103

main90183-05103

904670502022

main90467-0502022

9046705020A4

main90467-05020A4

9046705020P1

main90467-05020P1

904670510122

main90467-0510122

9046706089C0

main90467-06089C0

9153560816

main91535-60816

91631J0612

main91631-J0612

9356855014

main93568-55014

9415080600

main94150-80600

9415080800

main94150-80800

33 parts on this diagram · 2 diagrams in section
