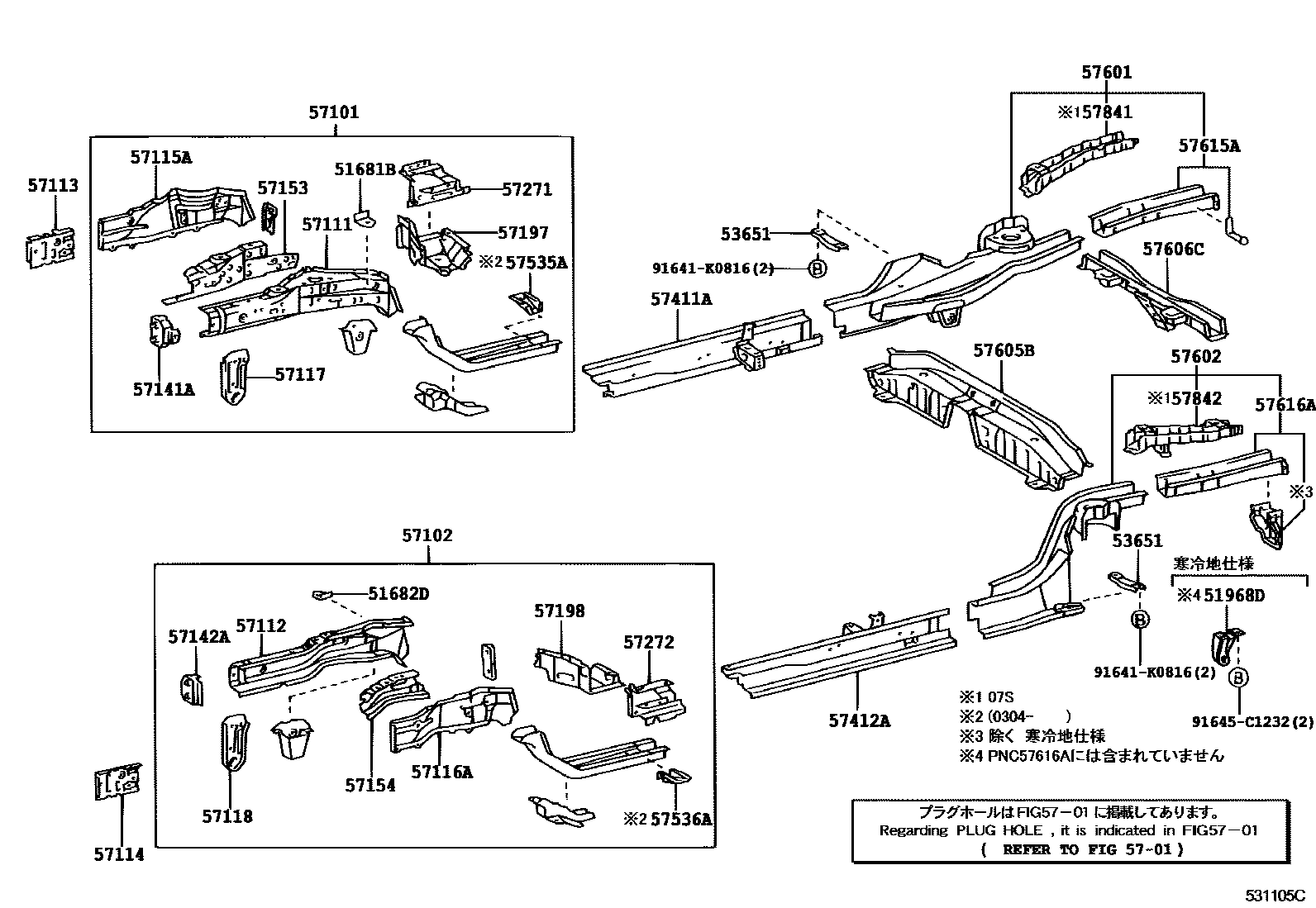

FLOOR SIDE MEMBER

51681BPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH

main51681-32050iNZE121,ZZE12#200304

51682DPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

main51682-32040iNZE121,ZZE12#200105-200304

51968DHOOK, TRANSPORT, REAR LH

main51968-13040iNZE121,ZZE12#200304-200706

53651BRACE, REAR FLOOR SIDE MEMBER

main53651-32010×2iNZE121,ZZE122200105-200304

5701HOLE PLUG

→ Go to FIG 57-01

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-13050iNZE121,ZZE12#200105-200304

main57101-13090iNZE121,ZZE12#200304-200706

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-13070iNZE121,ZZE12#200105-200304

main57102-13110iNZE121,ZZE12#200304-200706

57111MEMBER, FRONT SIDE, RH

main57111-13010iNZE121,ZZE12#200105-200304

57112MEMBER, FRONT SIDE, LH

main57112-13030iNZE121,ZZE12#200105-200304

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-13020iNZE121,ZZE12#200105-200304

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-13020iNZE121,ZZE12#200105-200304

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-12080iNZE121,ZZE12#200105-200304

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-12080iNZE121,ZZE12#200105-200304

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-12130iNZE121,ZZE12#200105-200304

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57118-12130iNZE121,ZZE12#200105-200304

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-12050iNZE121,ZZE12#200105-200304

main57141-12080iNZE121,ZZE12#200304

57142ASUPPORT, FRONT BUMPER ARM, LH

main57142-12060iNZE121,ZZE12#200105-200304

main57142-12090iNZE121,ZZE12#200304

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57016-12080iNZE121,ZZE12#200109-200304

main57016-13020iNZE121,ZZE12#200105-200109

57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH

main57017-12060iNZE121,ZZE12#200105-200304

57197BOX, TORQUE, FRONT RH

main57197-12030iNZE121,ZZE12#200105-200304

57198BOX, TORQUE, FRONT LH

main57198-12030iNZE121,ZZE12#200105-200304

57271EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH

main57271-13020iNZE121,ZZE12#200105-200304

57272EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH

main57272-13020iNZE121,ZZE12#200105-200304

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-13070iNZE121,ZZE12#200105-200304

main57401-13090iNZE121,ZZE12#200606-200706

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-13050iNZE121,ZZE12#200304-200605

main57402-13070iNZE121,ZZE12#200606-200706

57535ABRACE, FRONT FLOOR, RH

main57535-13010iNZE121,ZZE12#200304

57536ABRACE, FRONT FLOOR, LH

main57536-13010iNZE121,ZZE12#200304

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-13460iNZE121,ZZE122..05S200105-200304

main57601-13480iZZE124..07S200108-200304

main57601-13490iZZE124..05S200108-200304

main57601-13540iNZE121,ZZE122200304

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-13450iNZE121,ZZE122..05S200105-200304

main57602-13470iZZE124200304

main57602-13480iZZE124..05S200108-200304

main57602-13490iNZE121,ZZE122..07S200105-200304

main57602-13580iNZE121,ZZE122200304

main57602-13590iZZE124200304

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-13090iNZE121,ZZE122200105-200304

main57605-13100iZZE124200108-200304

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-13130iNZE121,ZZE122200304

main57606-13170iZZE124200108-200304

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-13902iNZE121,ZZE122200304

main57615-13904iNZE121,ZZE122..07S200105-200304

main57615-13906iZZE124..07S200108-200304

main57615-13907iZZE124..05S200108-200304

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-13903iNZE121,ZZE122..05S200105-200304

main57616-13905iNZE121,ZZE122200304

main57616-13907iZZE124..07S200108-200304

main57616-13908iZZE124..05S200108-200304

main57616-13910iNZE121,ZZE122200304

main57616-13911iZZE124200304

57841REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH

main57803-13020iNZE121,ZZE122..07S200105-200304

main57803-13030iZZE124..07S200108-200304

57842REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT LH

main57804-13030iNZE121,ZZE122..07S200105-200304

main57804-13040iZZE124..07S200108-200304

91641K0816

main91641-K0816

91645C1232

main91645-C1232

37 parts on this diagram · 1 diagram in section
