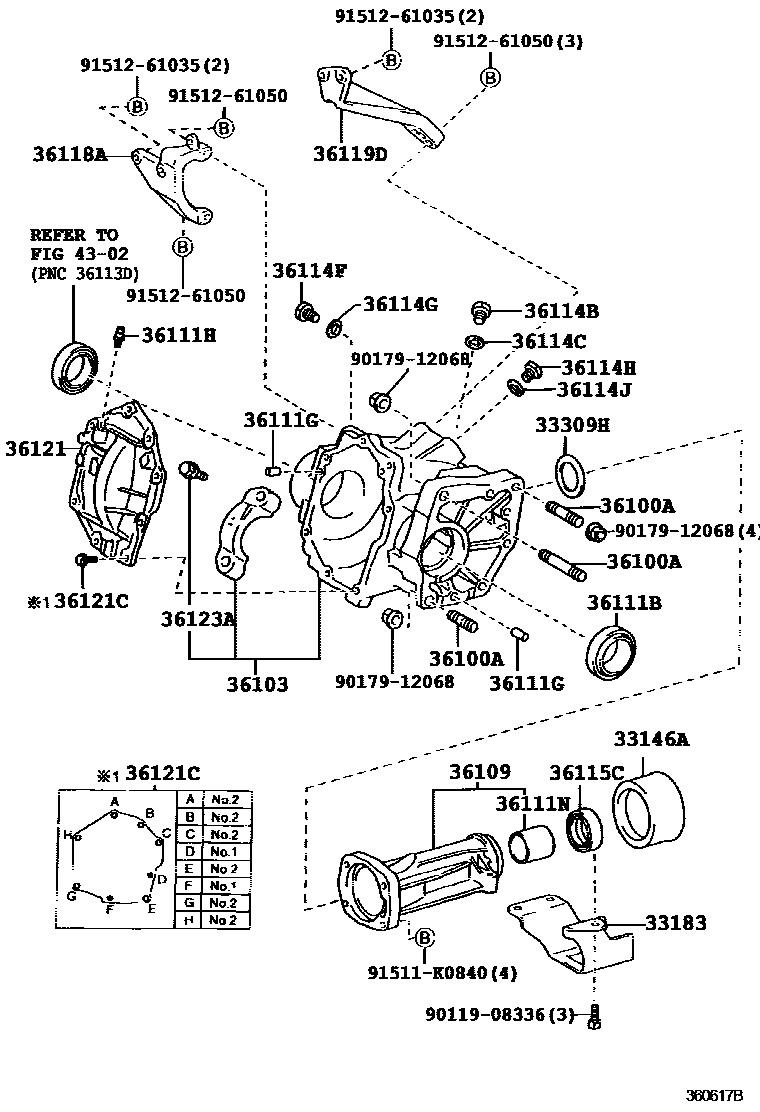

TRANSFER CASE & EXTENSION HOUSING

33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST

main33146-30020iZZE124200108-200304

33183DAMPER, TRANSFER DYNAMIC

main33183-21020iZZE124200108-200304

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-33010iZZE124200304

main36275-33030iZZE124200304

main36275-33050iZZE124200108-200304

main36275-33070iZZE124200304

main36275-33090iZZE124200108-200304

main36275-33110iZZE124200304

main36275-33130iZZE124200304

main36275-33150iZZE124200304

main36275-33170iZZE124200304

main36275-33190iZZE124200108-200304

main36275-33210iZZE124200304

main36275-33230iZZE124200304

main36275-33250iZZE124200108-200304

main36275-33270iZZE124200108-200304

main36275-33290iZZE124200304

main36275-33310iZZE124200108-200304

main36275-33330iZZE124200304

main36275-33350iZZE124200304

main36275-33370iZZE124200304

main36275-33390iZZE124200108-200304

main36275-33410iZZE124200108-200304

main36275-33430iZZE124200304

main36275-33450iZZE124200304

36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)

main90116-12028iZZE124200108-200304

main90116-12034iZZE124200304-200706

main90116-12041×4iZZE124200304-200706

36103CASE SUB-ASSY, TRANSFER

main36103-21010iZZE124200108-200304

36109HOUSING SUB-ASSY, TRANSFER EXTENSION

main36109-33010iZZE124200108-200304

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-49001iZZE124200304

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-08030×2iZZE124200108-200304

main90250-08046×2iZZE124200406

main90250-10017×2iZZE124200108-200304

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90930-03133iZZE124200108-200304

36111NBUSH (FOR TRANSFER CASE)

main90999-73105iZZE124200108-200304

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18045iZZE124200108-200304

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main12157-10010iZZE124200304

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18057iZZE124200108-200304

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main12157-10010iZZE124200108-200304

36114HPLUG, NO.2 (FOR TRANSFER CASE)

main90341-18006iZZE124200108-200304

36114JGASKET, NO.2 (FOR TRANSFER CASE)

main12157-10010iZZE124200108-200304

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-38062iZZE124200108-200304

main90311-38090iZZE124200409

36118APLATE, TRANSFER STIFFENER, RH

main36118-12070iZZE124200108-200304

main36118-12080iZZE124200304

36119DPLATE, TRANSFER STIFFENER, CENTER

main36119-12050iZZE124200108-200304

36121COVER, TRANSFER CASE, NO.1

main36121-52010iZZE124200108-200304

36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)

main90105-08351×2iZZE124200108-200304

main91511-60820×6iZZE124200108-200304

main91511-J0820×6iZZE124200304

36123ABOLT, DIFFERENTIAL BEARING CAP

main41114-16010×2iZZE124200304

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

9011908336

main90119-08336

9017912068

main90179-12068

91511K0840

main91511-K0840

9151261035

main91512-61035

9151261050

main91512-61050

28 parts on this diagram · 1 diagram in section
