TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

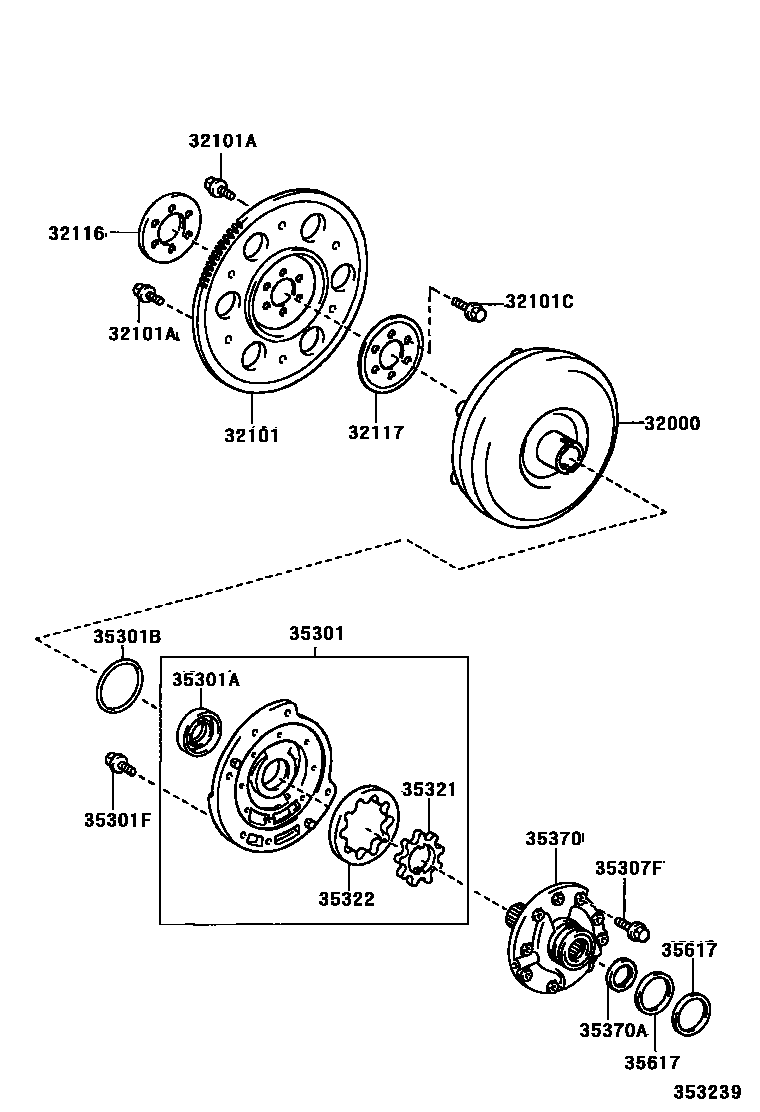

Parts diagram

32000CONVERTER ASSY, TORQUE

main32000-32160i200304-200706

main32000-63010i200304-200612

main32000-63011i200612-200706

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12090i200105-200302

main32101-12091i200302-200304

main32101-52020i200105-200208

main32101-52021i200208-200304

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08107i200105-200304

main90119-08269×5i200105-200304

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×6i200105-200304

32116SPACER, DRIVE PLATE, FRONT

main32116-12020i200304

main32116-52030i200105-200304

32117SPACER, DRIVE PLATE, REAR

main32117-12030i200304

main32117-52030i200105-200304

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-52040i200105-200304

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38064i200209-200304

main90311-38077i200105-200209

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99124i200105-200304

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08301×7i200304

35307FBOLT (FOR STATOR SHAFT)

main90148-60027×10i200105-200304

35321GEAR, FRONT OIL PUMP DRIVE

main35321-52060i200105-200304

main35321-52070i200105-200304

main35321-52080i200105-200304

main35321-52090i200304

main35321-52100i200105-200304

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-52060i200105-200304

main35322-52070i200304

main35322-52080i200105-200304

main35322-52090i200105-200304

main35322-52100i200105-200304

35370SHAFT ASSY, STATOR

main35370-52030i200105-200304

main35370-52070i200601

35370ABEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)

main90374-26003i200105-200304

35617RING, CLUTCH DRUM OIL SEAL

main35613-52010×2i200105-200304

main35613-52020×2i200612

16 parts on this diagram · 1 diagram in section
