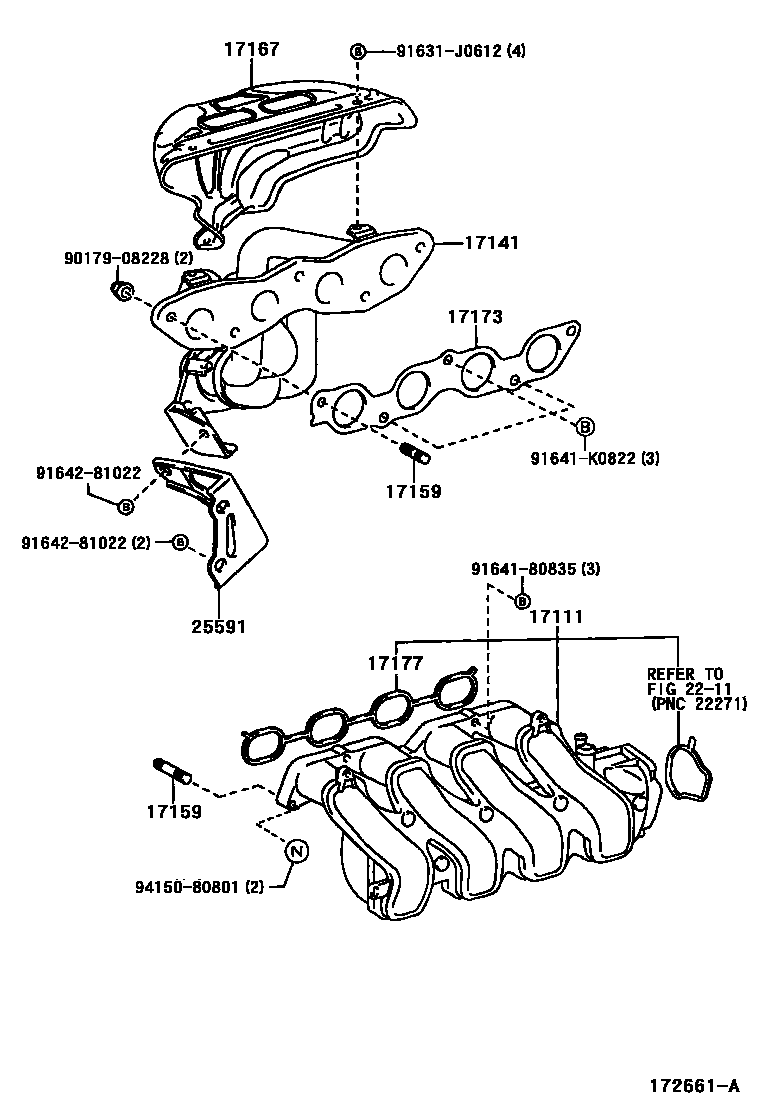

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

17111MANIFOLD, INTAKE

main17101-21050i1NZFE..NZE121200105-200304

main17120-22030i1ZZFE..ZZE12#200105-200304

17141MANIFOLD, EXHAUST

main17104-22050i1ZZFE..ZZE122200105-200304

main17104-22080i1ZZFE..ZZE124200108-200304

main17104-22100i1ZZFE..ZZE122200304

main17104-22110i1ZZFE..ZZE124200304

main17141-21050i1NZFE..NZE121200105-200304

main17141-21090i1NZFE..NZE121200304

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i1NZFE..NZE121; 1ZZFE..ZZE12#200105-200304

main90126-08037×2i1NZFE..NZE121200105-200304

main90126-08043×5i1ZZFE..ZZE12#200304-200706

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-21030i1NZFE..NZE121200105-200304

main17167-21060i1NZFE..NZE121200304

main17167-22040i1ZZFE..ZZE122200105-200304

main17167-22070i1ZZFE..ZZE124200108-200304

main17167-22080i1ZZFE..ZZE122200304

main17167-22090i1ZZFE..ZZE124200304

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-21020i1NZFE..NZE121200304

main17173-22010i1ZZFE..ZZE12#200105-200304

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-22030i1ZZFE..ZZE12#200304

main17177-21020i1NZFE..NZE121200105-200304

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

25591BRACKET, MANIFOLD SUPPORT

main25591-21020i1NZFE..NZE121200304

9017908228

main90179-08228

91631J0612

main91631-J0612

9164180835

main91641-80835

91641K0822

main91641-K0822

9164281022

main91642-81022

9415080801

main94150-80801

14 parts on this diagram · 6 diagrams in section
