CRANKSHAFT & PISTON

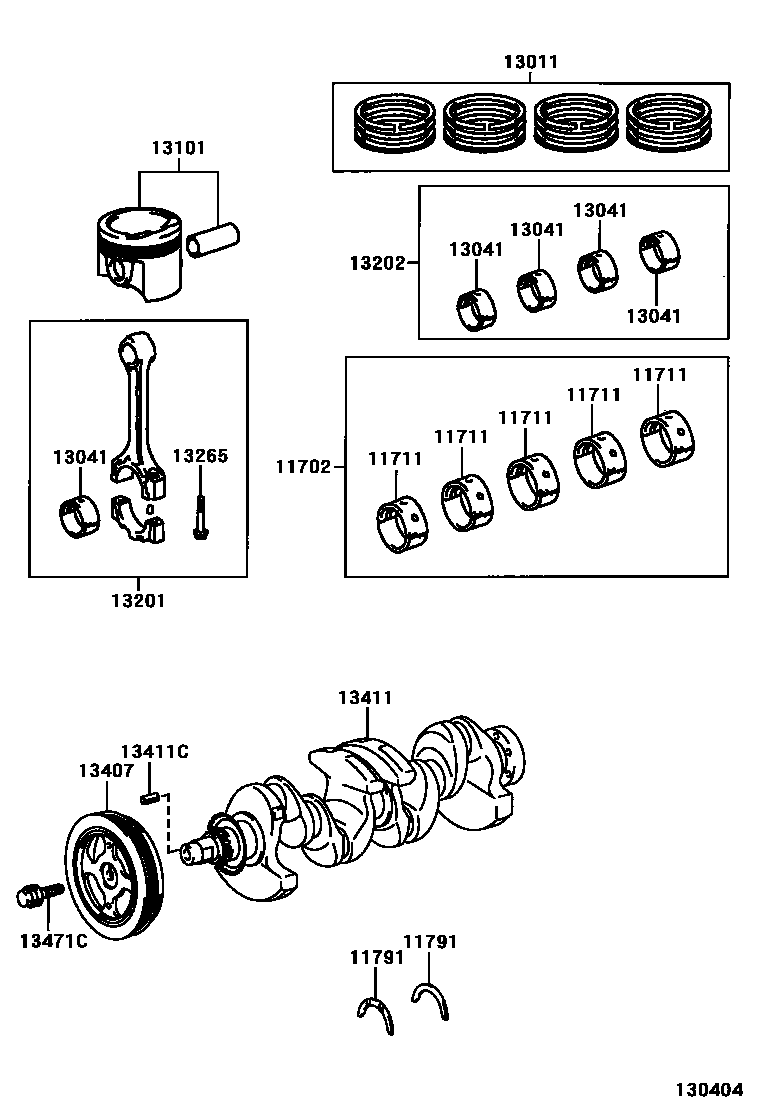

Parts diagram

11702BEARING SET, CRANKSHAFT

main11704-21010i200304-200308

main11704-21031i200408

main11704-21040i200308-200408

main11704-22011i200407

main11704-22030i200105-200304

11711BEARING, CRANKSHAFT

main11701-21010-01×5i200105-200304

main11701-21010-02×5i200105-200304

main11701-21010-03×5i200304-200308

main11701-21010-04×5i200105-200304

main11701-21031-01×5i200408

main11701-21031-02×5i200408

main11701-21031-03×5i200408

main11701-21031-04×5i200408

main11701-21040-01×5i200308-200408

main11701-21040-02×5i200308-200408

main11701-21040-03×5i200308-200408

main11701-21040-04×5i200308-200408

main11701-22010-01×5i200105-200304

main11701-22010-02×5i200304-200407

main11701-22010-03×5i200105-200304

main11701-22010-04×5i200105-200304

main11701-22011-01×5i200407

main11701-22011-02×5i200407

main11701-22011-03×5i200407

main11701-22011-04×5i200407

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-21010×2i200105-200304

main11791-22020×2i200105-200304

main11791-37010×2i200408-200706

main11792-21010×2i200105-200304

main11792-22020×2i200311-200706

main11793-21010×2i200105-200304

main11793-22020×2i200311-200706

13011RING SET, PISTON

main13011-21040i200105-200111

main13011-21041i200111-200304

main13011-22090i200105-200111

main13011-22150i200111-200304

main13011-22160i200304-200408

main13011-22200i200304-200410

main13011-22230i200410-200706

13041BEARING, CONNECTING ROD

main13041-21022-01×4i200408

main13041-21022-02×4i200408

main13041-21022-03×4i200408

main13041-21030-01×4i200105-200304

main13041-21030-02×4i200304-200309

main13041-21030-03×4i200105-200304

main13041-21031-01×4i200309-200408

main13041-21031-02×4i200309-200408

main13041-21031-03×4i200309-200408

main13041-22023-01×4i200304-200405

main13041-22023-02×4i200105-200304

main13041-22023-03×4i200304-200405

main13041-22024-01×4i200405

main13041-22024-02×4i200405

main13041-22024-03×4i200405

13101PISTON SUB-ASSY, W/PIN

main13101-21030×4i200105-200304

main13101-21070×4i200304

main13101-22030×4i200105-200112

main13101-22031×4i200112-200304

main13101-22140×4i200304-200505

main13101-22141×4i200505-200508

main13101-22180×4i200508

13201ROD SUB-ASSY, CONNECTING

main13201-29038×4i200304-200311

main13201-29095×4i200105-200304

main13201-29176×4i200407-200706

main13201-29425×4i200311-200408

main13201-29735×4i200408

13202BEARING SET, CONNECTING ROD

main13204-21022i200408

main13204-21030i200105-200304

main13204-21031i200309-200408

main13204-22023i200105-200304

main13204-22024i200407

13265BOLT, CONNECTING ROD

main13265-21020×8i200105-200304

main13265-22020×8i200105-200304

13407DAMPER SUB-ASSY, CRANKSHAFT

main13407-21030i200105-200304

main13407-21031i200309

13411CRANKSHAFT

main13401-0D050i200501-200706

main13401-21020i200105-200304

main13401-22010i200304-200706

main13401-22020i200105-200304

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90254-03025i200304

13471PULLEY, CRANKSHAFT

main13470-22020i200105-200111

main13470-22021i200111-200304

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-12127i200105-200304

main90119-12345i200105-200304

14 parts on this diagram · 2 diagrams in section
