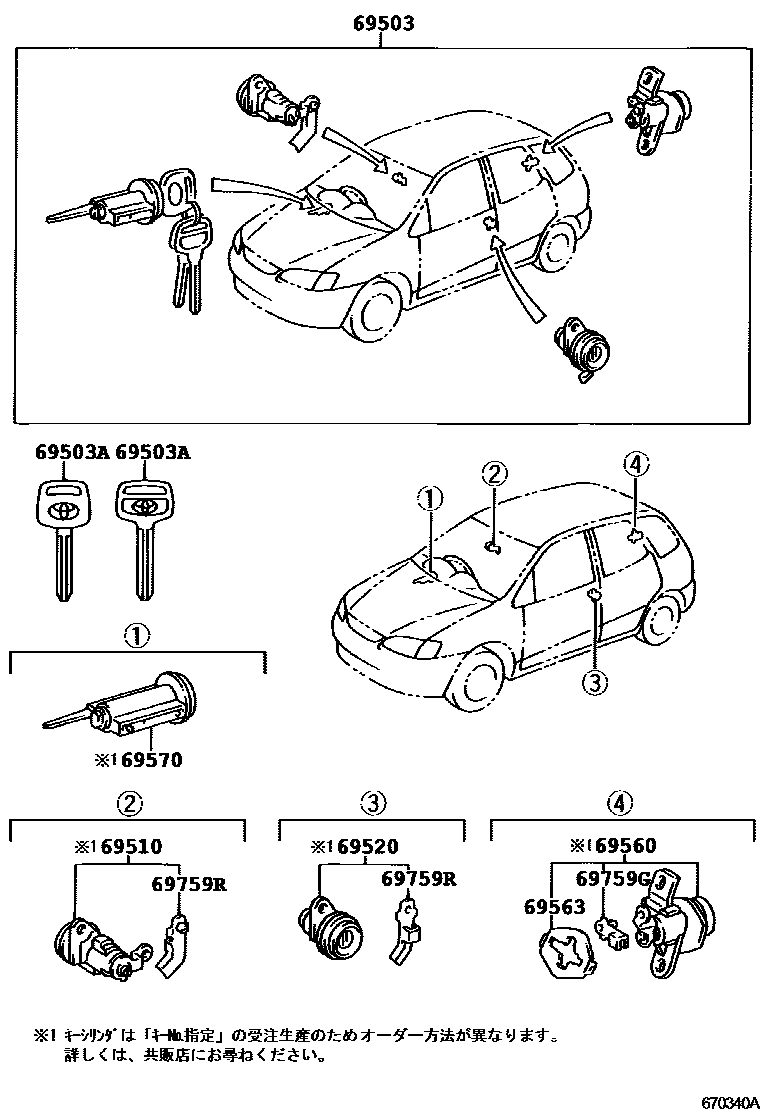

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-13360iAE11#199701-199804

main69005-13510iAE11#..05S..STD199812

CONCEPT BY MIKIHOUSE V *(M)

main69005-13520iAE11#199804-199904

main69005-13540iAE11#..06S199809-199904

CONCEPT BY MIKIHOUSE *(M)

69503AKEY, BLANK

main90999-00185iAE11#199701

main90999-00186×2iAE11#199701

main90999-00237iAE11#..06S199809-199904

main90999-00238iAE11#..06S199809-199904

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-20210iAE11#199701-199805

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-20200iAE11#199701-199805

69560CYLINDER ASSY, BACK DOOR LOCK

main69560-13120iAE11#..06S199809-199904

CONCEPT BY MIKIHOUSE *(M)

69563PAD, BACK DOOR LOCK CYLINDER

main69563-13010iAE11#199701

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-12200iAE11#199804-199904

main69570-12210iAE11#199701-199804

main69570-12220iAE11#..06S199809-199904

CONCEPT BY MIKIHOUSE *(M)

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-20090iAE11#199701

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-12080iAE11#199701

main69759-12090iAE11#199701

9 parts on this diagram · 1 diagram in section
